Nobody wakes up wanting upper control arms. You want them because the alignment shop handed the truck back and said "best I could do," or because there's a clunk over expansion joints that three different mechanics couldn't find.
Both of those are the same problem, and it starts the day you lift an independent front end past about two and a half inches.
What the ball joint is actually doing up there
The upper ball joint lets the knuckle pivot for steering while the control arm swings for suspension travel. It has a designed operating cone — a range of angles it's built to work through, with the joint roughly centered in that cone at ride height.
Lift the front and you rotate the upper arm downward at static ride height. The joint is no longer centered in its cone. It's now sitting near one edge of it and using up the rest of the range on every bump.
Past a certain point the joint hits the end of its travel before the suspension does. That's binding, and binding is what produces the symptoms.
The five symptoms, in the order they show up
- Alignment won't hold spec. Caster comes back low, camber is at the end of adjustment, and the printout has numbers in yellow.
- Highway wander. The truck needs constant small corrections. It doesn't self-center. Feels worse in crosswinds and behind semis.
- Squeak or clunk over small bumps. Small ones specifically — big hits are fine because the joint is moving through its range instead of sitting at the edge of it.
- Uneven inner tire wear. Camber that's out, mile after mile.
- Factory upper ball joints giving up early. The end state. A joint operating at an angle it was never designed for, taking impact loads at the edge of its range.
Most people replace the ball joint, buy a little time, and replace it again before they work out that the angle was the problem all along. Correct the geometry once and you stop paying for that part on a schedule.
Caster: the part that explains the wander
Caster is what makes a steering wheel want to come back to center. It's the same reason a shopping cart wheel trails behind its pivot instead of flopping around.
When you lift an IFS truck, you rotate the whole knuckle assembly and lose positive caster — typically 1 to 3 degrees depending on lift height and geometry. Lose enough and the truck stops self-centering. Now you're steering it constantly instead of just holding the wheel.
Stock upper arms have limited adjustment. Once you're out of shims or eccentric range, the alignment tech is out of options.
A corrected upper control arm moves the ball joint rearward relative to the lower, which adds positive caster back. That's why a UCA install so often fixes a "my truck won't drive straight" complaint that new tires and a $200 alignment didn't touch.
Uniball or ball joint?
Two designs, and the right answer depends on what the truck does.
| Ball joint UCA | Uniball UCA | |
|---|---|---|
| Articulation | Good, defined range | Greater |
| Noise | Quiet | Can click or rattle as it wears |
| Service interval | Long, sealed | Needs periodic inspection and service |
| Salt and mud tolerance | Sealed, better | Exposed race, worse |
| Best for | Daily driven, towing, street | High-travel off-road builds |
For a truck that tows a trailer during the week and sees dirt on weekends, a quality ball joint arm is the right call. Uniballs are the right answer for a desert truck and the wrong answer for a work truck that lives in road salt.
Bushings matter more than the brochure says
The arm pivots on bushings at the frame. Those bushings control how the arm moves through its arc and how much noise and vibration reaches you.
- Rubber: quietest, most compliant, best for daily driving. Wears out.
- Polyurethane: firmer, holds geometry better under load, can squeak if it isn't greased at install. A good middle ground.
- Spherical: zero deflection, transmits everything. Race hardware.
If your stock arms are otherwise fine and the truck is only mildly leveled, a bushing kit is a fraction of the cost of new arms and fixes a lot of vague-steering complaints on high-mileage trucks.
Do you actually need them?
Under 2 in of front lift: no. Get the alignment and drive it.
2–2.5 in: probably not, unless the alignment shop can't hit caster spec or you're hearing the small-bump clunk.
2.5–3 in: this is the line. If you're running 35s and the truck wanders, this is your fix.
3 in and up: yes. Not optional. You are operating the ball joint outside its cone and it will let you know.
Any lift, if the truck already wanders: yes, and check the track bar and tie rods while you're at it.
Install notes people learn the hard way
- Torque the bushings at ride height, not with the suspension hanging. Tighten a bushing with the arm drooped and you've preloaded it in the wrong position for the truck's entire life. Set the truck down on the wheels first, then final-torque.
- Grease poly bushings at install. All contact surfaces. Skipping this is the entire cause of the "poly bushings squeak" reputation.
- Alignment afterward. Always. You just changed the geometry on purpose — now go set it.
- Check tire and coil clearance at full lock. Do it in the driveway, not at 60 mph.
Arms and bushings that bolt on
- GM HD 2500/3500 — 2011–2019 UCA system and bushings
- GM HD 2500/3500 — 2020–2026 UCA system
- GM HD 2500/3500 — 2001–2010 bushing kit

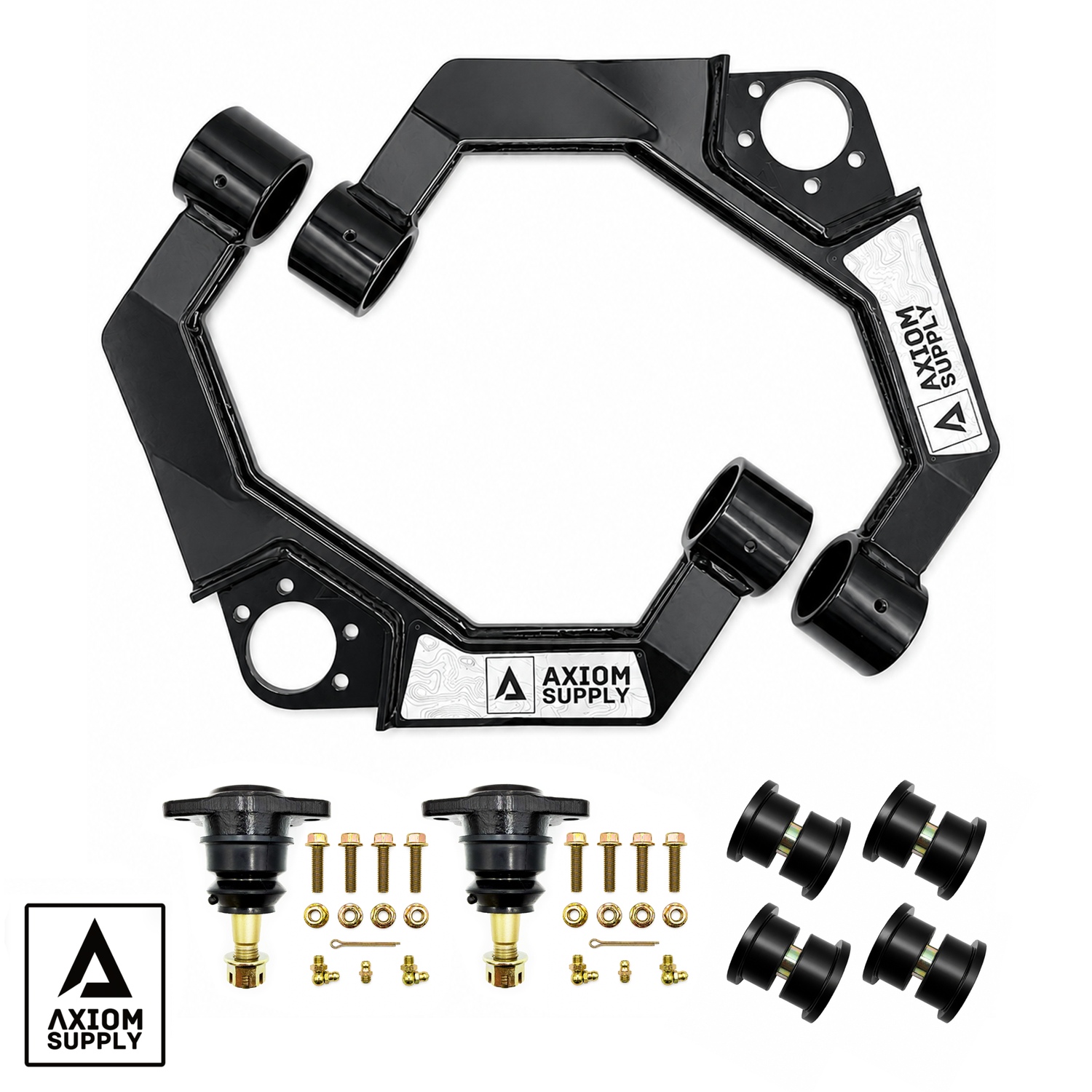

Our Upper Control Arm Systems are engineered for GM HD trucks that need improved suspension geometry, increased wheel travel and enhanced alignment capability — designed for stock, leveled and lifted applications, and compatible with most aftermarket suspension using the factory-style upper mounting locations. Construction is true double-shear: identical upper and lower 3/16" steel plates, precision laser cut.
One fitment note worth knowing before you order: tires wider than 11.50" may contact the control arm on certain factory wheel configurations, so additional wheel offset may be required depending on your wheel and tire combination.
If you haven't lifted yet, read what leveling and lifting actually change underneath first. It's cheaper to plan for the arms than to discover you need them.
