Everyone explains the difference the same way: a leveling kit raises the front, a lift kit raises both ends. True, and almost useless, because it tells you nothing about what you're actually signing up for.
What you're buying is geometry. Height is the part you can see. Everything underneath — ball joint angle, CV angle, caster, brake line length, steering feel, how long your hubs last — changes with it. Here's the honest version.
The one-line version
- Leveling kit: 1.5–2.5 in of front lift to kill the factory rake. Cheap, fast, and mostly harmless if you stay under about 2 in and get an alignment.
- Lift kit: 4 in and up at both ends. Replaces or relocates suspension components instead of just preloading them. Real money, real capability, real consequences.
- The gap between them (2.5–3.5 in): where most people get in trouble, because they're using leveling-kit hardware to do lift-kit work.
Why trucks have rake in the first place
The factory builds the rear higher than the front on purpose. Rear springs are specced to carry payload, so an empty truck sits nose-down. Load a ton of gravel and it levels out.
A leveling kit erases that design margin at the front only. It doesn't reduce your payload — but it does mean the truck sits level empty and squats visibly loaded.
What actually changes underneath
| Component | Level (1.5–2.5 in) | Lift (4 in+) |
|---|---|---|
| Upper ball joint angle | Steeper — usually still in range | Out of range without corrected UCAs |
| CV axle angle (IFS) | Steeper, more heat in the joint | Requires diff drop or new knuckles |
| Caster | Drops 0.5–1.5° — steering gets vague | Drops significantly, needs correction |
| Camber | Goes positive, needs alignment | Often out of adjustment range |
| Down-travel | Reduced — shocks can top out | Restored by longer shocks |
| Brake lines / ABS harness | Usually fine | Extensions required |
| Wheel bearing load | Slightly up, mostly from tire size | Up meaningfully |
| Track width | Marginally wider | Wider, plus offset changes |
Notice how many rows say "needs alignment." That is the actual cost of a leveling kit and it's the line people skip.
The three ways to level a front end
They are not equivalent, and the internet talks about them as if they are.
Torsion keys (GM HD, older GM 1500)
Re-index the torsion bar so it holds the truck higher at the same bar twist. Done right with a proper key, this is the cleanest way to level a torsion-bar truck — you're not cranking the stock key past its design range, you're starting from a new position.
Done wrong — by just cranking the factory bolts — you preload the bar, ride quality goes to concrete, and down-travel disappears.
Strut spacers / coil spacers
A puck between the strut and the frame, or under the coil. Simple, cheap, effective. The catch is that it raises the truck without adding shock travel, so the strut is closer to full extension at ride height. Add a shock extension where the platform needs one.
Preloaded coilovers
Winding up the collar on a coilover to gain height. This one people love and it's the worst of the three — you're trading spring travel for ride height and stiffening the ride at the same time.
When you need upper control arms
Around 2.5–3 in of front lift on an IFS truck, the upper ball joint starts running at an angle it was never designed for. Symptoms: a squeak or clunk over small bumps, an alignment shop that can't get caster into spec, and highway wander that no amount of tire balancing fixes.
Corrected UCAs relocate the ball joint to put the angle back where it belongs and hand you back the caster you lost. We wrote a whole piece on when a lift stops being an alignment problem and starts being a ball joint problem.
Tire size: the real reason you're doing this
Most people don't want height. They want to fit a bigger tire.
| Front lift | Typical tire that clears |
|---|---|
| Stock | 33s on many HD platforms |
| 1.5–2 in level | 33–35 in with proper offset |
| 2.5–3 in | 35 in comfortably |
| 4–6 in lift | 37 in, often with trimming |
Offset matters as much as height. Push the wheel out to clear and you've added load to the bearing — see why hubs die early. Run the least negative offset that clears.
What it costs, honestly
- Level: $70–$160 for the kit, plus an alignment, plus possibly shock extensions. Call it a Saturday and under $300 all-in if you do the work.
- Level plus tires: the tires cost more than everything else combined.
- Lift: kit, shocks, UCAs, brake lines, driveshaft work on some trucks, alignment, and a real chance of a driveline vibration you have to chase. Four figures before tires.
Which one you actually want
Level it if: you want the rake gone and a modest tire upgrade, you tow, and you'd like the truck to still drive like a truck. This covers about 80% of people who think they want a lift.
Lift it if: you need real ground clearance for terrain, you're running 37s or bigger, and you accept that you're rebuilding the front end's geometry rather than nudging it.
If the truck's job is towing at capacity, put the budget into damping and drivetrain rather than height — the right shocks and a set of heavy-duty hubs will change how that truck drives with a trailer far more than two inches ever will.
Kits that bolt on

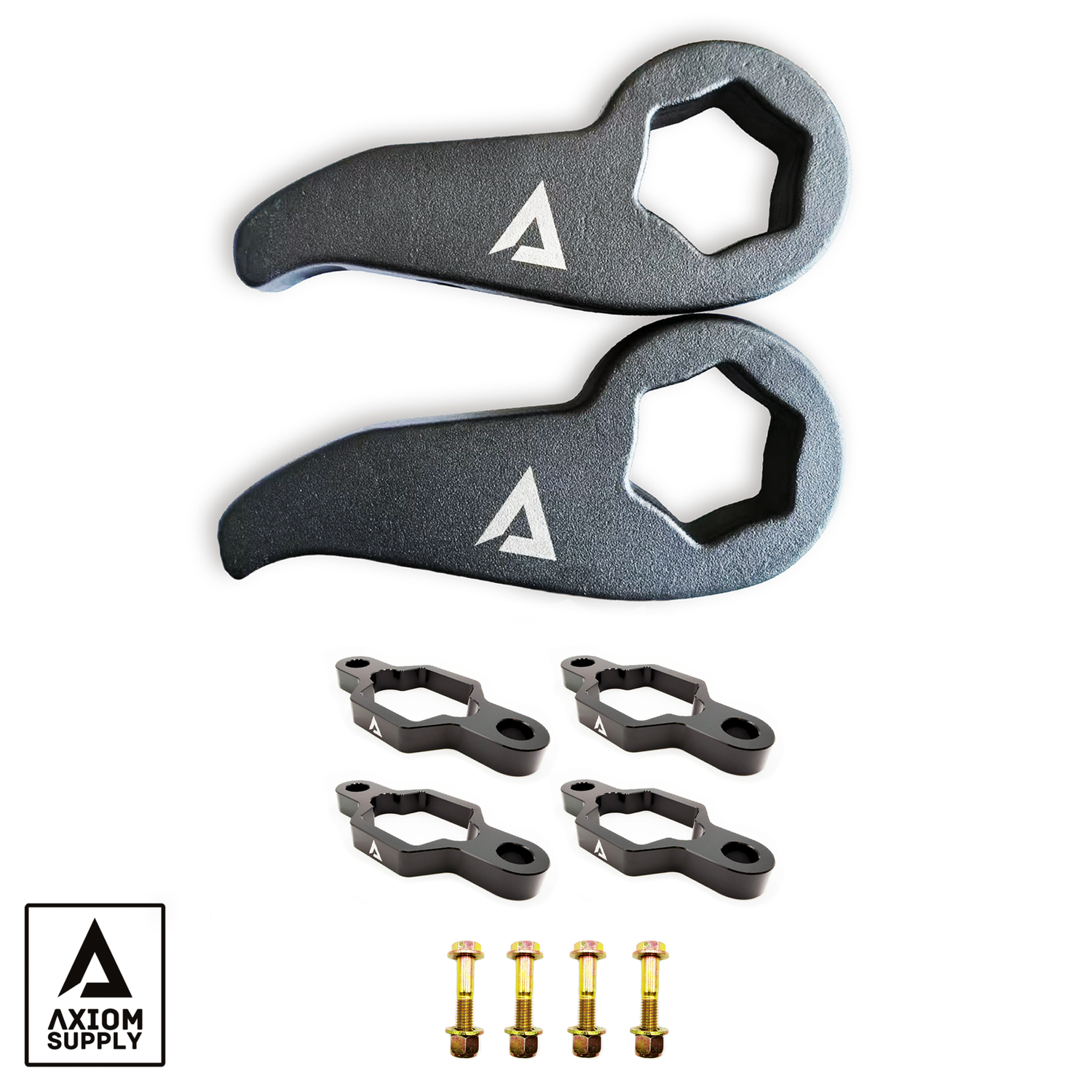

- GM HD 2500/3500 — leveling kits, keys and UCAs

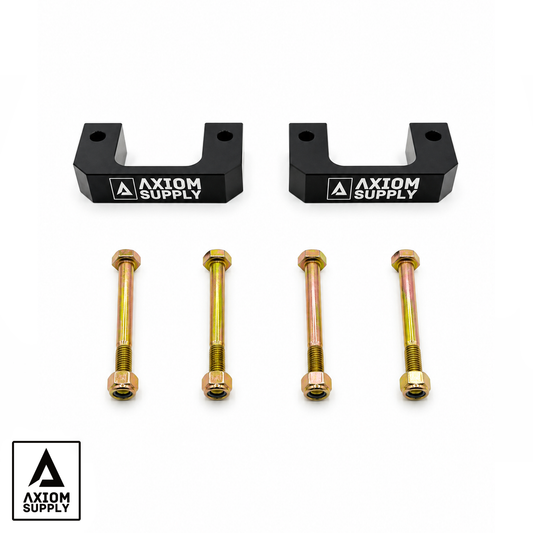

- GM 1500 6-lug — Stage 1 leveling
- Ford Super Duty — coil spacers and shocks
Every kit on this site is filtered by fitment. Run your year, make and model through the search bar and you'll only see what bolts to your truck — and then read what each leveling method costs you before you pick one.
