There are four ways to order the wrong front hub for a Super Duty, and three of them look identical in a photo. Year range, thread pitch, drive type, and whether somebody already swapped your knuckles. Get all four right and the part bolts on in an afternoon.
Here's the decision tree we use when a customer calls with a VIN and a noise.
The short version
| Model years | Front axle | What to watch for |
|---|---|---|
| 1999–2004 | Dana 50 / Dana 60 | Coarse vs fine thread studs — two different parts |
| 2005–2010 | Dana 60 | Larger unit bearing, different bolt pattern to the knuckle |
| 2011–2016 | Dana 60 | Revised ABS sensor integration |
| 2017–2022 | Dana 60 | Again revised — will not interchange with 2011–2016 |
| 2023–2026 | Dana 60 | Current generation, check ball joint style too |
Every one of those breaks is a real engineering change, not a catalog convenience. The parts do not swap.
1. The 1999–2004 thread trap
This is the one that catches people. Early Super Duty front hubs came with two different wheel stud thread pitches, and the year alone will not tell you which one you have.
You need to look. Pull a lug nut off and count threads, or measure the stud. If you have the old lug nuts, the thread pitch is stamped or measurable directly — and if somebody has already replaced studs at some point in the truck's life, the truck may not match what the factory shipped.
Order the wrong one and the hub physically bolts to the knuckle. You just can't put your wheels back on. That discovery happens at the worst possible moment, with the truck on stands.
Rule: on a 1999–2004, verify the thread before you order. Every time.
2. 2WD trucks are a different animal
A 2WD Super Duty has no CV axle, no locking hub, and a completely different front bearing arrangement. If someone hands you a part number for a 4WD hub and your truck is a single-rear-wheel 2WD, none of the year ranges above apply to you.
Check the sticker in the door jamb or look under the truck. If there's a differential up front, you're 4WD.
3. Dually vs single rear wheel
The rear is obviously different. The front usually isn't, on the bearing itself — but F-450 and F-550 chassis diverge, and a dually F-350 and an F-450 are not the same truck underneath even in the same model year.
If your truck has a badge with a 4 or a 5 in it, confirm before ordering.
4. Somebody already changed something
Used trucks are archaeology. Common finds:
- Knuckles swapped from another year during a repair or a rebuild
- Manual locking hub conversions on trucks that came with auto hubs
- Studs replaced with a different pitch or length for aftermarket wheels
- A previous owner's "close enough" hub that has been grinding for two years
If the truck is new to you and the part numbers don't match what the year should be, believe the truck, not the catalog.
Torque specs worth writing on the fender
Super Duty front ends have more torque-critical fasteners than most. These are the numbers people get wrong:
| Fastener | Spec | Note |
|---|---|---|
| Wheel bearing adjuster (inner) nut | 50 lb-ft while rotating the hub | Then back off per the procedure — this seats the bearing |
| Adjuster nut, final — auto hubs | 35 lb-ft, then back off 3/8 turn | Different from manual hubs |
| Adjuster nut, final — manual hubs | 50 lb-ft, then back off just to free | |
| Bearing lock (outer) nut | 160 lb-ft | |
| Axle shaft to full-floating hub bolts | 115 lb-ft | Rear |
Target end play after adjustment is roughly 0.001–0.010 in, and rolling torque on the hub and rotor should stay under about 20 in-lb. Verify against your service manual for your exact year — Ford revised this procedure more than once.
Skipping the rotate-while-torquing step is the most common mistake. It's what seats the rollers evenly. Torque it static and the preload is a guess.
How to know for certain before you buy
Three ways, in order of how much we trust them:
- Pull the old part and read it. Nothing beats the number cast or stamped on the hub you're replacing.
- Run the year, make and model through the fitment search at the top of any page on this site. It filters to what actually bolts on for your platform — a wrong part won't even appear.
- Call us with the VIN. Faster than a forum thread and we'll tell you if there's a known split in your year.

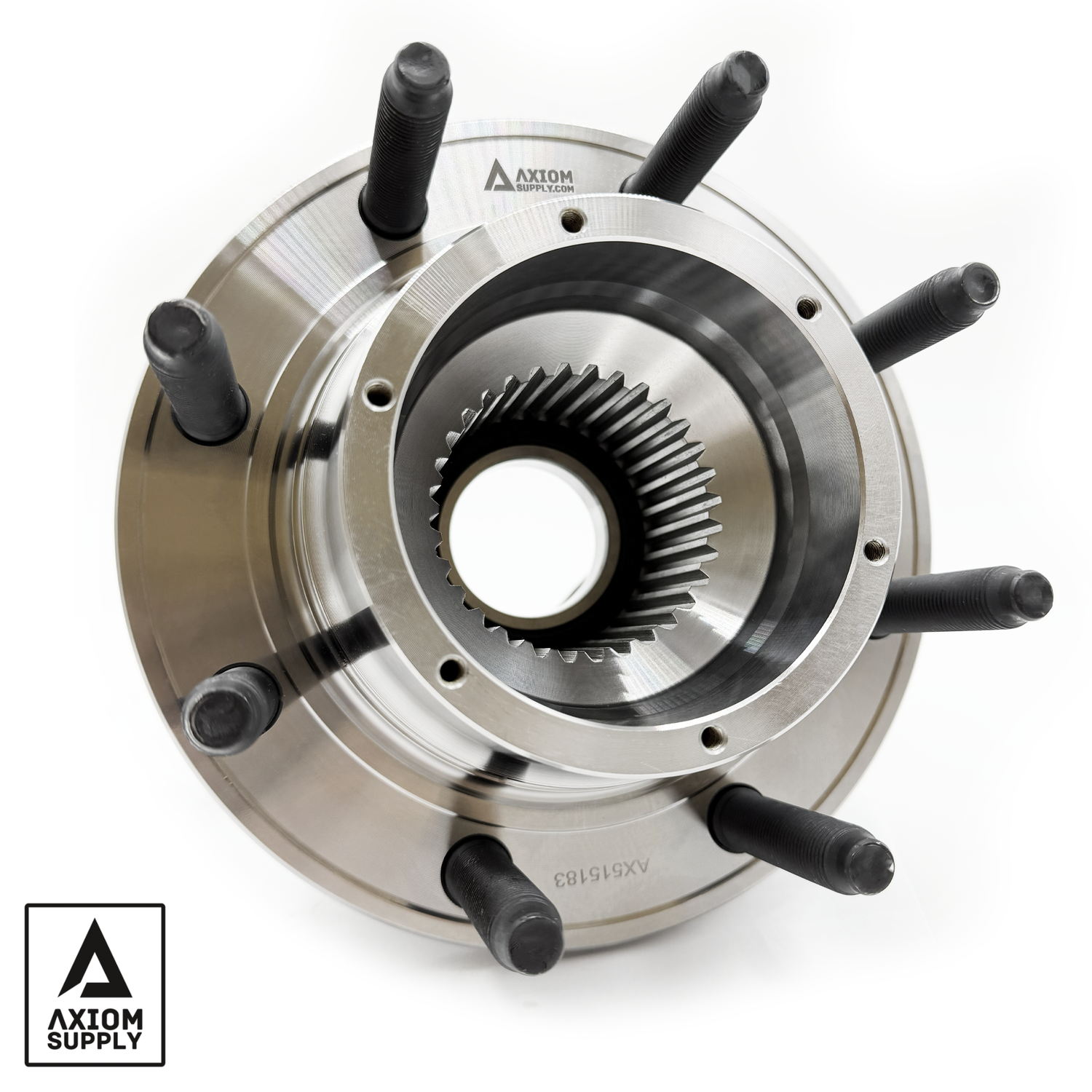

Super Duty hubs and front-end parts
Our Super Duty hubs are built for trucks that work: precision tapered roller bearings running high-performance grease for maintenance-free operation, Grade 10.9 cold-formed zinc-plated studs for tensile strength and corrosion protection, and a durable ABS sensor built to hold signal in heat, mud and moisture — and warrantied for as long as you own it. Backed by our lifetime warranty: suspension and steering components are warrantied for life to the original purchaser against manufacturer defects, premature wear or breakage — no time limit, no mileage limit, and replacement parts ship free in the lower 48. Full warranty terms.
Hearing a noise and not certain it's the bearing yet? Work through the driveway test first — it takes sixty seconds and it rules out the parts that mimic a bad hub.
