Every noise a CV axle makes tells you something different. Click, clunk, vibration, and shudder are four separate failures, and knowing which one you have decides whether you're driving on it for another month or parking it tonight.
Here's the decoder.
Click on turns → outer joint
The classic. Rhythmic clicking that speeds up with wheel speed, worst at full lock in a parking lot, quiet or absent when you're driving straight.
That's the outer CV joint. The cage and balls have worn enough that the joint knocks as it articulates. It shows up on turns because that's when the joint is running at its steepest angle.
Nine times out of ten the boot is torn. Grease slung all over the inside of the wheel well is the confirmation.
How long do you have? Weeks to months if it only clicks on hard lock. Once it clicks going straight, the joint is metal-on-metal and it can come apart. Then you're not driving anywhere.
Clunk on throttle transitions → inner joint
A single dull clunk when you go from coast to throttle, or from drive to reverse. Not rhythmic, not tied to steering angle.
That's the inner joint — a plunge joint that has to slide in and out as the suspension moves. When the tripod bearings and their races wear, you get lash, and lash makes a clunk every time torque reverses.
Be careful here, because U-joints, worn differential spider gears, a bad transmission mount, and a slop-worn transfer case chain all make similar clunks. Get under it and check for play by hand before you buy an axle.
Vibration that increases with speed → balance or angle
A CV axle can vibrate for two reasons: it's out of balance (bent shaft, missing balance weight, or a rebuilt axle assembled wrong) or it's running at an angle that's too steep.
The angle problem is a lift problem. Raise an IFS truck and the inner joint operates at a steeper angle at ride height. Steeper angle means more internal velocity fluctuation, more heat, and less joint life. On heavily lifted trucks this is why a diff drop kit exists.
If the vibration appeared right after a lift or a level, the axle isn't defective — the geometry is. See what lift changes underneath.
Shudder under acceleration from a stop → binding inner joint
The truck shakes as you pull away, then smooths out above 15 mph. That's an inner joint that's binding instead of plunging — usually contaminated grease that has hardened, or a tripod that has worn a step in its race.
This one gets misdiagnosed as a transmission problem constantly.
The boot is the whole story
Almost every CV failure starts as a torn boot. The boot holds the grease in and the grit out. Tear it, and grease flies out within a few hundred miles while sand and water go in.
From there the clock is short. A joint that's run dry for a thousand miles is scrap even if it isn't noisy yet — the hardened surface is already gone.
So: check your boots. Turn the wheel to full lock and look at the outer boot with a flashlight. Cracked and weeping is early. Split with grease slung around it means the joint is on borrowed time.
Reboot or replace?
Honest answer: on a truck, replace the assembly.
Rebooting makes sense if you catch the tear in the first few hundred miles and the joint still feels tight. Beyond that you're doing all the labor of an axle replacement to save the price of the shaft, and you're reusing a joint that has already eaten grit.
A complete assembly comes balanced, with fresh joints, fresh grease and new boots on both ends. Same install time. The math isn't close.
What kills CV axles on trucks specifically
- Lift angle. Every degree of extra operating angle is more heat.
- Big tires. More torque through the same joint.
- Cheap replacement axles. Undersized cages, low-grade shafts and thin boot rubber that splits in one winter.
- Reusing flange bolts. Many are torque-to-yield or thread-locked from the factory. Reused bolts back out, the flange wallows, and now you have a vibration and a much bigger repair. Use a fresh flange bolt set — they're under $15.
- Water crossings. Same story as wheel bearings: hot joint, cold water, contaminated grease.
Install notes
- New axle nut every time. Torque to spec with a wrench, not an impact.
- New flange bolts, torqued in a cross pattern.
- Seat the inner stub fully — on many trucks you should feel or hear the clip engage.
- Turn the wheel lock to lock before you lower the truck and confirm nothing contacts the boot.
- Check the boot clamps. A loose clamp will sling grease and you'll be doing this again.

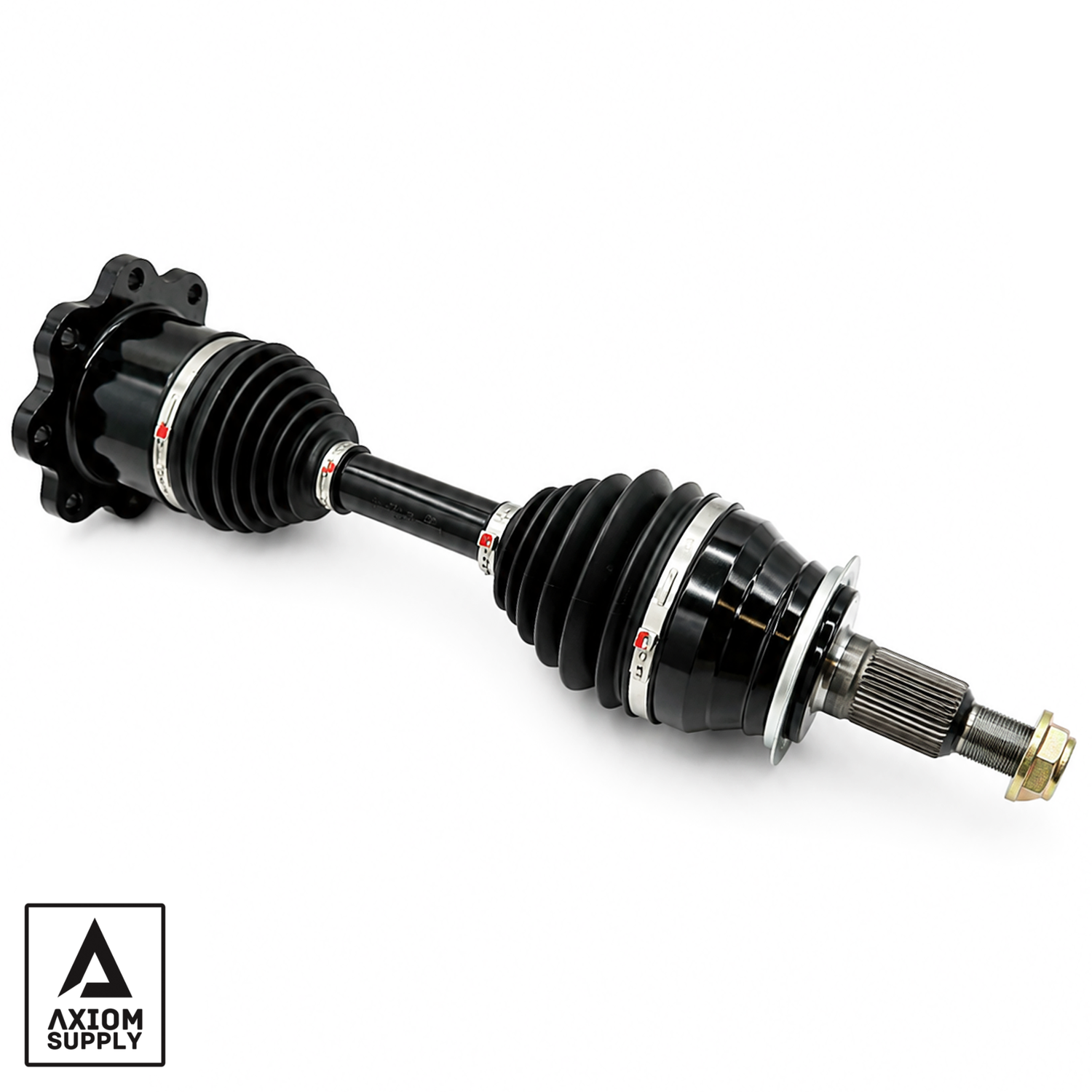

Reaper Series CV axles
Our Reaper Series CV axle assemblies are manufactured with the highest-grade materials for strength and longevity in demanding conditions, and engineered to exceed OEM durability standards. An advanced e-coated finish resists salt, moisture and road debris year after year, and the advanced TPE boot technology is built to hold up where standard boot material splits. Complete assemblies, ready to bolt in, and backed by Axiom Supply's true lifetime warranty — see the terms.
Not sure whether the noise is the axle or the hub? Work through the driveway test — clicking and humming come from different parts, and the test separates them in about a minute.
