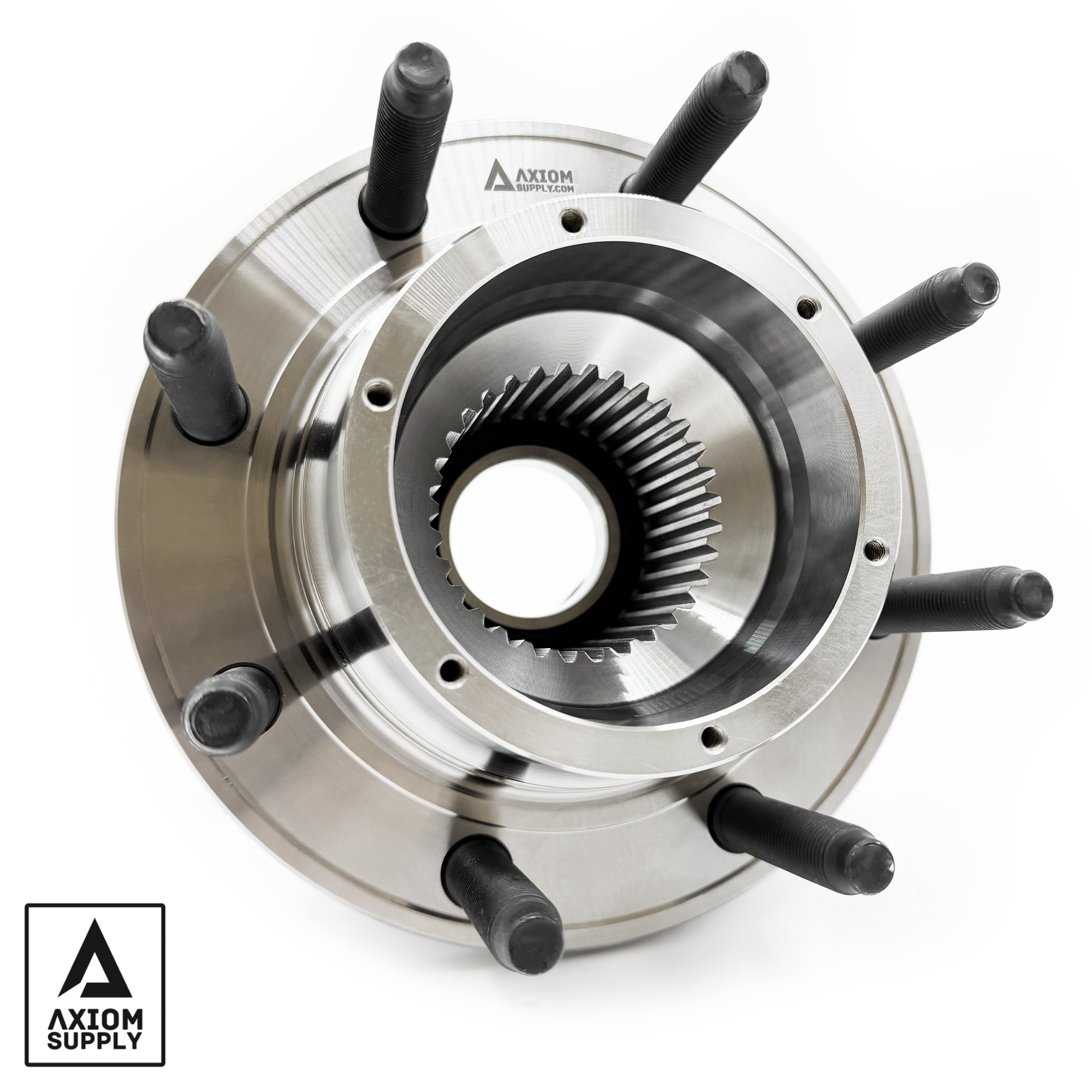

Axiom Supply Lifetime Warranty Wheel Bearing Assembly Ford F250-F350 4WD 2011-2016

Fitment

This wheel bearing assembly is designed to fit a range of vehicles including Ford Super Duty Pick Up F250-F350 4WD 2011-2016 SRW ONLY

Features

Precision Tapered Roller Bearings – Engineered with high-performance grease for smooth, maintenance-free operation.

Premium Hardware – Grade 10.9 cold-formed, zinc-plated studs deliver exceptional tensile strength and corrosion protection.

Durable ABS Sensor – Built to maintain accurate signal transmission in heat, mud, and moisture.

Configuration – 8 × M14-1.5 Fine Thread lug studs.

Description

The Axiom Supply Bearing Assembly is built for professionals who demand reliability from their heavy-duty trucks.

Developed with a proprietary bearing and hub structure, this assembly reduces hub-face deflection under load—ensuring tighter steering response, improved braking stability, and enhanced durability even under the stress of towing, oversized tires, or lifted suspension setups.

Each assembly comes as a complete bolt-in unit, compatible with both left and right spindles. Installation typically takes about 2 hours and requires no special modifications.

Whether your truck works hard on the job site or conquers rough terrain on weekends, Axiom Supply bearing assemblies deliver the strength, precision, and longevity serious truck owners rely on.

Includes

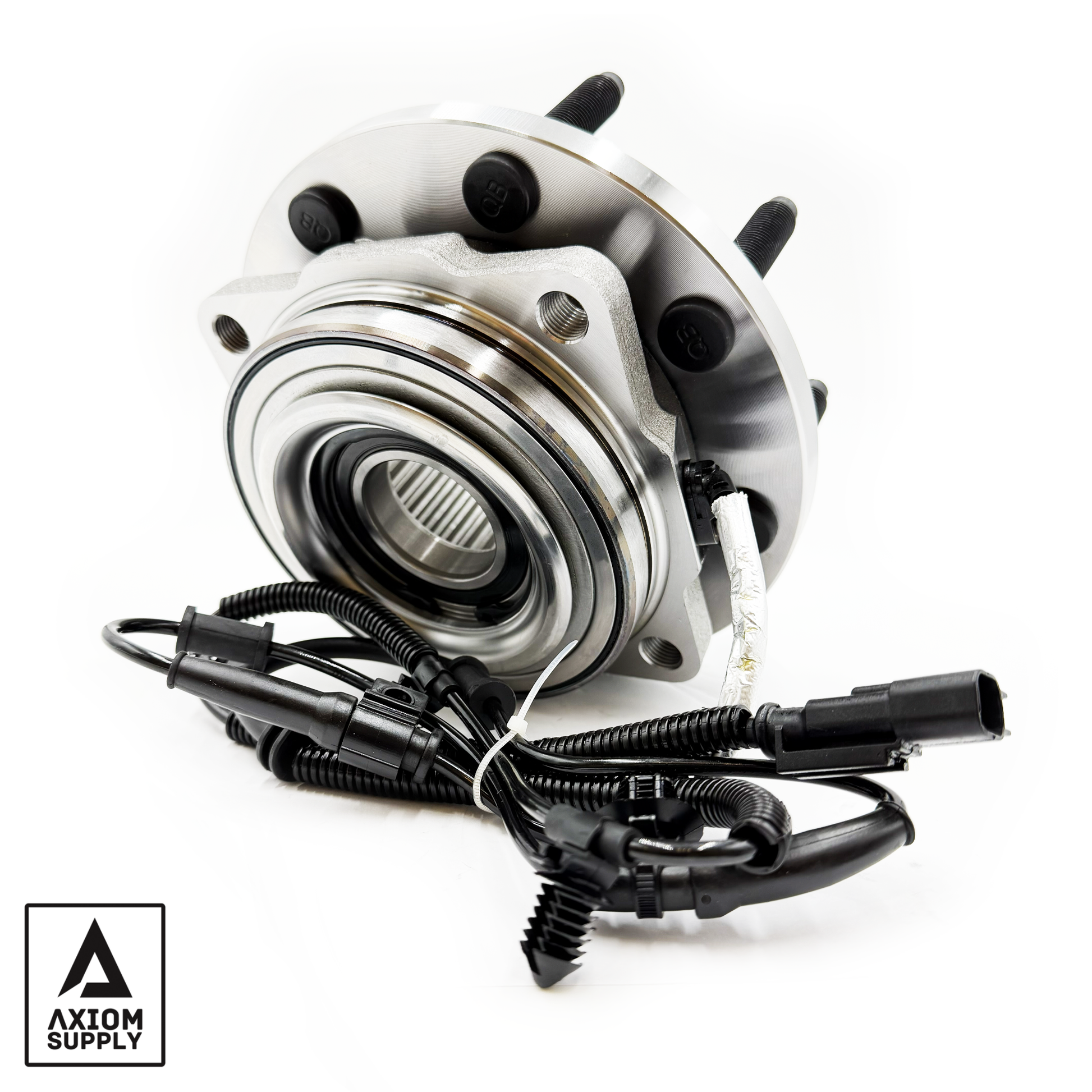

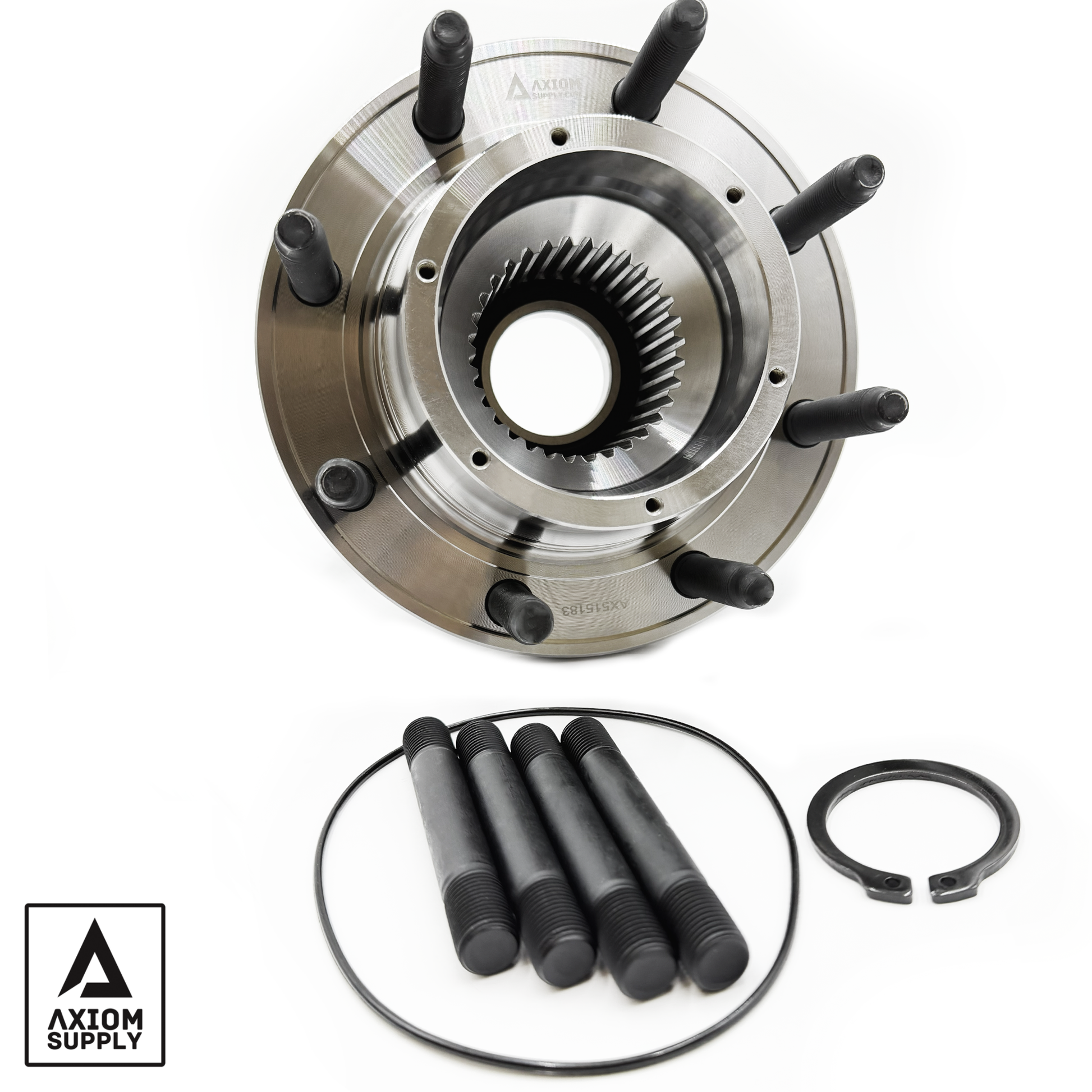

(1) Wheel Bearing & Hub Assembly with integrated ABS wire and (4) Mounting Bolts (1) O-ring (1) Retainer Ring

Torque Specifications

Secure the hub nut by tightening it to 21 ft-lbs (28 Nm) while rotating the wheel clockwise. Then, loosen it by 180 degrees. Next, with the brake disc turning, tighten the nut to 17 ft-lbs (2 Nm).

Spindle Bolts(4)- 133 lb.ft

Caliper Bolts(2)- 166 lb.ft

Interchange

Timken HA590435, Doc's DH515130, Kryptonite KR435, Autopart International 1411-480978, BCA WE60626, Carquest 94-480978, Centric Parts 40265035, Durago 29515130, FAG US 102244, Ford DC3Z 1104 J, DC3Z1104A, GMB 725-3060, GSP 116130, Mevotech MB40306, G40306, Moog Hub Assemblies 515130, Motorcraft HUB212, HUB327, HUB402, PT515130, BC3Z1109D, DC3Z1104A, NAPA PBR930793, SKF BR930793, Axiom AX515130
