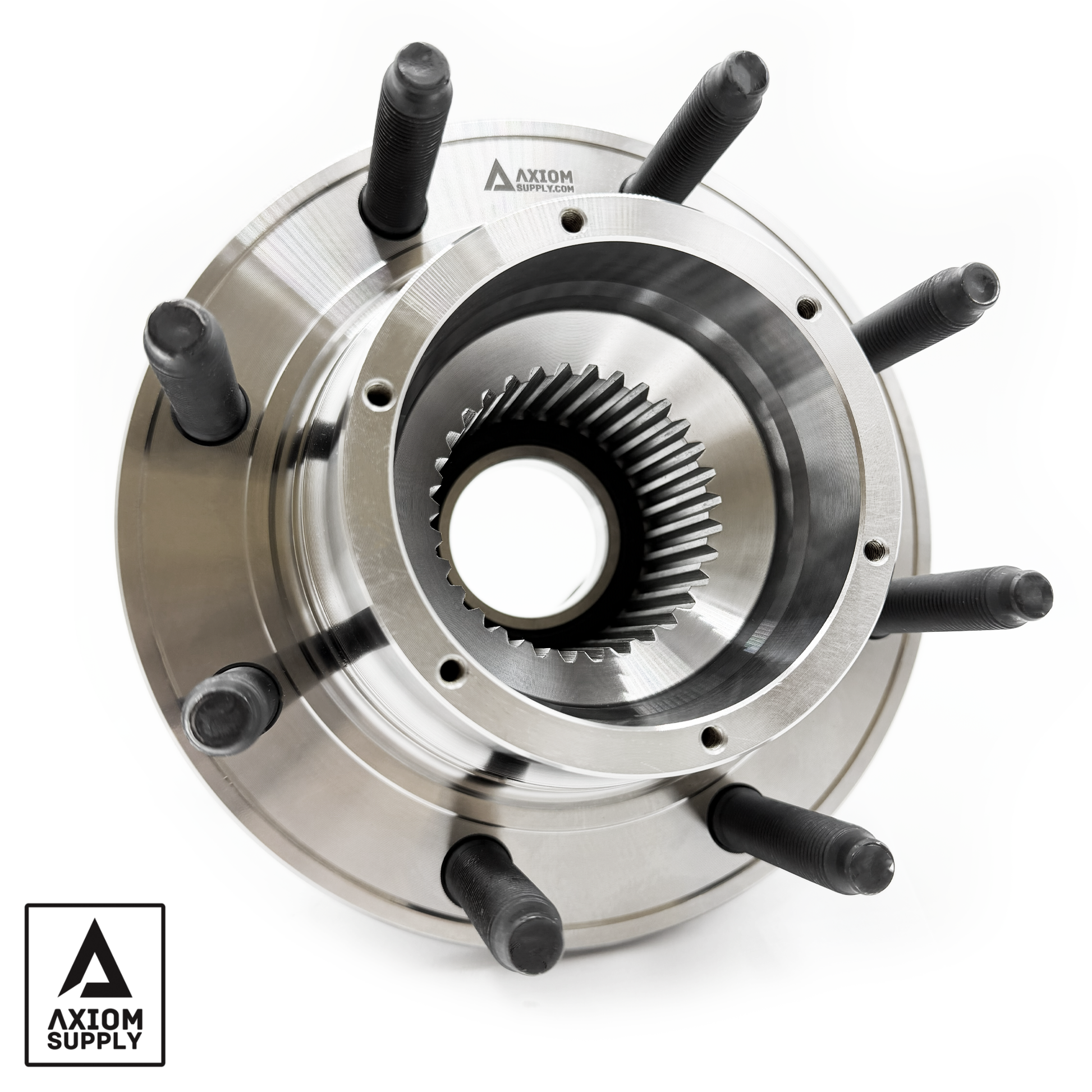

Axiom Supply Lifetime Warranty Wheel Bearing Assembly Ford F250-F350 4WD 2005-2010

Fitment

This wheel bearing assembly is designed to fit a range of vehicles including Ford Super Duty Pick Up F250-F350 4WD 2005-2010 SRW ONLY

Features

Precision Tapered Roller Bearings – Engineered with high-performance grease for smooth, maintenance-free operation.

Premium Hardware – Grade 10.9 cold-formed, zinc-plated studs deliver exceptional tensile strength and corrosion protection.

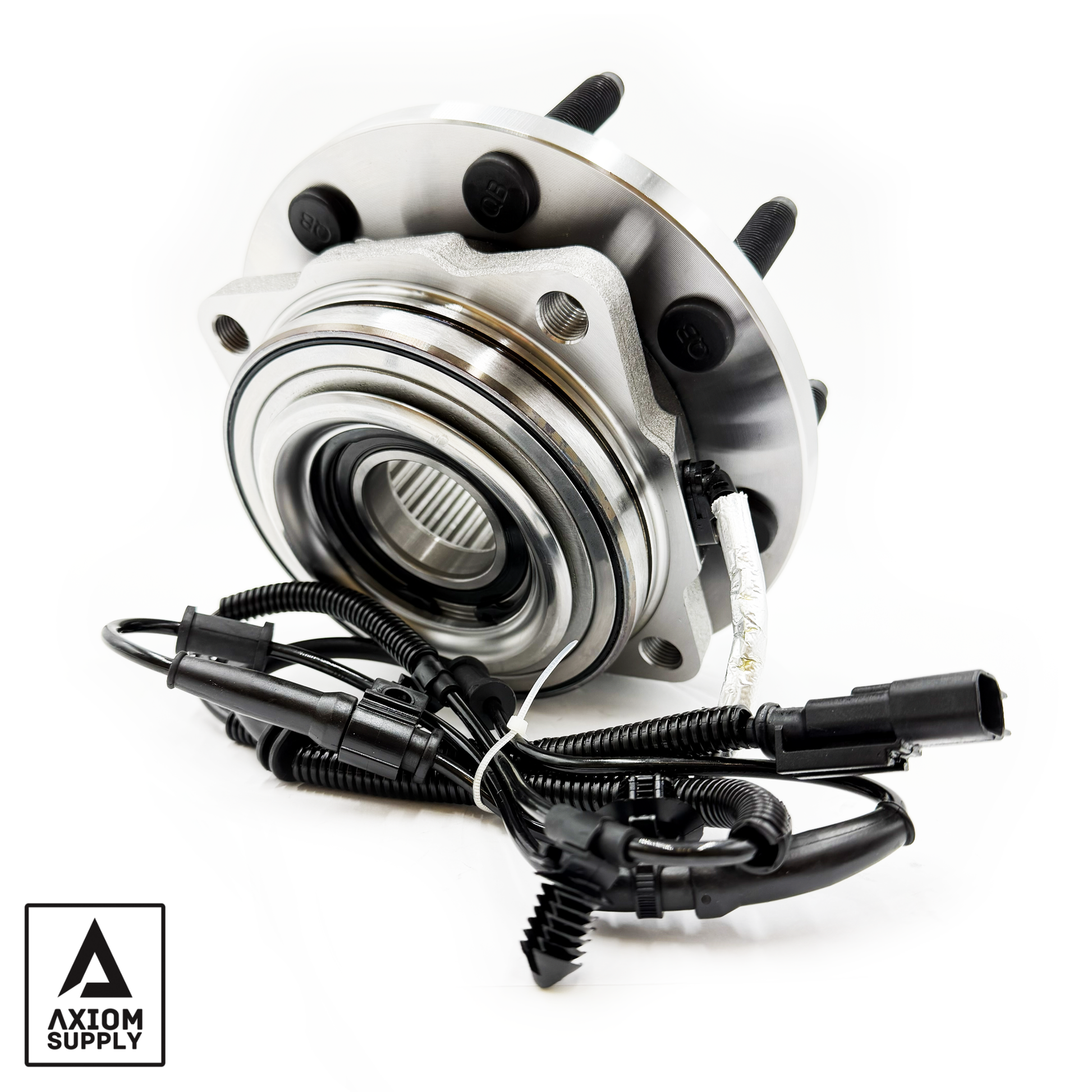

Durable ABS Sensor – Built to maintain accurate signal transmission in heat, mud, and moisture.

Configuration – 8 × M14-1.5 Fine Thread lug studs.

Description

The Axiom Supply Bearing Assembly is built for professionals who demand reliability from their heavy-duty trucks.

Developed with a proprietary bearing and hub structure, this assembly reduces hub-face deflection under load—ensuring tighter steering response, improved braking stability, and enhanced durability even under the stress of towing, oversized tires, or lifted suspension setups.

Each assembly comes as a complete bolt-in unit, compatible with both left and right spindles. Installation typically takes about 2 hours and requires no special modifications.

Whether your truck works hard on the job site or conquers rough terrain on weekends, Axiom Supply bearing assemblies deliver the strength, precision, and longevity serious truck owners rely on.

Includes

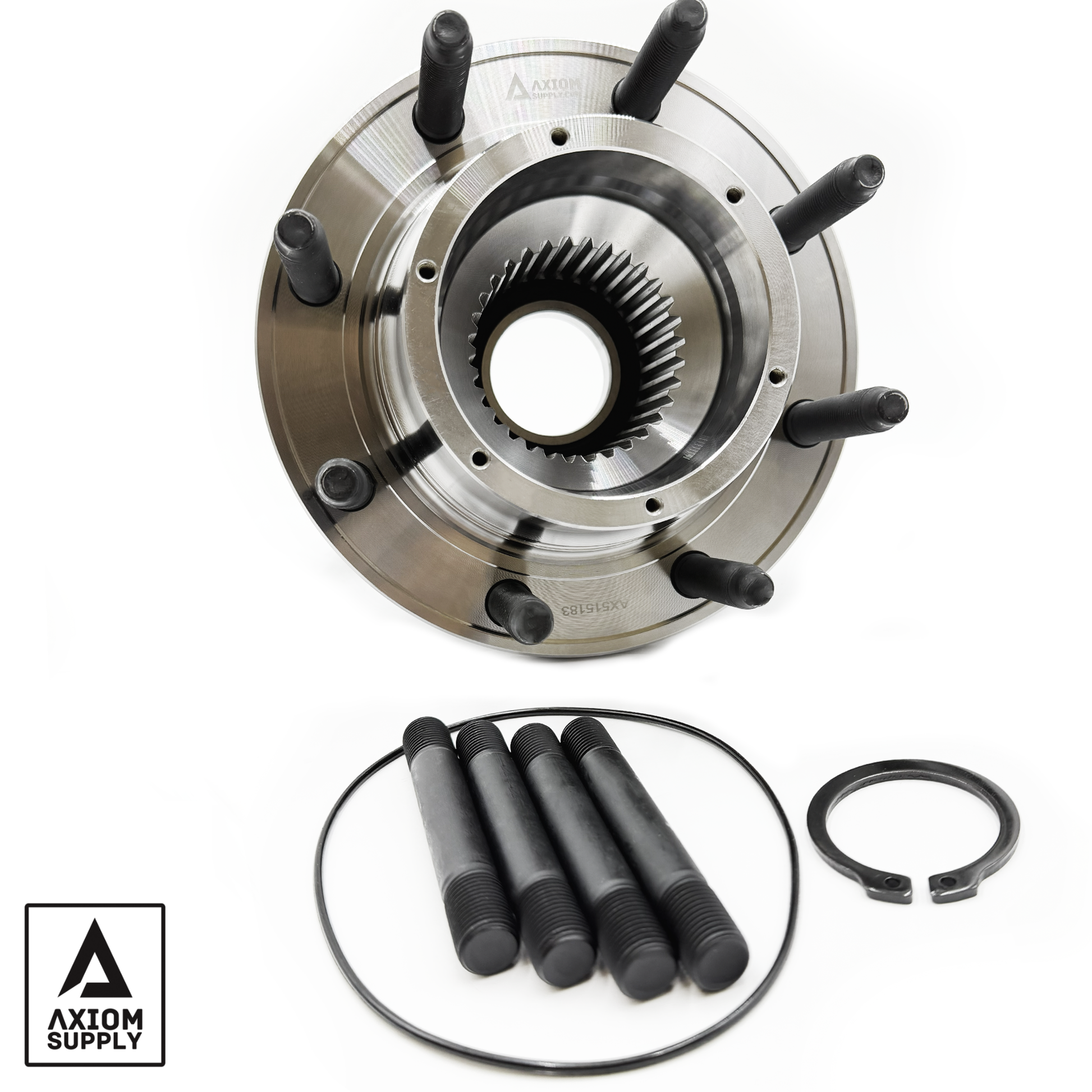

(1) Wheel Bearing & Hub Assembly with integrated ABS wire and (4) Mounting Bolts (1) O-ring (1) Retainer Ring

Torque Specifications

While turning the wheel, tighten the hub nut to 30 ft-lbs (40 Nm). Then, loosen it by two full turns. With the brake disc rotating, tighten the nut to between 17 and 24 ft-lbs (22 to 34 Nm). Next, rotate the nut back 175 degrees and finally tighten it to 17 ft-lbs (2 Nm).

Spindle Bolts(4)- 133 lb.ft

Caliper Bolts(2)- 166 lb.ft

Interchange

Timken SP940200, Doc's DH515081, Kryptonite KR200, Autopart International 1411-256018, BCA WE61403, Carquest 94-256018, Centric Parts 40265019, Dorman - OE Solutions 951-807, Durago 29515081, FAG US 102017, Ford AC3Z1104F, GMB 725-0357, GSP 126081, Mevotech H515081, G515081, Moog Hub Assemblies 515081, Motorcraft HUB158, PT515081, AC3Z1104F, NAPA PBR930695, SKF BR930695, Axiom AX515081

The Axiom No-Nonsense Lifetime Warranty

Our suspension and steering components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.

Push it to the limit—we don’t care.
If the part lets you down, we will make it up to you!
