Two trucks, both leveled two inches, both look identical in the parking lot. One rides like it left the factory. The other rides like a forklift and chews through shocks, because of how the height was made.
The difference is how the height was made. There are three methods, they cost different things, and nobody tells you what you're trading away.
Method 1: cranking the factory torsion bolts
Costs nothing up front. Costs you the ride, the travel and a set of shocks.
On a torsion-bar GM, the ride height adjuster bolt twists the bar to raise the truck. One wrench, ten minutes, no parts. It is also the single most common way to ruin a truck's ride, and the reason a lot of leveled trucks feel like a forklift.
A torsion bar is a spring. Twisting it further preloads it — the bar now sits higher up its own force curve, so it takes more force to move it at all. Small bumps that the suspension used to absorb now go straight into the frame.
You also lose down-travel. The lower control arm now sits closer to the top of its range at ride height, so the suspension runs out of compression sooner and the bump stop becomes part of your daily commute.
And the shocks. A stock shock at a cranked ride height is closer to full extension all the time, which means it's working in the wrong part of its stroke and topping out over dips.
When it's acceptable: half an inch to correct a sag. That's it.
Method 2: leveling keys
Cost: around $110 for a set. What it costs you: an alignment and an hour.

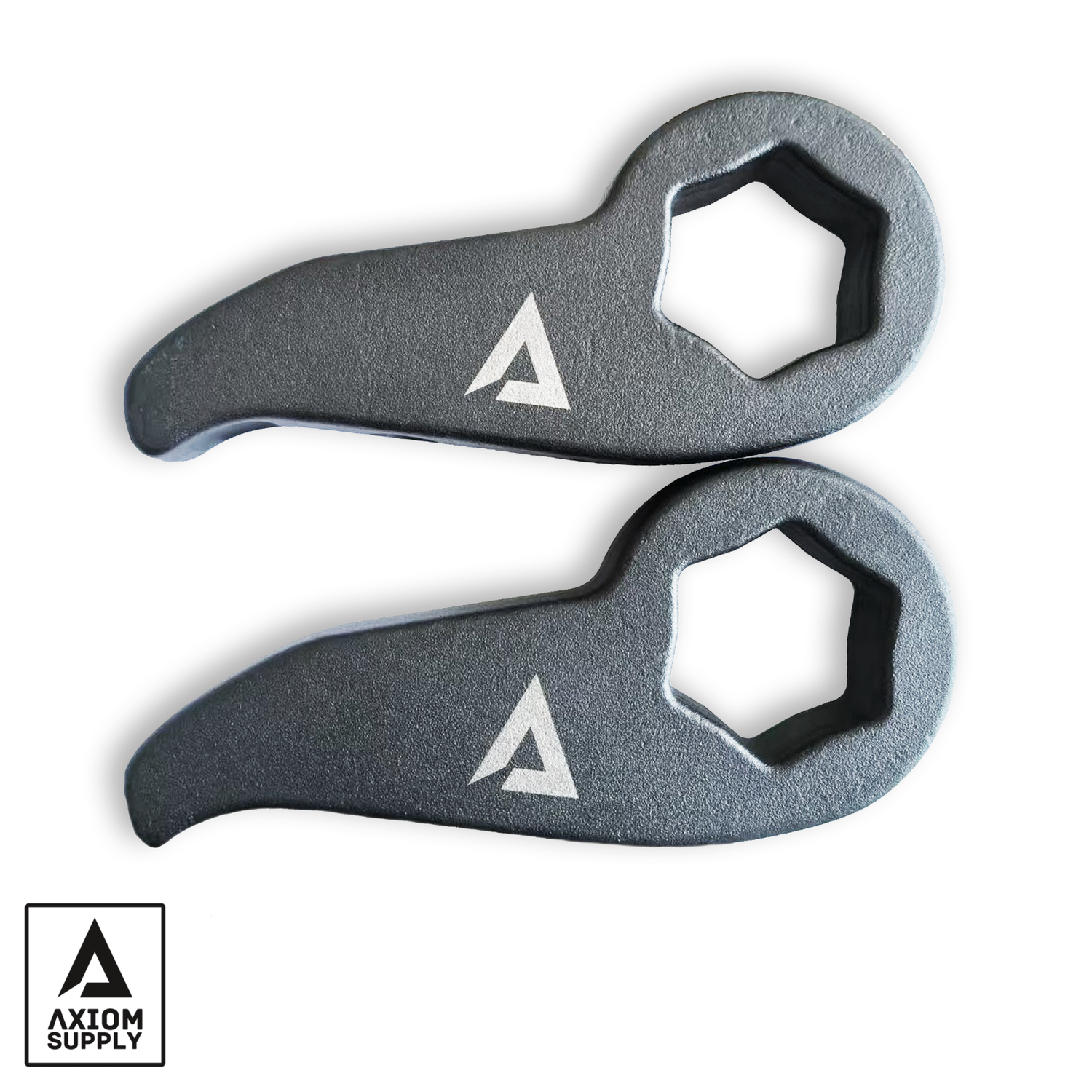

A leveling key is a re-indexed torsion key. The hex broach that grips the bar is rotated relative to the adjuster arm, so the truck sits higher at the same bar twist. You get the height without adding preload.
That's the whole trick, and it's why keys ride so much better than a cranked stock key. The bar is doing the same amount of work it did from the factory. The truck just sits taller.
Two things to know:
- You need a torsion key tool or a very confident relationship with a floor jack. The bars are under serious load and they will hurt you if you take a shortcut. A proper torsion key tool makes this a calm job.
- You still need shock extensions on most platforms. More height means the shock hangs further out. An extension moves the mounting point so the shock works in its designed stroke again.
When it's right: almost always, on a torsion-bar GM. This is the method we'd put on our own trucks.
Method 3: spacers
Cost: $70–$160. What it costs you: down-travel, and an alignment.
A strut spacer sits between the strut assembly and the frame. A coil spacer sits above or below the spring. Either way you're moving the whole assembly down relative to the truck, which pushes the truck up.
The advantage over cranking: no added spring preload. The spring rate and the ride are unchanged. The truck rides like it did, just taller.
The disadvantage: you haven't added any travel. The strut still has the same stroke, it's just positioned lower, so you've traded down-travel for height. On a 1.5 in spacer that's fine. At 3 in you're regularly topping out.
On coil-sprung Super Dutys, a bottom-mount coil spacer is the clean way to do this — the load path stays through the spring seat instead of hanging off the strut mount.
Side by side
| Cranked bolts | Leveling keys | Spacers | |
|---|---|---|---|
| Cost | $0 up front | ~$110 | $70–$160 |
| Ride quality | Much worse | Unchanged | Unchanged |
| Down-travel | Reduced | Slightly reduced | Reduced by lift amount |
| Spring preload added | Yes, a lot | No | No |
| Needs shock extensions | Yes | Usually | Usually |
| Reversible | Yes | Yes | Yes |
| Applies to | Torsion-bar trucks | Torsion-bar trucks | Strut and coil trucks |
The parts of this job nobody budgets for
The alignment. Non-negotiable. Leveling changes camber and caster, and driving on it un-aligned will scrub the inside edges off a set of tires in a few thousand miles. Budget it as part of the kit.
Shock extensions. Cheap, and they're the difference between shocks lasting and shocks topping out. If your kit doesn't include them and the platform needs them, add them.
Bump stops. At more than about 2 in you may want to revisit bump stop height so the tire doesn't find the fender before the suspension finds the stop.
Upper control arms. Not at 2 in. Definitely by 3. See the UCA breakdown.
How to do a key install without getting hurt
Short version, because this is the part with real risk:
- Support the frame on stands, let the front suspension hang
- Count and record the exposed threads on the adjuster bolt — that's your baseline
- Use a torsion key unloading tool to take the load off the adjuster before you touch anything
- Back the bolt out, remove the key, note the bar's index position
- Install the new key at the same bar index, reload with the tool
- Set the truck down, roll it back and forth to settle, then measure and adjust to your target height
- Alignment
If a step involves prying a loaded torsion bar with a bar and hoping, stop and get the tool.
Kits and tools
- GM HD 2500/3500 — keys, Stage 1 kits, shock extensions
- GM 1500 6-lug — leveling
- Ford Super Duty — bottom-mount coil spacers
- Torsion key tool
Still deciding whether to level or lift at all? Start with what each one actually changes underneath the truck.
