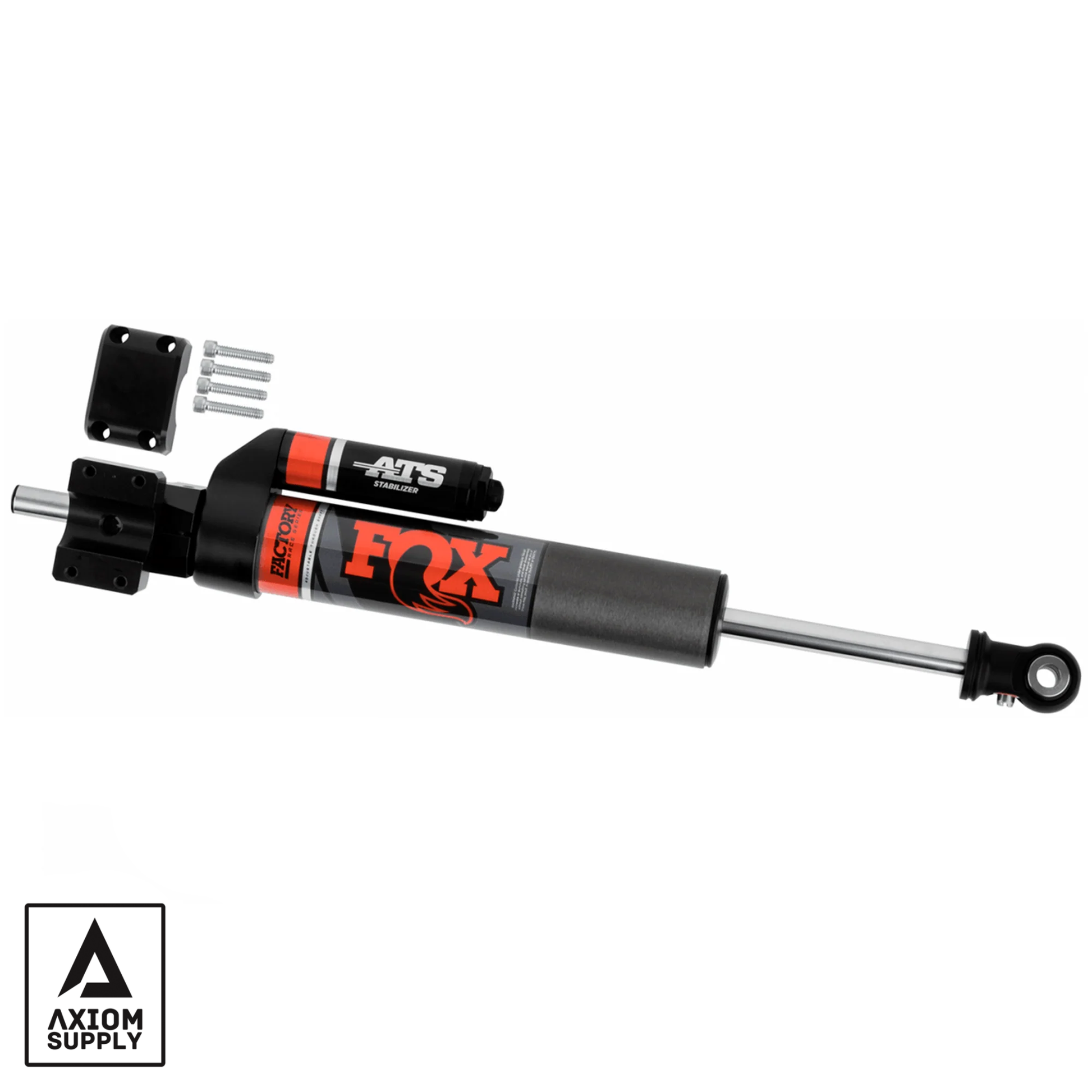

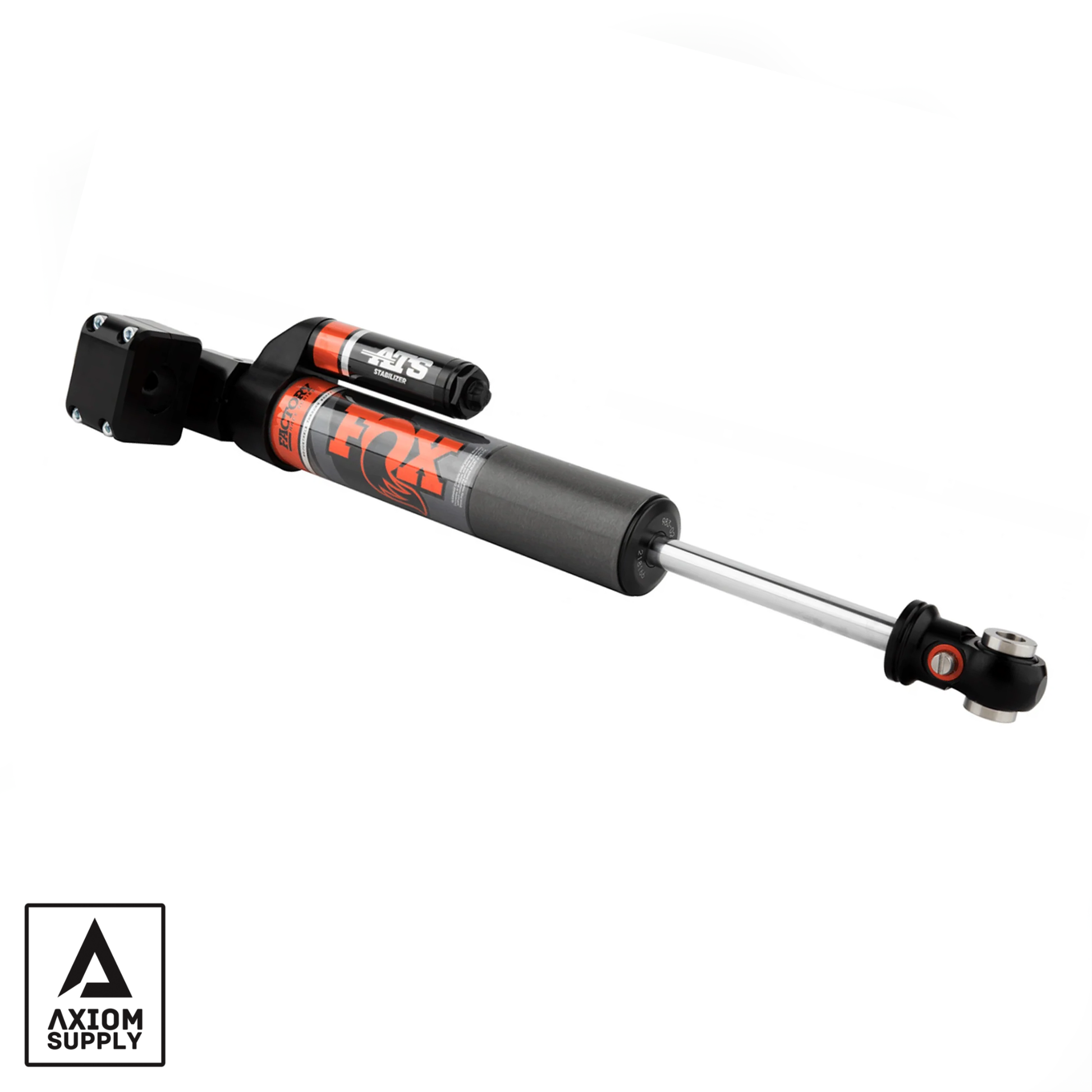

Fox 2.0 ATS Steering Stabilizer Ford F250-F350 4WD 2017-2026 (AX143)

Fitment

This Steering Stabilizer assembly is designed to fit the Ford Super Duty Pick Up F250-F350 4WD 2017-2026. This stabilizer is direct replacement for the OE and intended to fit to the OE drag link or drag link mounting bracket.

Features

Designed as a direct replacement stabilizer for stock, leveled or lifted suspension setups

Compatible with most leveling kits, lift kits, and factory suspension

Collapsed Length: 14.1"

Extended Length: 22.2"

Description

Race-Proven Performance. Daily Driver Comfort.

With conventional steering stabilizers, turning in one direction creates an increase in pressure inside the stabilizer as the shaft occupies more volume in the body and displaces the oil. The repercussion is a push or pull steering force felt by the driver as the stabilizer attempts to return to its neutral state. To overcome this unidirectional force, dual opposing stabilizers are often used, but this requires additional mounting hardware and space.

The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel in both directions. The external piggyback reservoir provides additional fluid capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation. For increased control that can be tailored to any driving style and setup, an external adjuster provides 24 clicks of adjustment to fine tune the feel. The result is highly customizable and consistent damping of unwanted steering feedback in a single, bolt-on stabilizer.

Includes

(1) Single Steering Stabilizer and mounting hardware AX143 Fox Shock 983-02-143

The Axiom No-Nonsense Lifetime Warranty

Our suspension and steering components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.

Push it to the limit—we don’t care.
If the part lets you down, we will make it up to you!
