Axiom Supply Upper Ball Joint Ford Super Duty F250-F350 4WD 2023-2026

Fitment

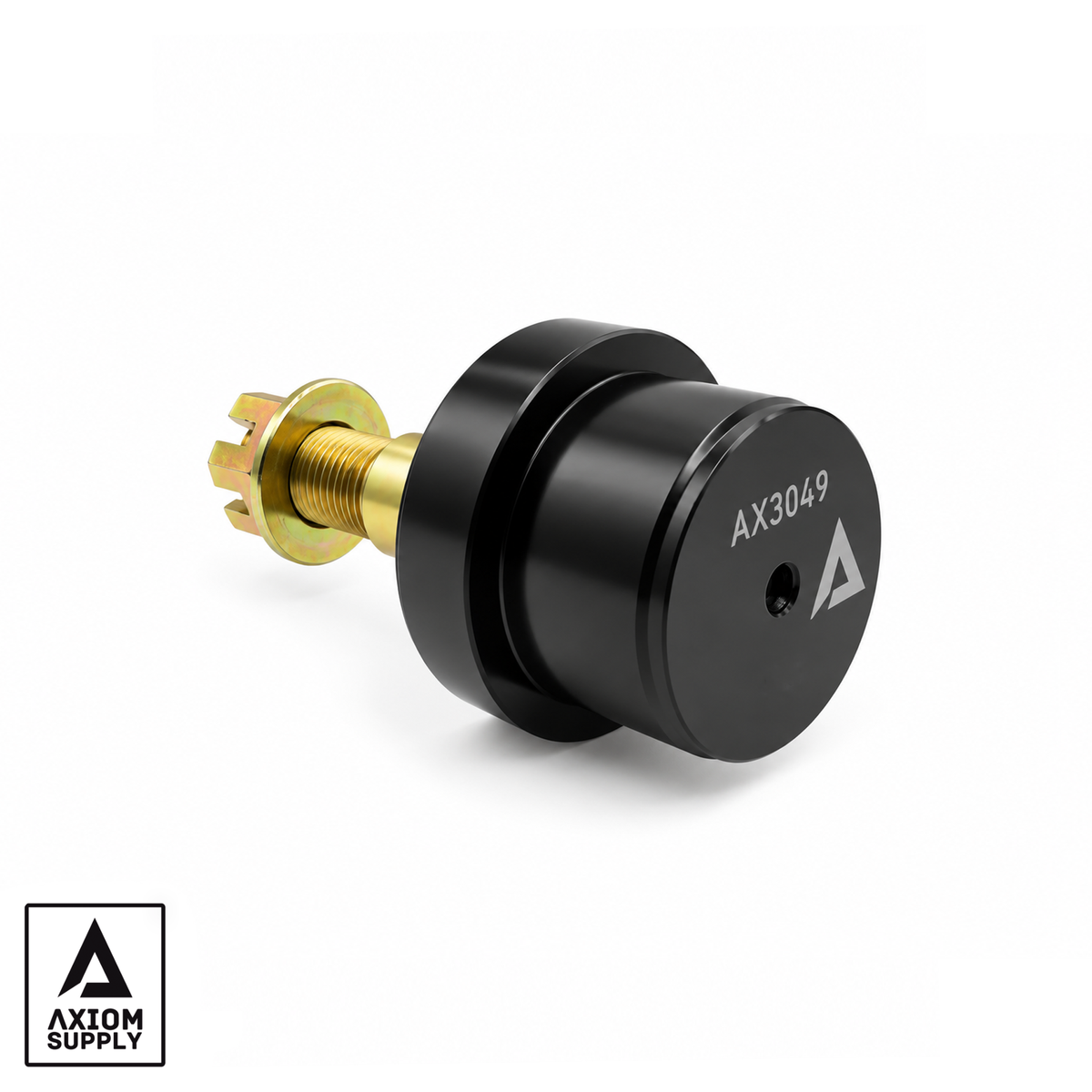

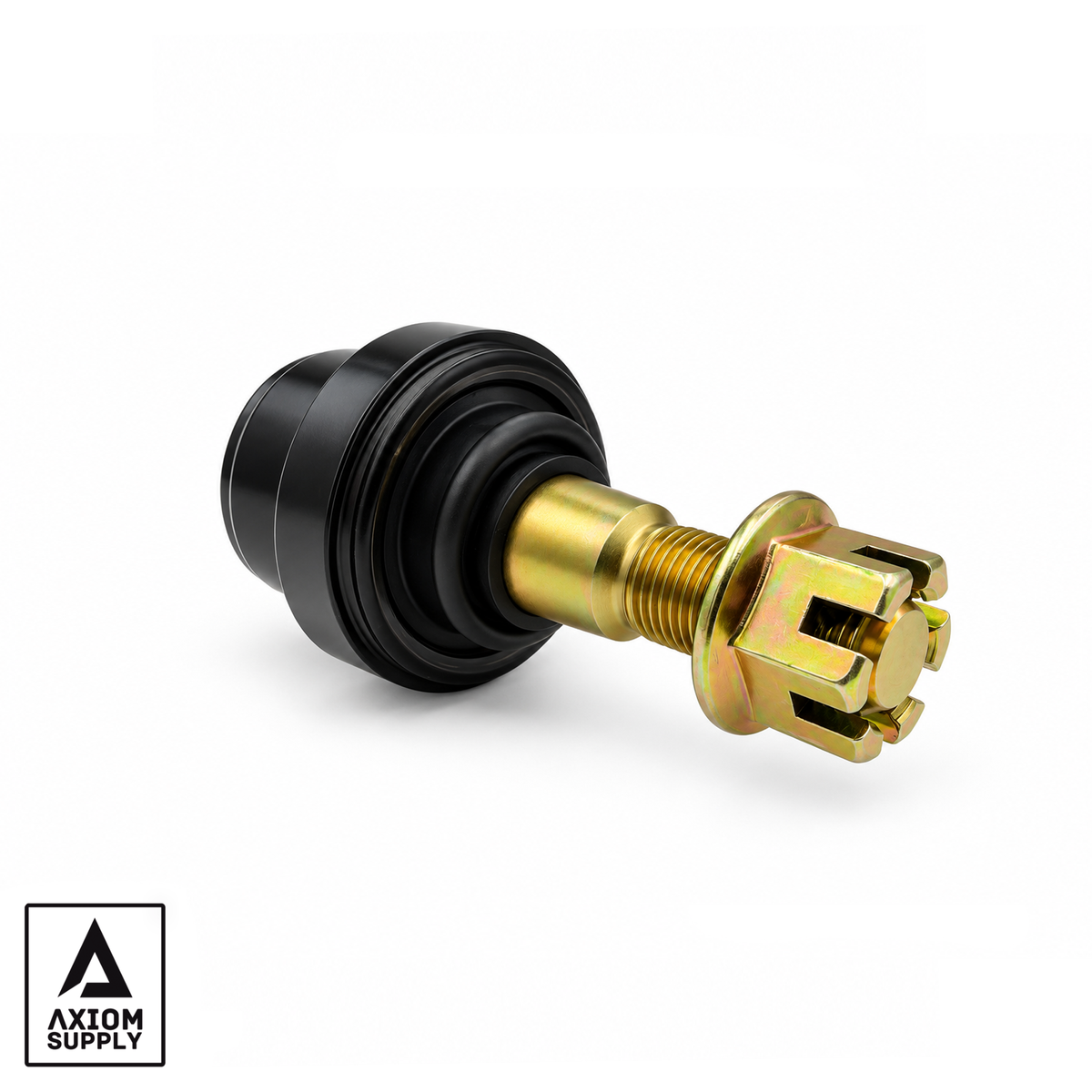

The Axiom Supply AX3049 Heavy-Duty Upper Ball Joint is a direct-fit replacement for the factory OE-style upper ball joint used on 2023–2026 Ford F-250 and F-350 Super Duty 4WD trucks.

Designed to install directly in place of the factory upper ball joint and share the same OE-style fitment as Ford PC3Z-3049-A / Motorcraft MCF-2604.

Fits the front upper driver or passenger side.

Ford Super Duty

2023–2026 Ford F-250 Super Duty 4WD

2023–2026 Ford F-350 Super Duty 4WD

Fitment Notes

Direct replacement anywhere the applicable Ford PC3Z-3049-A / Motorcraft MCF-2604 OE-style upper ball joint is used.

Designed specifically for 4WD F-250 and F-350 Super Duty applications.

Fits either the driver or passenger side. One ball joint is required per side.

This AX3049 is designed around the factory 4WD upper ball joint configuration. Ford uses a different upper ball joint on applicable 2WD trucks.

Features

Grade 12.9 Extreme-Duty Ball Stud — Engineered for exceptional tensile strength, fatigue resistance, and durability under heavy front-end loads.

Forged Steel Housing — Manufactured from high-strength forged steel to withstand the demands of towing, hauling, oversized tires, lifted suspensions, and off-road use.

High-Articulation Design — Provides additional operating range to accommodate suspension movement while maintaining consistent joint engagement.

Precision Internal Bearing Assembly — Designed for smooth steering response, reduced deflection, and long-term durability.

Self-Compensating Load System — Maintains proper internal loading as components wear to help preserve steering precision and minimize unwanted play.

Greaseable Construction — Fully serviceable design allows periodic maintenance to maximize ball joint life.

Corrosion-Resistant Finish — Protective coatings help defend against rust, road salt, moisture, and harsh operating environments.

OE-Style Direct Fit — Engineered around the factory upper ball joint dimensions for straightforward replacement without modification.

Description

The Axiom Supply AX3049 was developed to deliver an exceptionally strong, serviceable upper ball joint for the latest generation of Ford F-250 and F-350 Super Duty 4WD trucks.

Designed around the factory PC3Z-3049-A upper ball joint configuration, the AX3049 provides direct OE-style fitment for applicable 2023–2026 Super Duty 4WD applications.

At the heart of the design is a Grade 12.9 Extreme-Duty Ball Stud, paired with a forged steel housing and precision-engineered internal components. This heavy-duty construction is designed to withstand the increased suspension and steering loads associated with larger tires, leveling and lift kits, heavy towing, hauling, and demanding off-road use.

The self-compensating internal load system helps maintain consistent bearing contact as the joint wears, supporting precise steering feel and long-term durability. High-articulation geometry allows smooth suspension movement throughout the joint's operating range, while the greaseable construction makes routine service simple.

Whether your Super Duty spends its life towing, working, exploring off-road, or carrying oversized tires, the AX3049 combines heavy-duty materials, OE-style fitment, serviceable construction, and the confidence of Axiom's No-Nonsense Lifetime Warranty.

Maintenance

Apply 2–3 pumps of grease during installation.

For continued performance, service with 1–2 pumps of grease every 5,000–7,000 miles, or as required based on vehicle use and operating conditions.

Avoid excessive greasing, as the dust boot is designed to exclude contaminants rather than retain excessive lubricant.

Periodically inspect the ball joint and surrounding suspension components, particularly on vehicles equipped with oversized tires, modified suspension, or used regularly for towing or off-road driving.

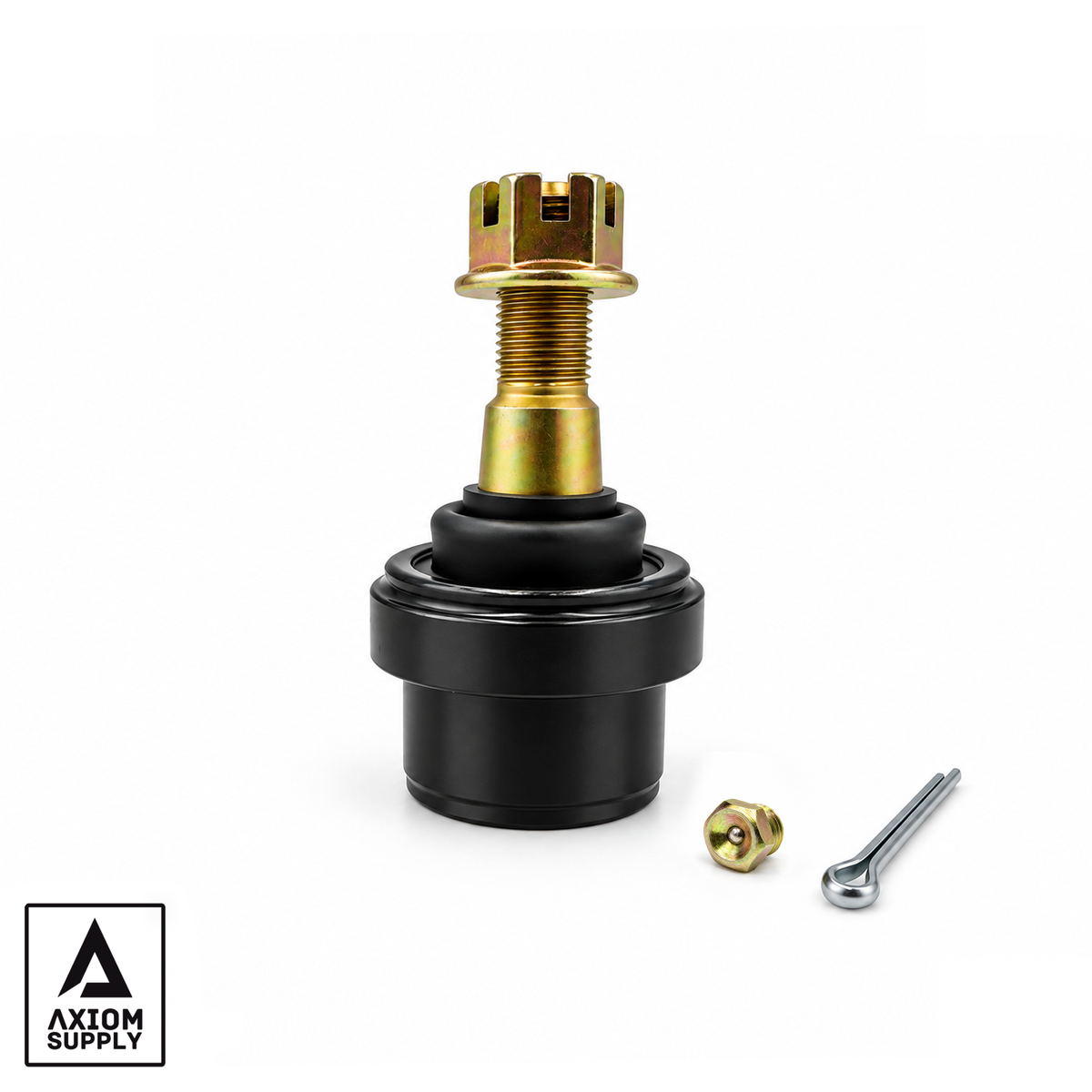

Includes

(1) Axiom Supply AX3049 Heavy-Duty Upper Ball Joint — Sold Individually

Grease Fitting

Ball Joint Stud Nut

Gold Zinc Cotter Pin

Installation

The AX3049 is designed as a direct replacement for the factory upper ball joint on applicable 2023–2026 Ford Super Duty 4WD trucks.

Use a suitable ball joint press and follow the applicable Ford service procedures during removal and installation.

Final tightening must follow the proper torque specification for the supplied ball joint hardware. Always use a calibrated torque wrench for final tightening.

Important: Do not use impact tools for final tightening of ball joint hardware.

Interchange

Axiom Supply

AX3049

Ford Original Equipment Cross-References

PC3Z-3049-A

Motorcraft Cross-References

MCF-2604

Ford identifies PC3Z-3049-A / MCF-2604 as the upper ball joint used on applicable 2023–2026 F-250 and F-350 Super Duty 4WD trucks.

Part numbers are provided for application cross-reference. Verify the vehicle's model year, drivetrain, and upper ball joint configuration before ordering.

The Axiom No-Nonsense Lifetime Warranty

Our suspension components are warranted for life to the original purchaser against manufacturer defects, premature wear, or breakage.

Push it to the limit—we don’t care.

If the part lets you down, we’ll make it right.
