Axiom Supply Stage 2 Leveling System GM HD Truck 2500 / 3500 Silverado / Sierra 2001-2010
Axiom Supply Stage 2 Leveling System GM HD Truck 2500 / 3500 Silverado / Sierra 2001-2010
SKU:AXGM10STAGE2
In stock
Will this fit your vehicle?
Couldn't load pickup availability
Share
Fitment
The Axiom Supply Stage 2 Leveling System is a complete front suspension upgrade engineered for GM 8-lug HD trucks and SUVs seeking increased ride height, corrected suspension geometry, improved wheel travel, and enhanced durability.
Chevrolet / GMC HD Trucks
Silverado 2500HD – 2001-2010
Sierra 2500HD – 2001-2010
Silverado 3500 / 3500HD – 2001-2010
Sierra 3500 / 3500HD – 2001-2010
Silverado 1500HD – 2001-2003, 2005-2007 Classic
Sierra 1500HD – 2001-2003, 2005-2007 Classic
Silverado 2500 – 2001-2004
Sierra 2500 – 2001-2004
GM 2500-Series SUV / Hummer Applications
Chevrolet Suburban 2500 – 2001-2013
GMC Yukon XL 2500 – 2001-2013
Chevrolet Avalanche 2500 – 2002-2006
Hummer H2 / H2 SUT – 2003-2009
Fitment Notes
Fits applicable 2WD and 4WD 8-lug models equipped with torsion-bar front suspension.
Compatible with gas and Duramax diesel applications.
Fits both 2001-2007 Classic and 2007.5-2010 New Body Style GM HD trucks.
Provides up to 2" of adjustable front ride height.
Designed around the factory upper control arm mounting locations and compatible with stock, leveled, and many lifted suspension configurations.
Not intended for suspension systems that relocate the upper control arm using a UCA drop or relocation bracket.
Oversized tires may require additional wheel offset or spacers for adequate control arm clearance.
A professional alignment is required following installation.
Features
Complete Stage 2 Suspension System – Combines Axiom Heavy-Duty Upper Control Arms, forged torsion leveling keys, shock extensions, Grade 12.9 ball joints, premium bushings, and installation hardware into one complete front suspension package engineered to work together.
Ride-Height Corrected Caster Geometry – Unlike many aftermarket upper control arms designed around a fixed amount of correction for one predetermined leveling height, the Axiom control arms feature caster correction engineered directly into the arm geometry to provide usable alignment range across stock, leveled, and lifted ride heights.
True Double-Shear Construction – Built from identical upper and lower 3/16" steel plates that are precision laser cut and hand welded into a single rigid structure. Supporting the ball joint mounting area from both sides distributes suspension loads more effectively while maximizing strength and rigidity.
Equipped with AX6292 Grade 12.9 Ball Joints – Every system includes a pair of Axiom Supply AX6292 Bolt-On Upper Ball Joints featuring our Grade 12.9 Extreme-Duty Ball Stud technology for exceptional strength, steering precision, and resistance to deformation under heavy loads.
Forged Torsion Leveling Keys – Heavy-duty forged keys provide up to 2" of adjustable front ride height while maintaining the proper torsion-bar indexing and adjustment range required for the GM HD suspension.
Shock Extension System – Allows the factory-length front shocks to operate properly at the increased ride height while restoring usable shock travel and helping maintain suspension performance.
Corrected Suspension Geometry – Addresses the unfavorable upper ball joint and control arm angles created when the factory torsion-bar suspension is leveled, improving articulation, suspension travel, and overall front-end operation.
Increased Droop Travel – Improved upper control arm and ball joint geometry restores available downward suspension movement that can be lost when a factory GM HD suspension is leveled using torsion keys alone.
Improved Alignment Capability – Increased usable caster and camber adjustment allows the truck to be properly aligned across a broader range of suspension heights and configurations.
Dual-Position Ball Joint Mounting – Allows the ball joint to be mounted above or below the control arm mounting plate, providing additional flexibility when optimizing ball joint angle, alignment, and suspension geometry.
Precision Laser-Cut Components – Manufactured using computer-designed, laser-cut steel components for consistent fitment and manufacturing accuracy.
Service-Friendly Design – Improved grease fitting access simplifies routine maintenance and lubrication.
Premium Bushing System – High-quality bushings and sleeves provide smooth articulation while minimizing unwanted suspension deflection.
Built for Heavy-Duty Use – Engineered for the demands of towing, oversized tires, modified suspension systems, off-road use, and everyday driving.
Lifetime Warranty Protection – Backed by the Axiom No-Nonsense Lifetime Warranty for the original purchaser.
Description
The Axiom Supply Stage 2 Leveling System for 2001-2010 GM HD Trucks was developed for owners looking for substantially more than a basic torsion-key leveling kit.
Traditional leveling kits increase front ride height by re-indexing the torsion bars, but raising the suspension also changes upper control arm position, ball joint operating angle, available droop travel, and alignment geometry.
The Axiom Stage 2 System addresses the entire front suspension system rather than simply raising the truck.

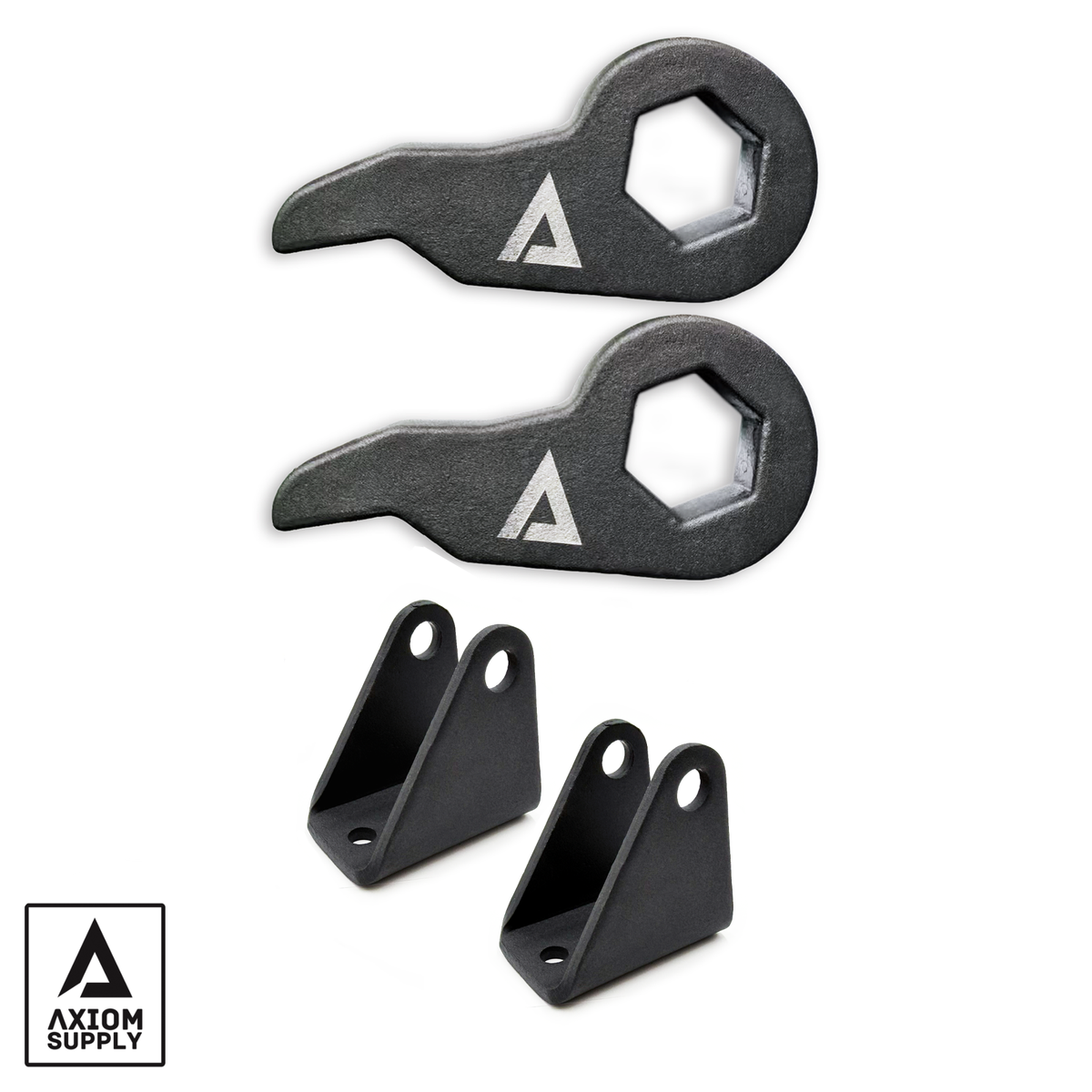

At the foundation of the system are Axiom Supply forged torsion leveling keys, providing up to 2" of adjustable front ride height to reduce factory rake and create additional clearance for larger wheel and tire combinations.
Included shock extensions allow the factory-length shocks to accommodate the increased ride height while preserving usable shock travel throughout the suspension cycle.
But ride height is only part of the equation.

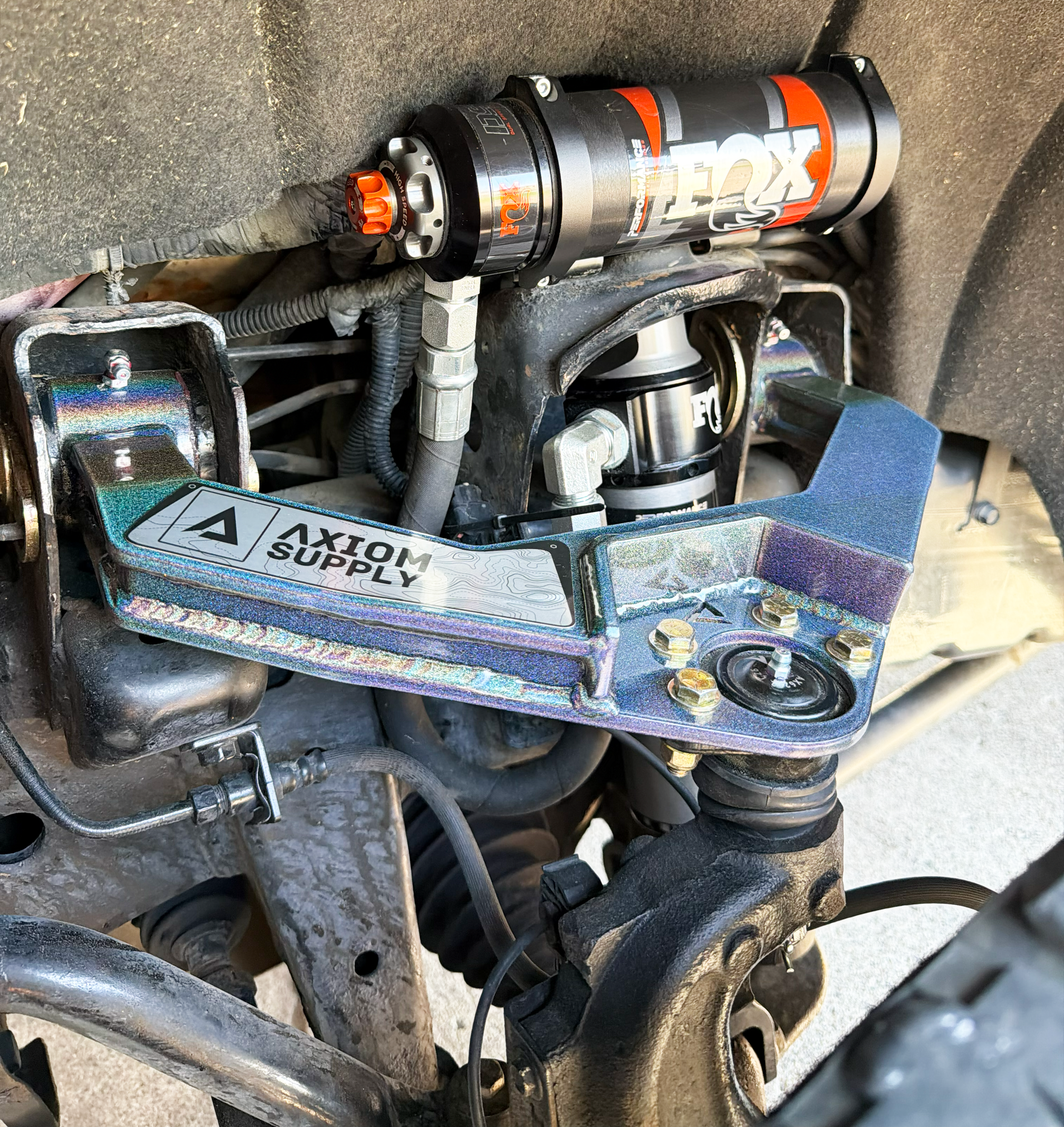

The included Axiom Supply Heavy-Duty Upper Control Arms were specifically engineered to correct the suspension geometry associated with stock, leveled, and lifted GM HD applications.
Unlike many competing aftermarket upper control arms that incorporate a predetermined amount of caster correction intended around one specific leveling height, Axiom engineered the caster geometry into the control arm to provide usable alignment correction throughout a broad range of ride heights.
This allows an alignment technician to properly set caster and camber based on the truck's actual suspension height and configuration, rather than forcing the truck to work around geometry intended for one fixed lift setting.
The result is improved straight-line stability, steering return-to-center, alignment capability, suspension articulation, and overall driving characteristics whether the truck remains close to stock height or is set at the full leveling range.
The Axiom control arms also restore available droop travel that can be lost when the factory suspension is raised using torsion keys alone. Improved ball joint operating angles allow the suspension to articulate more naturally without forcing the upper ball joint toward the limits of its available travel.

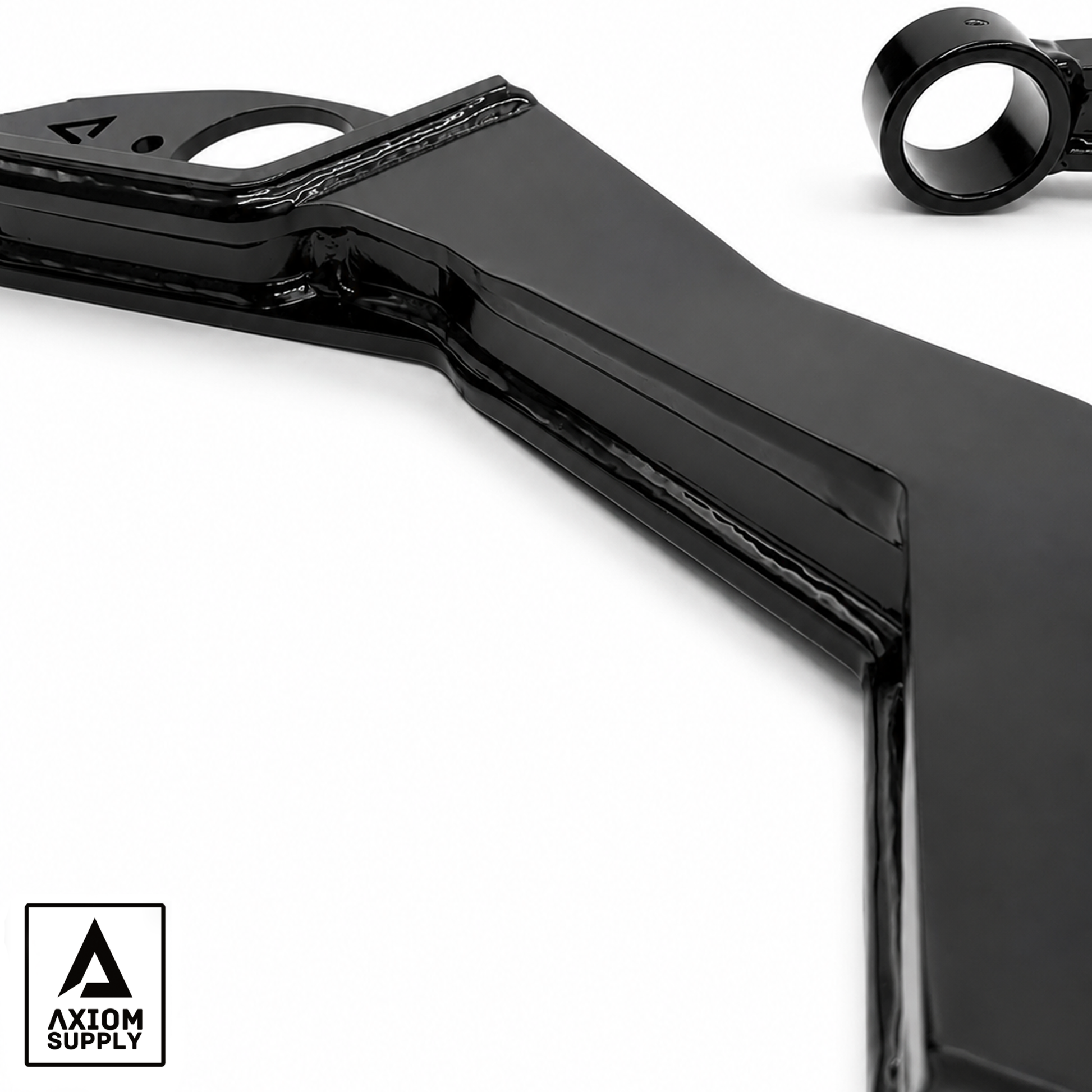

Structurally, each arm is built around Axiom's true double-shear design, utilizing matching upper and lower 3/16" laser-cut steel plates that are hand welded into one rigid assembly.
Rather than supporting the ball joint from a single mounting surface, the double-shear architecture captures the ball joint mounting area from both sides, distributing suspension loads more evenly and significantly increasing rigidity under demanding steering and suspension loads.
Each arm comes equipped with an Axiom Supply AX6292 Bolt-On Upper Ball Joint featuring our Grade 12.9 Extreme-Duty Ball Stud technology.
The serviceable bolt-in design allows the ball joint to be replaced independently from the control arm while providing the strength required for large tires, heavy vehicles, towing, aggressive terrain, and modified suspension systems.

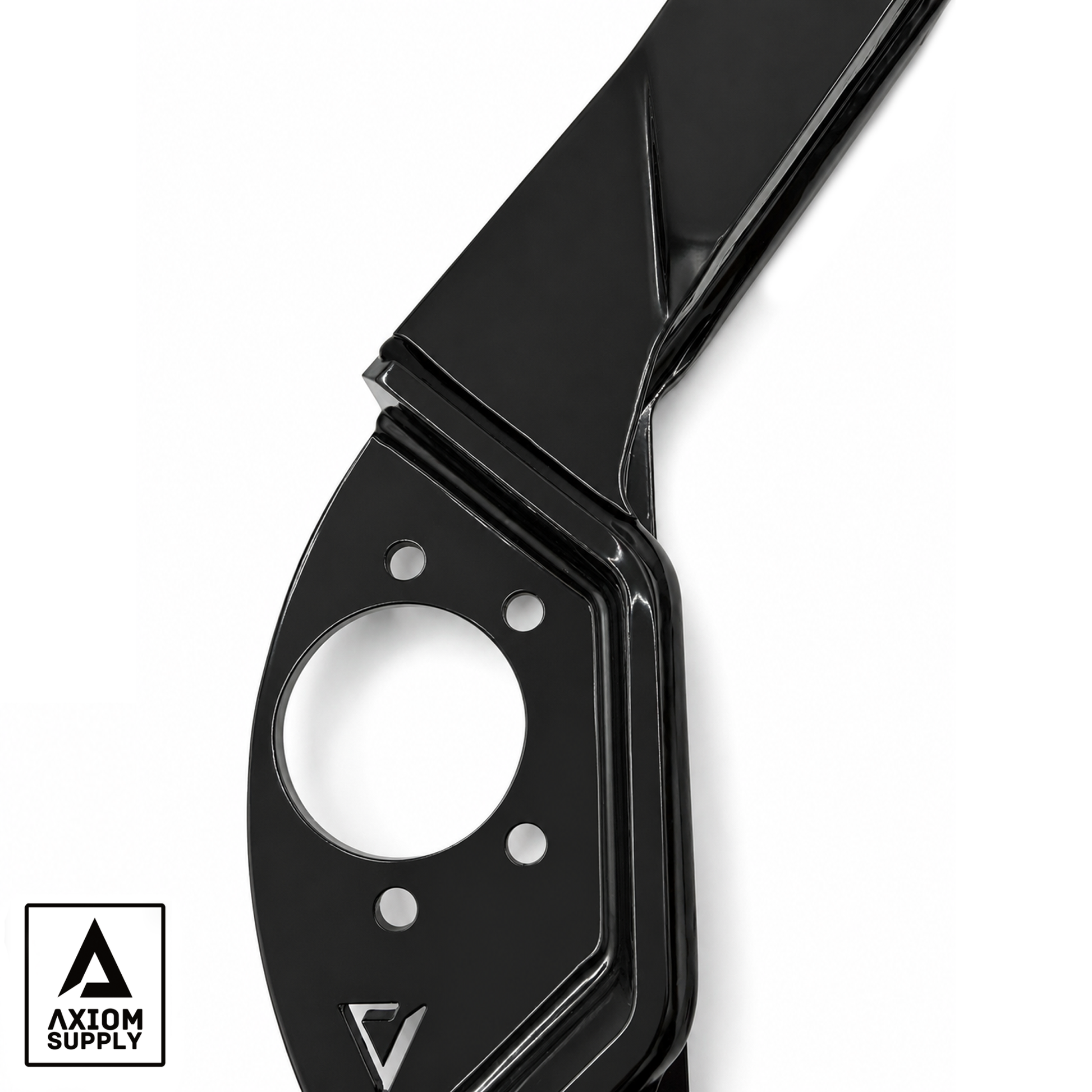

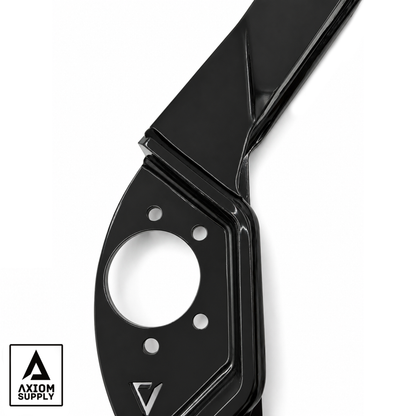

Axiom's dual-position ball joint mounting design adds another level of suspension setup flexibility by allowing the ball joint to be positioned above or below the mounting plate depending on the vehicle's suspension configuration.
Combined with premium bushings, precision sleeves, serviceable components, improved grease-fitting access, forged torsion keys, and shock extensions, the Stage 2 System creates a complete front suspension package designed to work together rather than a collection of unrelated leveling components.
Whether your GM HD is a daily-driven Duramax, heavy tow rig, work truck, off-road build, or oversized-tire street truck, the Axiom Supply Stage 2 Leveling System delivers the ride height, caster correction, suspension travel, alignment capability, strength, and serviceability required to properly level the truck without ignoring the suspension geometry that comes with it.
Ball Joint Interchange
The included Axiom Supply AX6292 utilizes the common aftermarket bolt-in upper ball joint pattern associated with:
K6292
MOOG K6292
The AX6292 is a serviceable bolt-in ball joint designed for compatible aftermarket GM HD upper control arms.
Note: K6292 interchange applies to the bolt-in ball joint used with compatible aftermarket upper control arms. It is not the same design as the factory press-in upper ball joint used in the original stamped GM control arm.
Maintenance
Apply approximately 3 pumps of grease to each ball joint during installation.
For continued performance, service each ball joint every 5,000-7,000 miles.
Use only the amount of grease necessary to properly lubricate the joint and avoid over-greasing.
Periodically inspect ball joints, control arm bushings, torsion-key adjustment hardware, shock extensions, and suspension mounting hardware—particularly on vehicles used off-road, for heavy towing, or with oversized tires.

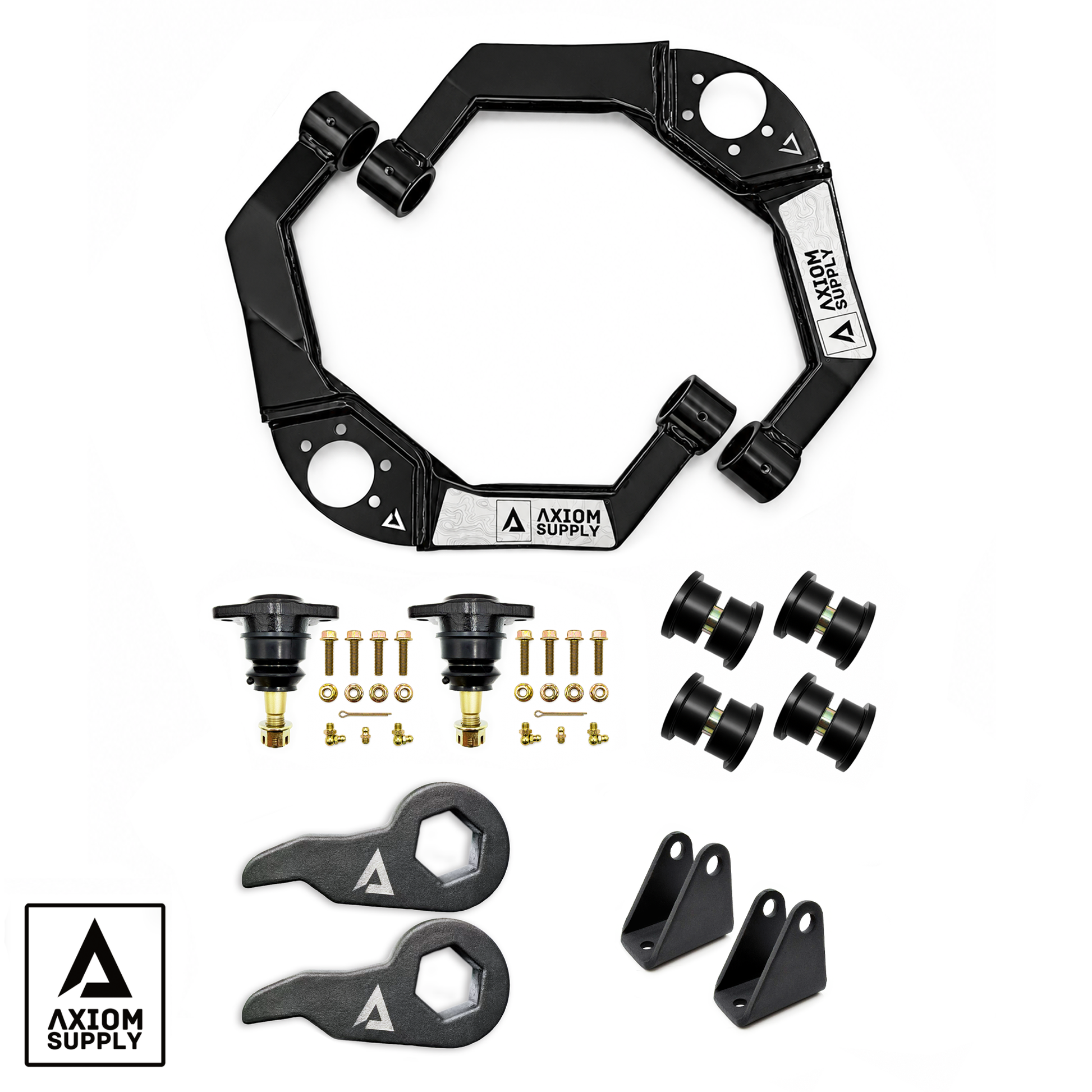

Includes
(2) Axiom Supply Heavy-Duty Upper Control Arms
(2) Axiom Supply AX6292 Grade 12.9 Bolt-On Upper Ball Joints
(2) Axiom Supply Forged Torsion Leveling Keys
(2) Axiom Supply Front Shock Extensions
(4) Control Arm Sleeves
(8) Control Arm Bushings
(1) Complete Installation Hardware Kit
Interchange
2001-2010 Chevy Silverado 2500HD Stage 2 Leveling Kit, 2001-2010 GMC Sierra 2500HD Stage 2 Leveling Kit, Silverado 3500 Leveling Kit, Silverado 3500HD Leveling Kit, Sierra 3500 Leveling Kit, Sierra 3500HD Leveling Kit, Silverado 1500HD Leveling Kit, Sierra 1500HD Leveling Kit, Silverado 2500 Leveling Kit, Sierra 2500 Leveling Kit, Suburban 2500 Leveling Kit, Yukon XL 2500 Leveling Kit, Avalanche 2500 Leveling Kit, Hummer H2 Leveling Kit, Duramax Leveling Kit, LB7 Leveling Kit, LLY Leveling Kit, LBZ Leveling Kit, LMM Leveling Kit, GM HD Upper Control Arms, GM HD Forged Torsion Keys, GM HD Shock Extensions, GM HD Caster Corrected Upper Control Arms, K6292 Upper Ball Joint, AX6292 Upper Ball Joint
The Axiom No-Nonsense Lifetime Warranty
Our suspension components are warrantied for life to the original purchaser against manufacturer defects, premature wear, or breakage.
Push it to the limit—we don't care.
If the part lets you down, we'll make it right.
