Axiom Supply Polaris Steering Tie Rod System RZR XP 2017 - 2026

The Axiom Supply Heavy-Duty Tie Rod System is engineered as a complete steering upgrade for select Polaris RZR and General models equipped with an M16 × 1.5 inner steering-rack connection and factory-style tapered spindle mounting points.

Fitment:

Polaris RZR XP 1000

XP 1000: 2018 – 2026

XP Turbo: 2017 - 2026

*Models equipped with an M16 × 1.5 steering rack ONLY, This excludes early model High lifter and Trails and Rocks editions that may still include a M14 size steering rack assembly.

Polaris General

General XP 1000: Compatible models equipped with an M16 × 1.5 steering rack and tapered spindle connection

*General XP Models Only

Fitment Notes

Replaces the complete driver- and passenger-side factory tie-rod assemblies.

Designed around heavy-duty chromoly heim joints with a 5/8-inch inner bore.

Fits compatible models utilizing a factory-style tapered outer spindle connection.

Not compatible with factory OEM inner or outer tie-rod ends.

Minor modification of the factory steering-rack boots may be required to fit securely around the inner clevis assemblies.

Polaris used multiple steering-rack thread sizes and spindle configurations across certain models and production years. Always verify the M16 × 1.5 rack connection and tapered spindle design before ordering.

Features

Heavy-Duty 6061-T6 Billet Tie-Rod Bodies – Precision-machined aluminum tie-rod bodies provide substantially greater rigidity and resistance to bending than lightweight factory steering links.

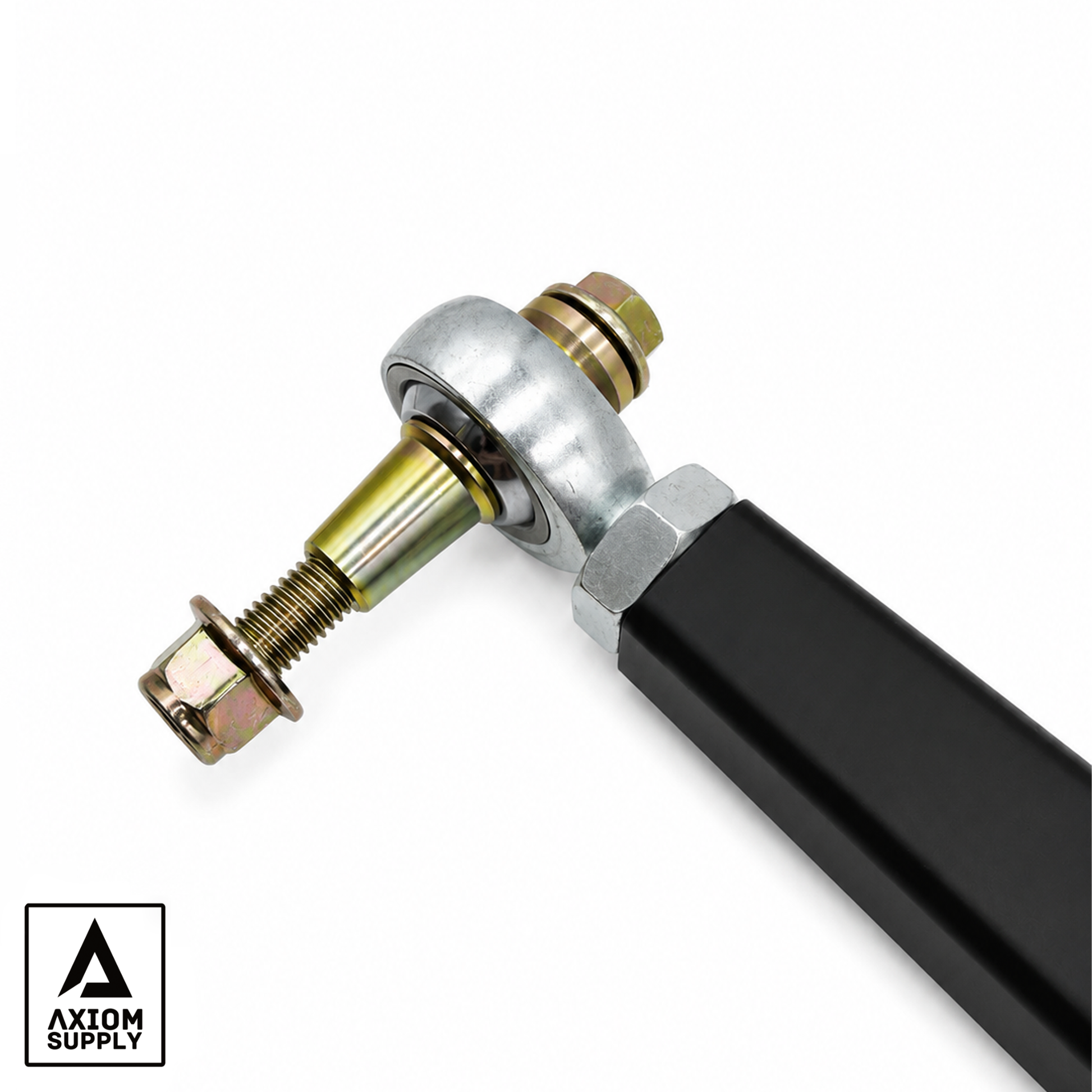

5/8-Inch Chromoly Heim Joints – High-strength chromoly rod ends deliver precise steering response, increased durability, and an extended range of motion for factory and modified suspension systems.

High-Articulation Steering Design – Precision misalignment spacers allow the heim joints to operate through an increased range of steering and suspension travel without binding.

M16 × 1.5 Inner Clevis System – Heavy-duty clevis adapters connect directly to compatible steering racks and support each inner heim joint from both sides for a strong, properly aligned connection.

Black Zinc-Plated Inner Hardware – The inner clevis adapters and M16 × 1.5 rack bolts feature a durable black zinc finish for protection against corrosion, mud, water, and harsh off-road environments.

Precision Tapered Spindle Spacers – Vehicle-specific lower misalignment spacers seat securely inside the factory tapered spindle openings for accurate alignment and dependable retention.

Matching Upper Misalignment Spacers – Precision-machined upper spacers correctly position the outer heim joints while providing the clearance required for steering articulation and suspension travel.

Gold Zinc-Plated Outer Hardware – The tapered spacers, upper spacers, Grade 10.9 flange bolts, and flange nyloc nuts are protected with a corrosion-resistant gold zinc finish.

Fully Adjustable Alignment – Threaded heim joints and jam nuts allow precise toe adjustment during installation and future suspension alignment.

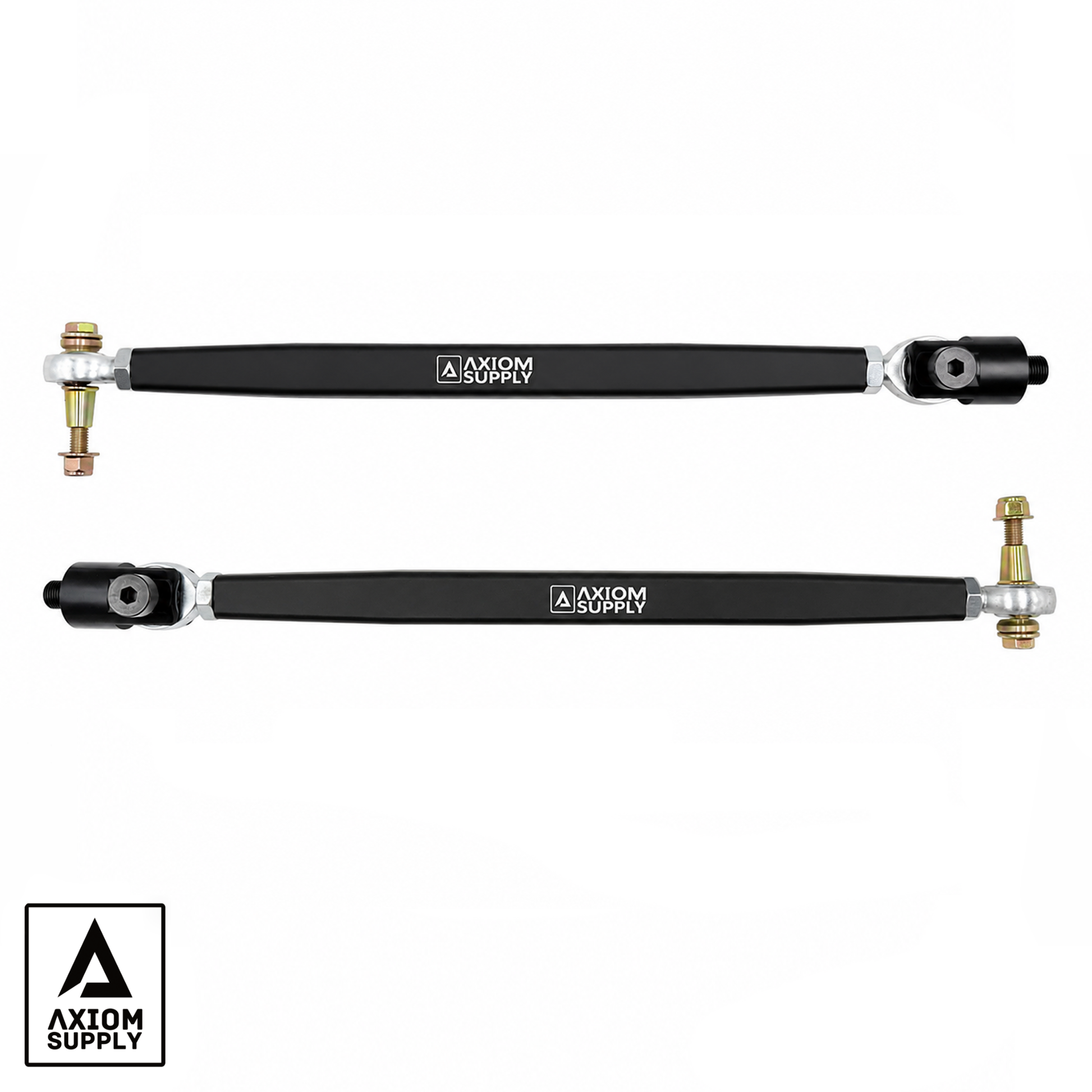

Complete Left- and Right-Side System – Includes the tie-rod bodies, heim joints, adapters, spacers, and mounting hardware required to upgrade both sides of the vehicle.

Description

The Axiom Supply Heavy-Duty Tie Rod System was developed for Polaris owners who need a stronger and more precise steering system than the lightweight factory tie rods can provide.

The system is built around precision-machined 6061-T6 billet aluminum tie-rod bodies paired with heavy-duty 5/8-inch chromoly heim joints. This combination provides increased rigidity, reduced steering deflection, and the articulation required for aggressive trail riding, rock crawling, high-speed desert driving, larger tires, and modified suspension systems.

At the steering rack, black zinc-plated clevis adapters attach through the factory M16 × 1.5 mounting points. Each clevis captures the inner heim joint from both sides, distributing steering loads through a strong and properly supported connection.

At the spindle, precision-machined tapered lower misalignment spacers seat securely inside the factory openings. Matching upper spacers correctly position the outer heim joints and provide the clearance necessary for smooth steering articulation. High-strength Grade 10.9 flange bolts and locking flange nyloc nuts securely hold the outer assemblies together.

Every mounting component is protected with either a black zinc or gold zinc corrosion-resistant finish. This provides lasting protection against mud, water, moisture, and the demanding conditions encountered during off-road use.

The result is a complete steering upgrade designed to deliver responsive handling, dependable strength, and long-term durability for compatible Polaris RZR and General applications.

Includes

(2) Axiom Supply 6061-T6 billet aluminum tie-rod bodies

(4) 5/8-inch-bore chromoly heim joints

(2) Black zinc-plated inner clevis adapters

(2) Black zinc-plated M16 × 1.5 steering-rack bolts

(2) Inner 5/8-inch heim-joint mounting bolts with matching hardware

(2) Gold zinc-plated tapered lower misalignment spacers

(2) Gold zinc-plated upper misalignment spacers

(2) Gold zinc-plated Grade 10.9 outer flange bolts

(2) Matching gold zinc-plated flange nyloc nuts

Required jam nuts and installation hardware

One complete system services both the driver and passenger sides of the vehicle.

The Axiom No-Nonsense Lifetime Warranty

Our suspension and steering components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.

Push it to the limit—we don’t care.
If the part lets you down, we will make it up to you!
