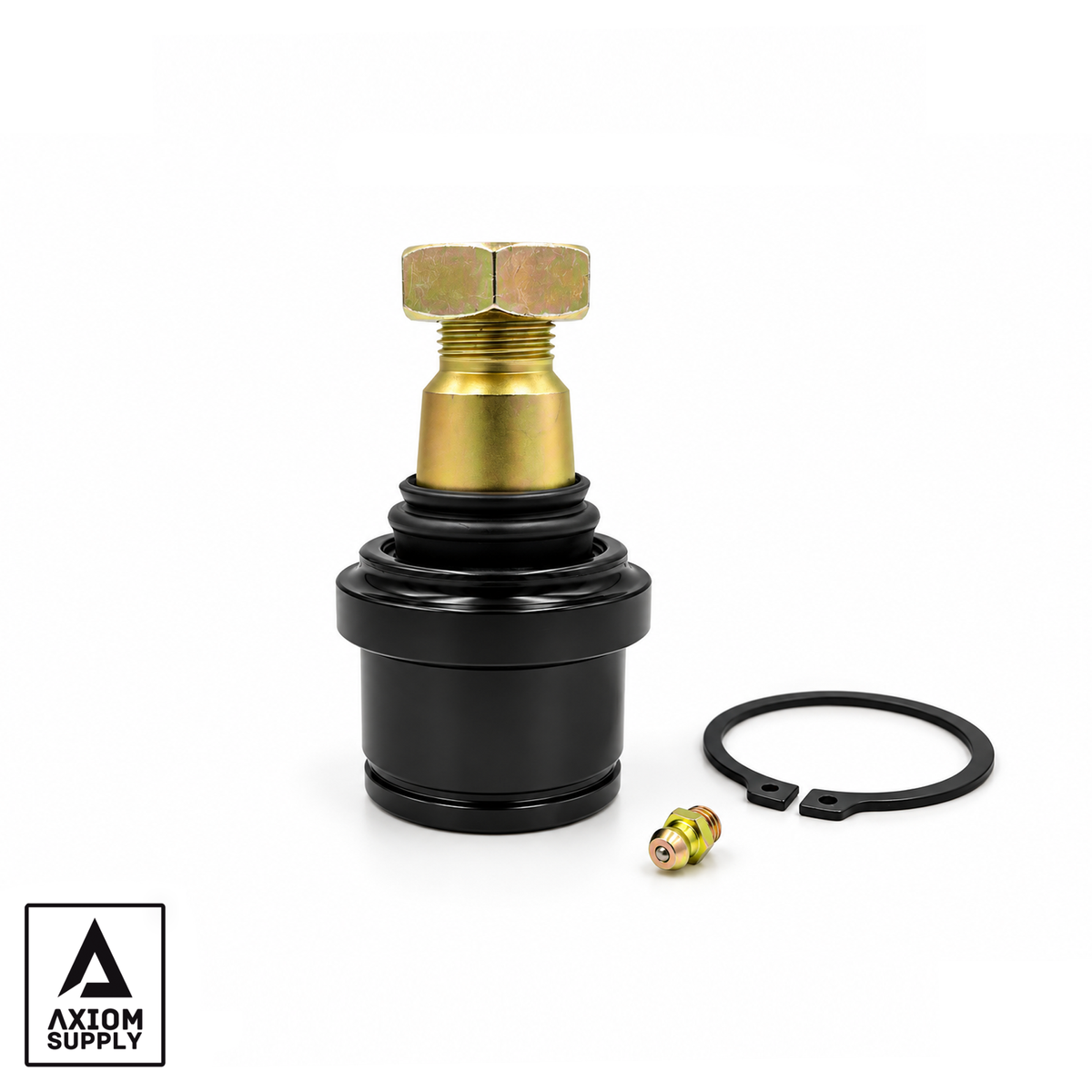

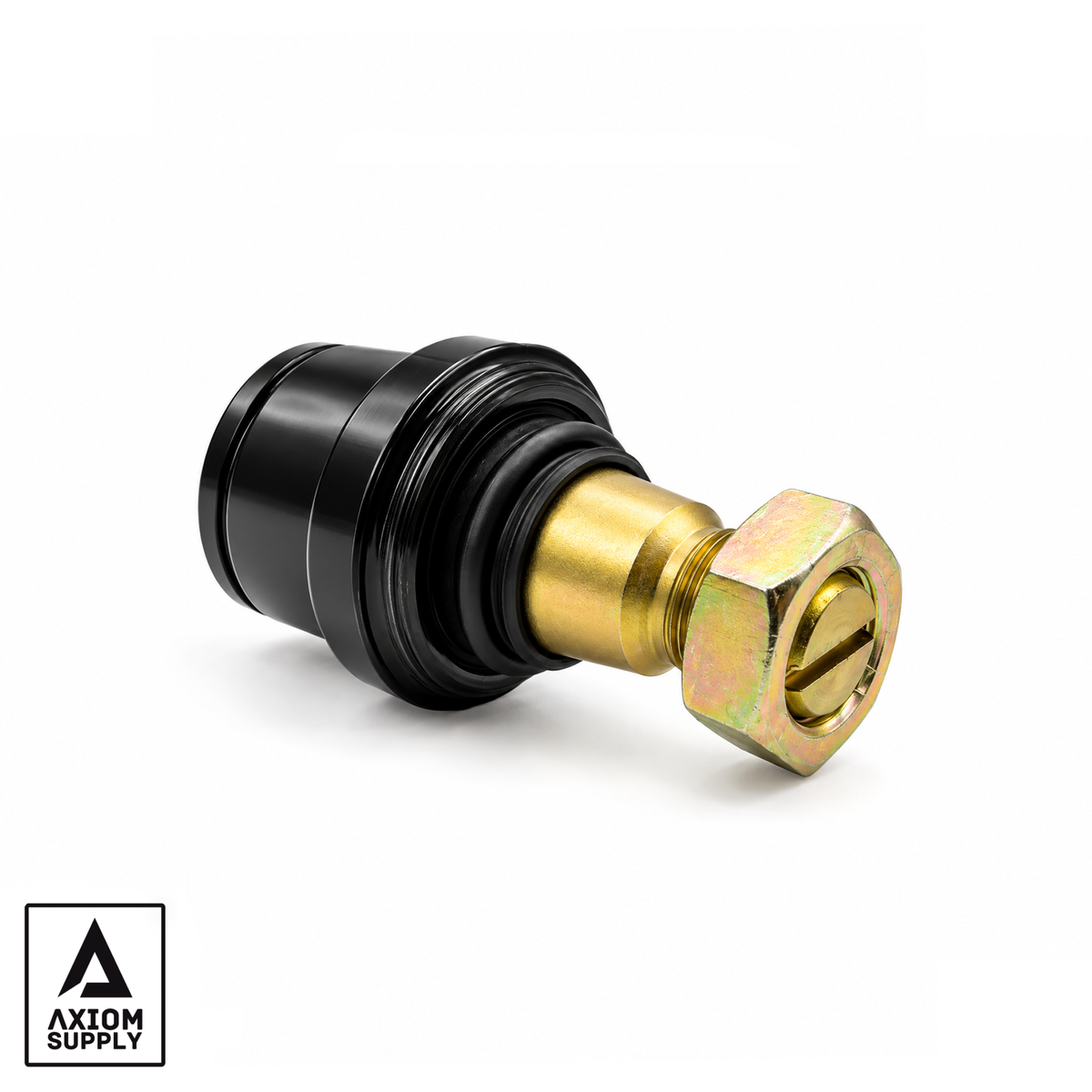

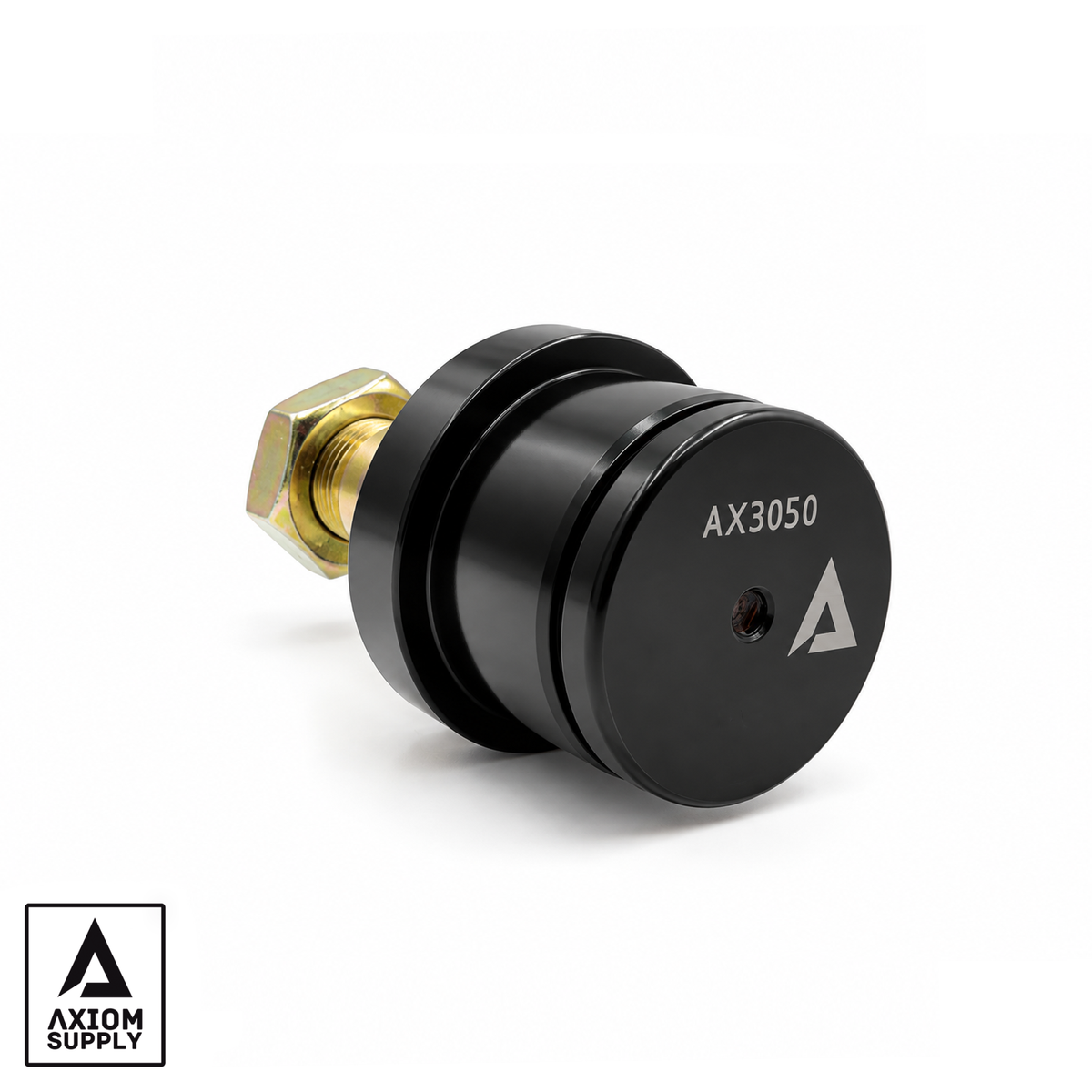

Axiom Supply Lower Ball Joint Ford Super Duty F250-F350 4WD 2023-2026

Fitment

The Axiom Supply AX3050 Heavy-Duty Lower Ball Joint is a direct-fit replacement for the factory OE-style lower ball joint used on 2023–2026 Ford F-250 and F-350 Super Duty 4WD trucks.

Designed to install directly in place of the factory lower ball joint and share the same OE-style fitment as Ford PC3Z-3050-A / Motorcraft MCF-2605.

Fits the front lower driver or passenger side.

Ford Super Duty

2023–2026 Ford F-250 Super Duty 4WD

2023–2026 Ford F-350 Super Duty 4WD

Fitment Notes

Direct replacement anywhere the applicable Ford PC3Z-3050-A / Motorcraft MCF-2605 OE-style lower ball joint is used.

Designed for installation into the factory front steering knuckle using the original-style ball joint configuration.

Fits either the driver or passenger side. One ball joint is required per side.

For aftermarket steering knuckles or modified front axle assemblies, verify compatibility with the factory PC3Z-3050-A-style lower ball joint before ordering.

Features

Grade 12.9 Extreme-Duty Ball Stud — Engineered for exceptional tensile strength, fatigue resistance, and durability under extreme front-end loads.

Forged Steel Housing — Manufactured from high-strength forged steel to withstand the demands of towing, hauling, oversized tires, lifted suspensions, and off-road use.

High-Articulation Design — Provides additional operating range to accommodate suspension and steering movement while maintaining consistent joint engagement.

Precision Internal Bearing Assembly — Designed for smooth steering response, reduced deflection, and long-term durability.

Self-Compensating Load System — Maintains proper internal loading as components wear to help preserve steering precision and minimize unwanted play.

Greaseable Construction — Fully serviceable design allows periodic maintenance to maximize ball joint life.

Corrosion-Resistant Finish — Protective coatings help defend against rust, road salt, moisture, and harsh operating environments.

OE-Style Direct Fit — Engineered around the factory lower ball joint dimensions for straightforward replacement without modification.

Description

The Axiom Supply AX3050 was developed to deliver an exceptionally strong, serviceable lower ball joint for the latest generation of Ford F-250 and F-350 Super Duty 4WD trucks.

Designed around the factory PC3Z-3050-A lower ball joint configuration, the AX3050 provides direct OE-style fitment for applicable 2023–2026 Super Duty 4WD applications.

At the heart of the design is a Grade 12.9 Extreme-Duty Ball Stud, paired with a forged steel housing and precision-engineered internal components. This heavy-duty construction is designed to handle the increased suspension and steering loads associated with larger tires, leveling and lift kits, heavy towing, hauling, and demanding off-road use.

The self-compensating internal load system helps maintain consistent bearing contact as the joint wears, supporting precise steering feel and long-term durability. High-articulation geometry allows smooth movement throughout the joint's operating range, while the greaseable construction makes routine service straightforward.

Whether your Super Duty spends its life towing, hauling, working, running oversized tires, or exploring off-road, the AX3050 combines heavy-duty materials, OE-style fitment, serviceable construction, and the confidence of Axiom's No-Nonsense Lifetime Warranty.

Maintenance

Apply 2–3 pumps of grease during installation.

For continued performance, service with 1–2 pumps of grease every 5,000–7,000 miles, or as required based on vehicle use and operating conditions.

Avoid excessive greasing, as the dust boot is designed to exclude contaminants rather than retain excessive lubricant.

Periodically inspect the ball joint and surrounding suspension components, particularly on vehicles equipped with oversized tires, modified suspension, or used regularly for towing or off-road driving.

Includes

(1) Axiom Supply AX3050 Heavy-Duty Lower Ball Joint — Sold Individually

Grease Fitting

Ball Joint Stud Nut

Retaining Hardware

Installation

The AX3050 is designed as a direct replacement for the factory lower ball joint on applicable 2023–2026 Ford Super Duty 4WD trucks.

Use a suitable ball joint press and follow the applicable Ford service procedures during removal and installation.

Final tightening must follow the proper torque specification for the supplied ball joint hardware. Always use a calibrated torque wrench for final tightening.

Important: Do not use impact tools for final tightening of ball joint hardware.

Interchange

Axiom Supply

AX3050

Ford Original Equipment Cross-Reference

PC3Z-3050-A

Motorcraft Cross-Reference

MCF-2605

The AX3050 is designed to interchange with the factory lower ball joint used on applicable 2023–2026 Ford F-250 and F-350 Super Duty 4WD trucks.

At this time, aftermarket interchange numbers should not be assumed equivalent unless they are specifically verified against the PC3Z-3050-A / MCF-2605 application.

Part numbers are provided for application cross-reference. Verify the vehicle's model year, drivetrain, and lower ball joint configuration before ordering.

The Axiom No-Nonsense Lifetime Warranty

Our suspension components are warranted for life to the original purchaser against manufacturer defects, premature wear, or breakage.

Push it to the limit—we don’t care.

If the part lets you down, we’ll make it right.
