Axiom Supply Lifetime Warranty Wheel Bearing Assembly Toyota Tundra / Sequoia 2007 - 2022

Fitment

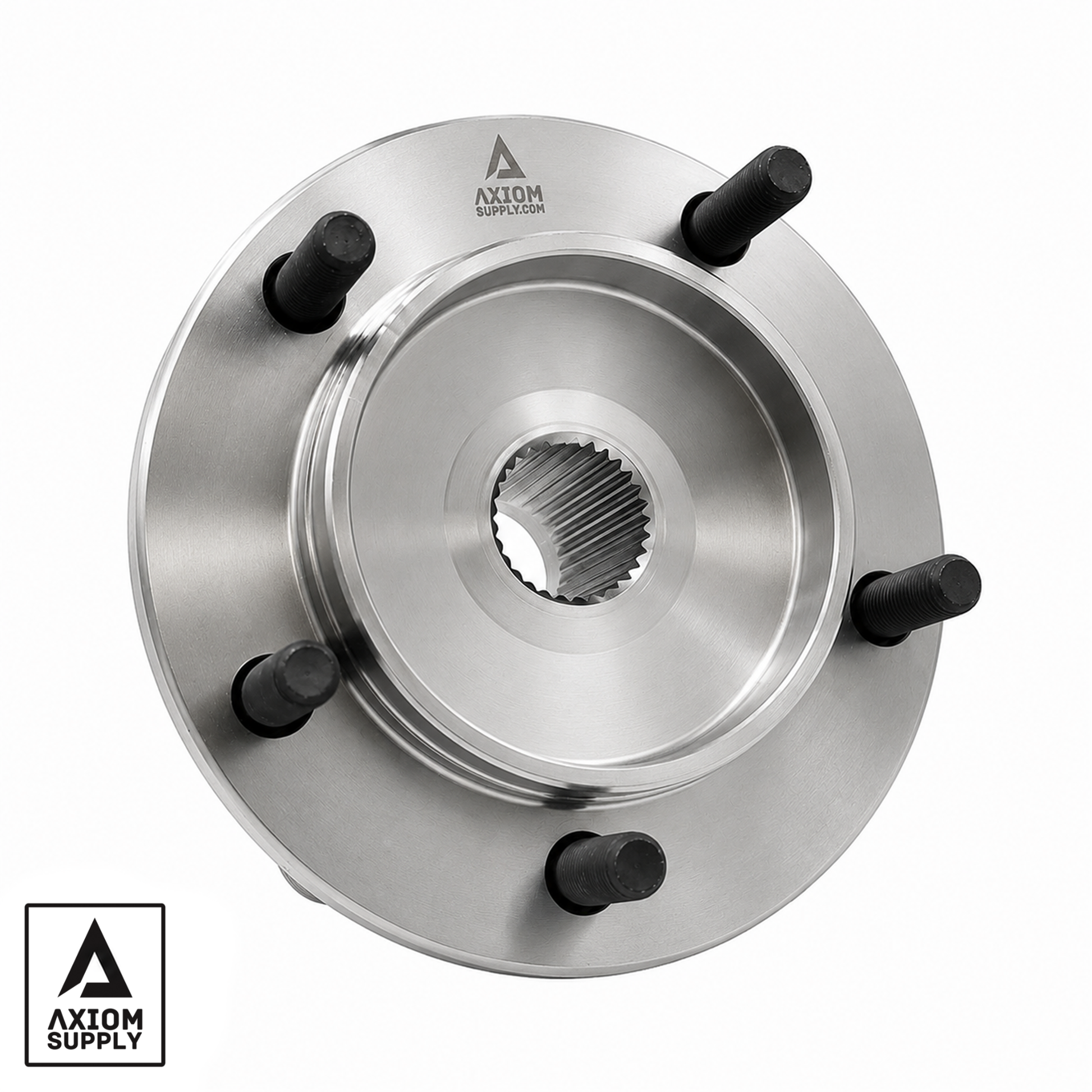

This premium front wheel hub and bearing assembly fits 2007–2018 Toyota Tundra 4WD trucks and 2008–2018 Toyota Sequoia 4WD SUVs. It installs on the front left or front right position and features a splined 4WD hub, magnetic ABS encoder, 5x150 wheel bolt pattern, and M14x1.5 wheel studs.

This assembly is designed for four-wheel-drive models only. It does not fit 2WD or rear-wheel-drive models.

Toyota Tundra

2007 – 2018 Toyota Tundra 4WD

Toyota Sequoia

2008 – 2018 Toyota Sequoia 4WD

Features

Precision Tapered Roller Bearings – Engineered with high-performance grease for smooth, maintenance-free operation.

Premium Hardware – Grade 10.9 cold-formed, zinc-plated studs deliver exceptional tensile strength and corrosion protection.

Durable ABS Sensor – Built to maintain accurate signal transmission in heat, mud, and moisture.

4WD Splined Hub Design – Features a 36-spline center opening designed to accept the front CV axle shaft on compatible four-wheel-drive models.

Configuration – 5x150 wheel bolt pattern with five M14x1.5 wheel studs.

Description

The Axiom Supply Bearing Assembly is built for professionals who demand reliability from their heavy-duty trucks.

Developed with a proprietary bearing and hub structure, this assembly reduces hub-face deflection under load—ensuring tighter steering response, improved braking stability, and enhanced durability even under the stress of towing, oversized tires, or lifted suspension setups.

Each assembly comes as a complete bolt-in unit, compatible with both left and right spindles. Installation typically takes about 2 hours and requires no special modifications.

Whether your truck works hard on the job site or conquers rough terrain on weekends, Axiom Supply bearing assemblies deliver the strength, precision, and longevity serious truck owners rely on.

Includes

(1) Front Wheel Bearing and Hub Assembly

(5) Preinstalled M14x1.5 Wheel Studs

(4) Preinstalled Hub-Mounting Bolts

Torque Specifications

Axle Nut: 249 ft-lbs / 338 N·m

Spindle Bolts: 73 ft-lbs / 99 N·m

Main Caliper Bolts: 133 ft-lbs / 180 N·m

Aluminum-Wheel Lug Nuts: 97 ft-lbs / 131 N·m

Steel-Wheel Lug Nuts: 154 ft-lbs / 209 N·m

Use a 39 mm socket for the front axle nut. Clean the axle and axle-nut threads before installation, keep the threads free from oil, and install a new cotter pin after torquing.

Torque specifications can vary by exact model year, wheel type, and factory configuration. Always verify specifications using the service information for the vehicle being repaired.

Installation Guide Here

Interchange

Toyota OE 43570-0C010, Toyota OE 43502-0C031, MOOG 515202, SKF BR930981, Dorman 950-002, BCA WE60786, Mevotech H515103, Precision 515103, MasterPro 50002, Axiom AX515202

The Axiom No-Nonsense Lifetime Warranty

Our suspension and steering components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.

Push it to the limit—we don’t care.
If the part lets you down, we will make it up to you!
