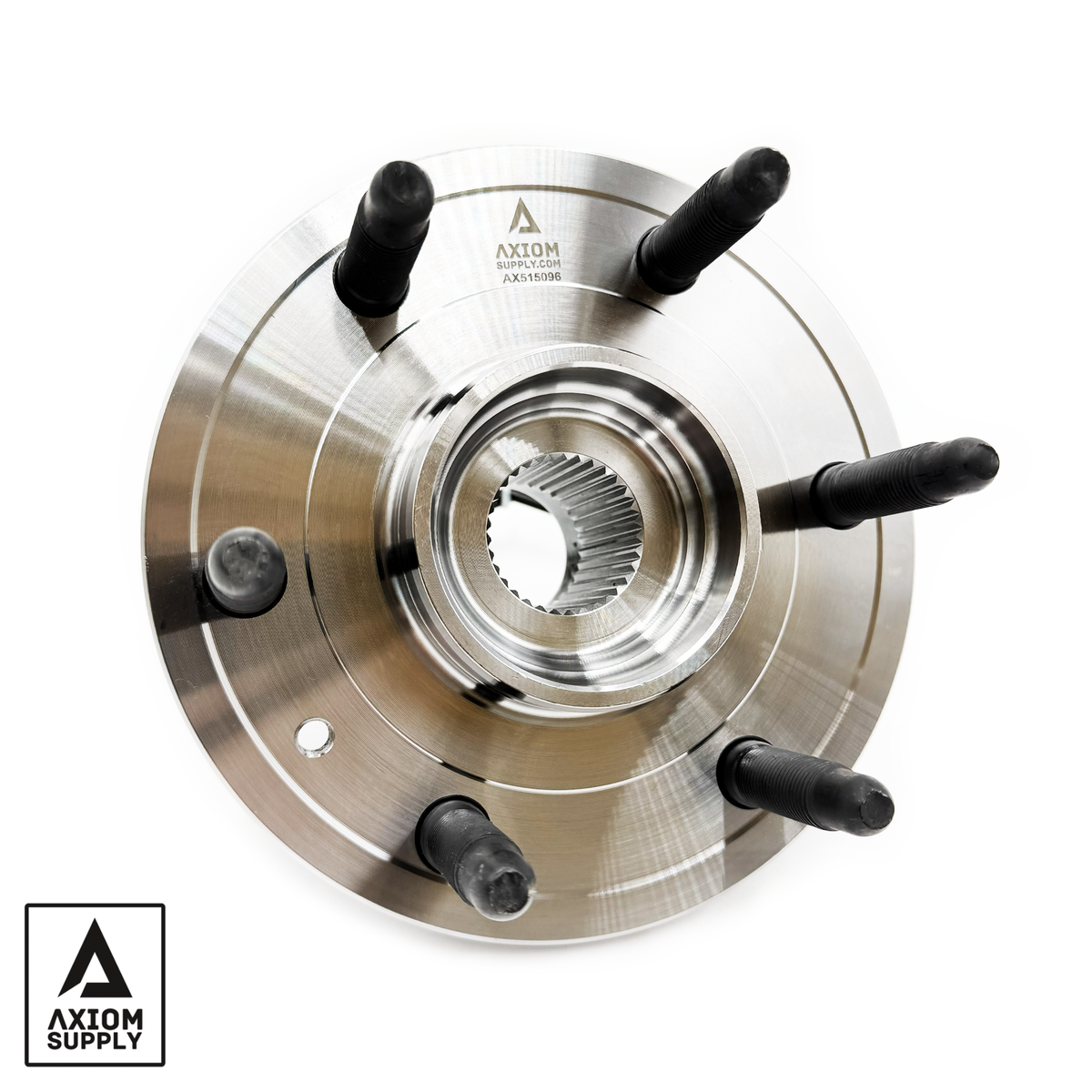

Axiom Supply Lifetime Warranty Wheel Bearing Assembly Ram Truck 2019-2024 1500

Fitment

This premium front wheel bearing and hub assembly is designed specifically for 2019–2024 Ram 1500 4WD trucks on the fifth-generation DT platform equipped with the corresponding 6-lug front hub configuration and without factory 22-inch wheels.

Ram 1500 4WD – DT / New Body Style

2019

2020

2021

2022

2023

2024

Fits applicable Tradesman, Big Horn / Lone Star, Laramie, Longhorn, Limited, Rebel, Sport, and TRX configurations when originally equipped with the corresponding 4WD hub assembly and without factory 22-inch wheels.

Important Fitment Notes

Designed for 4WD applications only.

Fits the front driver or passenger side.

Designed for trucks equipped with the 6-lug 6×5.5" (6×139.7 mm) wheel configuration.

Does NOT fit 2019–2024 Ram 1500 Classic models. The Ram 1500 Classic uses the previous-generation DS platform and a different 5-lug front hub assembly.

Does NOT fit trucks equipped with factory 22-inch wheels. Those applications use the corresponding 515178-style hub assembly.

For RWD / 2WD trucks without factory 22-inch wheels, the corresponding 515180-style hub assembly is required.

Features a 90 mm (3.54") knuckle pilot and 33-spline center designed for the DT-platform 4WD front CV axle system.

Features

Precision Tapered Roller Bearings – Engineered with premium high-performance grease for smooth operation, controlled preload, reduced friction, and long-term wheel-end durability.

Integrated ABS Sensor – Built-in wheel speed sensor and wiring harness provide accurate ABS and vehicle stability-control signal transmission while resisting heat, moisture, dirt, and demanding road conditions.

33-Spline 4WD Hub Design – Precision-machined internal splines provide proper engagement with the factory front CV axle used on Ram 1500 DT 4WD applications.

Heavy-Duty Hub Construction – Engineered to maintain proper bearing preload and minimize hub-face movement under braking, cornering, towing, oversized tire loads, and off-road use.

Premium Wheel Studs – Equipped with six factory-style M14×1.50 wheel studs for direct compatibility with the original DT-platform wheel and lug nut configuration.

Direct Bolt-In Design – Complete hub and bearing assembly installs directly into the factory steering knuckle with no modifications required.

Configuration – 6×5.5" (6×139.7 mm) bolt pattern, six M14×1.50 wheel studs, 33 splines, 90 mm knuckle pilot, 3-bolt mounting flange, and integrated ABS sensor with wiring harness.

Description

The Axiom Supply AX515179 Wheel Bearing & Hub Assembly is engineered specifically for 2019–2024 fifth-generation Ram 1500 DT 4WD trucks requiring the corresponding 6-lug front hub configuration without factory 22-inch wheels.

Developed with Axiom Supply's premium bearing and hub construction, this assembly is designed to maintain proper bearing preload and minimize hub-face deflection under load—helping provide tighter steering response, consistent braking performance, and dependable wheel-end durability.

The AX515179 features a precision-machined 33-spline center, integrated ABS wheel speed sensor and wiring harness, heavy-duty bearing construction, and the factory-style 6×5.5" wheel bolt pattern used on the fifth-generation Ram 1500.

Each assembly comes as a complete direct-fit bolt-in unit and can be installed on either the front driver or passenger side.

Whether your Ram is a daily driver, work truck, tow vehicle, lifted truck, or spends its weekends off pavement, Axiom Supply bearing assemblies are built to deliver the strength, precision, and longevity serious truck owners expect.

Includes

One Axiom Supply AX515179 Front Wheel Bearing & Hub Assembly with integrated ABS sensor and wiring harness and six factory-style M14×1.50 wheel studs.

Torque Specifications

Front Axle / CV Shaft Nut: approximately 184–185 lb·ft (250 Nm)

Wheel Lug Nuts: 130 lb·ft (176 Nm)

Hub/Bearing-to-Knuckle Fasteners: Verify the factory service procedure for the exact model year and configuration before installation.

Front Brake Caliper / Adapter Fasteners: Verify the factory service procedure for the exact brake package before installation.

Because the fifth-generation DT platform uses a different steering knuckle and hub mounting system than the previous-generation Ram 1500 / Ram 1500 Classic, do not use older DS-platform torque specifications when installing this hub.

Always confirm torque specifications for the exact year, drivetrain, brake package, suspension configuration, and vehicle before installation.

Interchange

Mopar 68237141AA, Mopar 68237141AB, Mopar 68237141AC, Mopar 68237141AD, Mopar 68237141AE, Mopar 68237141AF, Mopar 68237141AG, Mopar 68237141AH, MOOG 515179, Timken HA590882, SKF BR931174, BCA WE62010, Mevotech MB25325, Mevotech TXF25325, GMB 720-3300, WJB WA515179, WJB WA515179HD, Carquest 94-704843, NSK 78KWKHS137, Axiom AX515179

The Axiom No-Nonsense Lifetime Warranty

Our wheel bearing assemblies are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.

Push it to the limit—we don’t care.

If the part lets you down, we will make it up to you!
