Axiom Supply Lifetime Warranty Wheel Bearing Assembly Ram Truck 2006-2009 1500

Fitment

This wheel bearing and hub assembly is designed to fit 2006-2008 Dodge Ram 1500 trucks equipped with 5-lug wheels and 4-wheel ABS, plus certain early-production 2009 models.

Dodge Ram 1500 4WD

2006-2008

Early 2009 models built through December 7, 2008

Dodge Ram 1500 2WD

2006-2008 models equipped with 5-lug wheels and 4-wheel ABS

Early 2009 models built through December 7, 2008

Important Fitment Notes

Designed for 5-lug, 4-wheel ABS applications.

Fits the front driver or passenger side.

For 2006-2008 trucks with 2-wheel ABS and 5-lug wheels, a different hub assembly is required.

For 2006-2008 trucks equipped with 8-lug wheels, a different hub assembly is required.

For 2009 Ram 1500 models built December 8, 2008 and later, a different hub assembly is required.

Features

Precision Tapered Roller Bearings – Engineered with premium high-performance grease for smooth operation, controlled preload, and long-term durability.

Integrated ABS Sensor – Built-in wheel speed sensor provides accurate ABS signal transmission while standing up to heat, moisture, dirt, and demanding driving conditions.

33-Spline Hub Design – Precision-machined splines provide proper engagement with the factory front drivetrain components.

Heavy-Duty Hub Construction – Engineered to maintain bearing preload and reduce hub-face movement under braking, cornering, towing, and off-road loads.

Premium Wheel Studs – Equipped with five factory-style 9/16"-18 wheel studs for direct compatibility with the original wheel and lug nut configuration.

Direct Bolt-In Design – Complete hub and bearing assembly installs directly into the factory steering knuckle with no modifications required.

Configuration – 5×5.5" (5×139.7 mm) bolt pattern, 9/16"-18 wheel studs, 33 splines, 3-bolt mounting flange, integrated ABS sensor. Timken's SP500101 interchange confirms the 5.5-inch bolt circle, five 9/16"-18 studs, 33 splines, tapered bearing construction, and ABS configuration.

Description

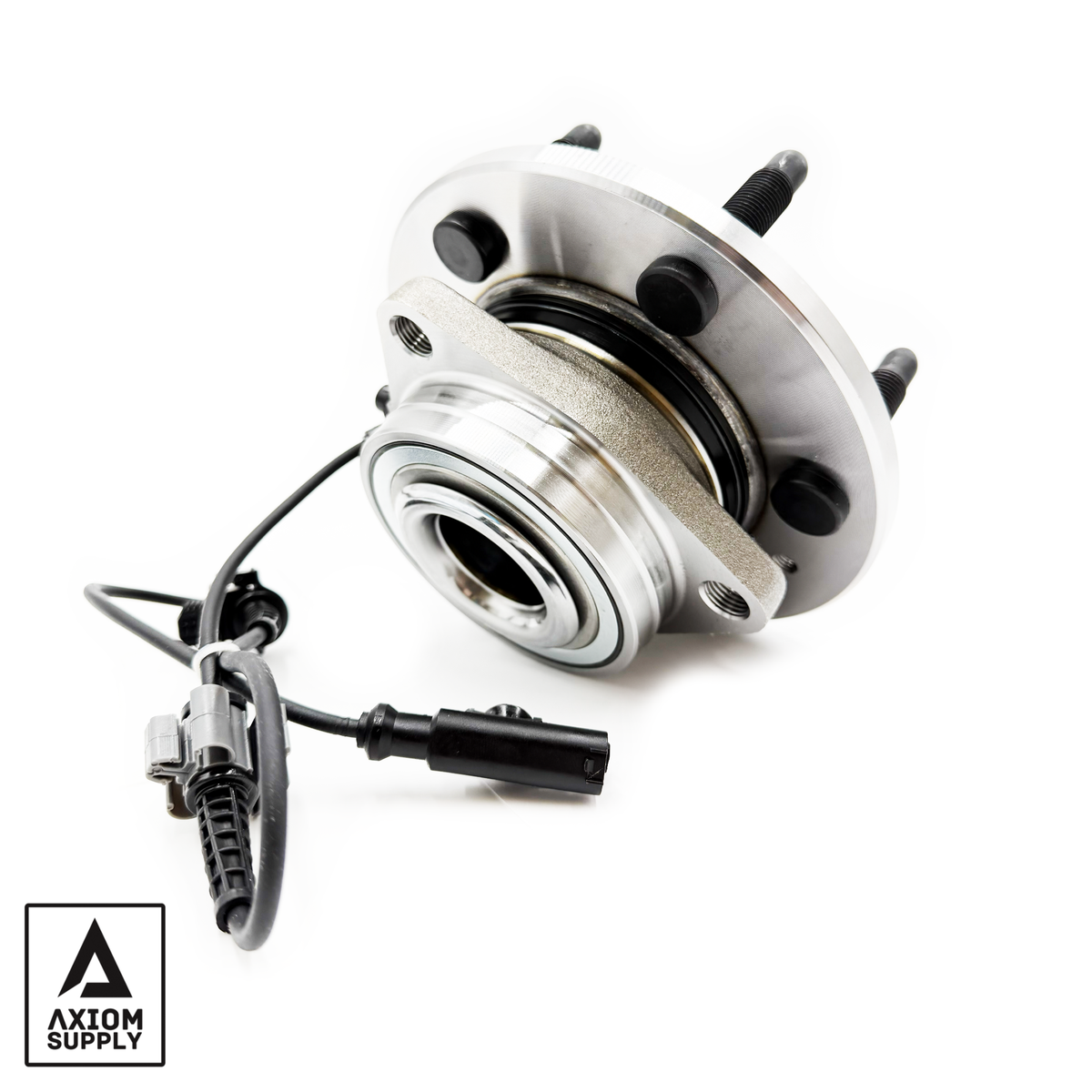

The Axiom Supply AX515113 Wheel Bearing & Hub Assembly is engineered for 2006-2008 Dodge Ram 1500 trucks requiring the 5-lug, 4-wheel ABS hub configuration, as well as applicable early-production 2009 models.

Developed with Axiom Supply's premium bearing and hub construction, this assembly is designed to maintain proper bearing preload and minimize hub-face deflection under load—helping provide tighter steering response, consistent braking performance, and dependable wheel-end durability.

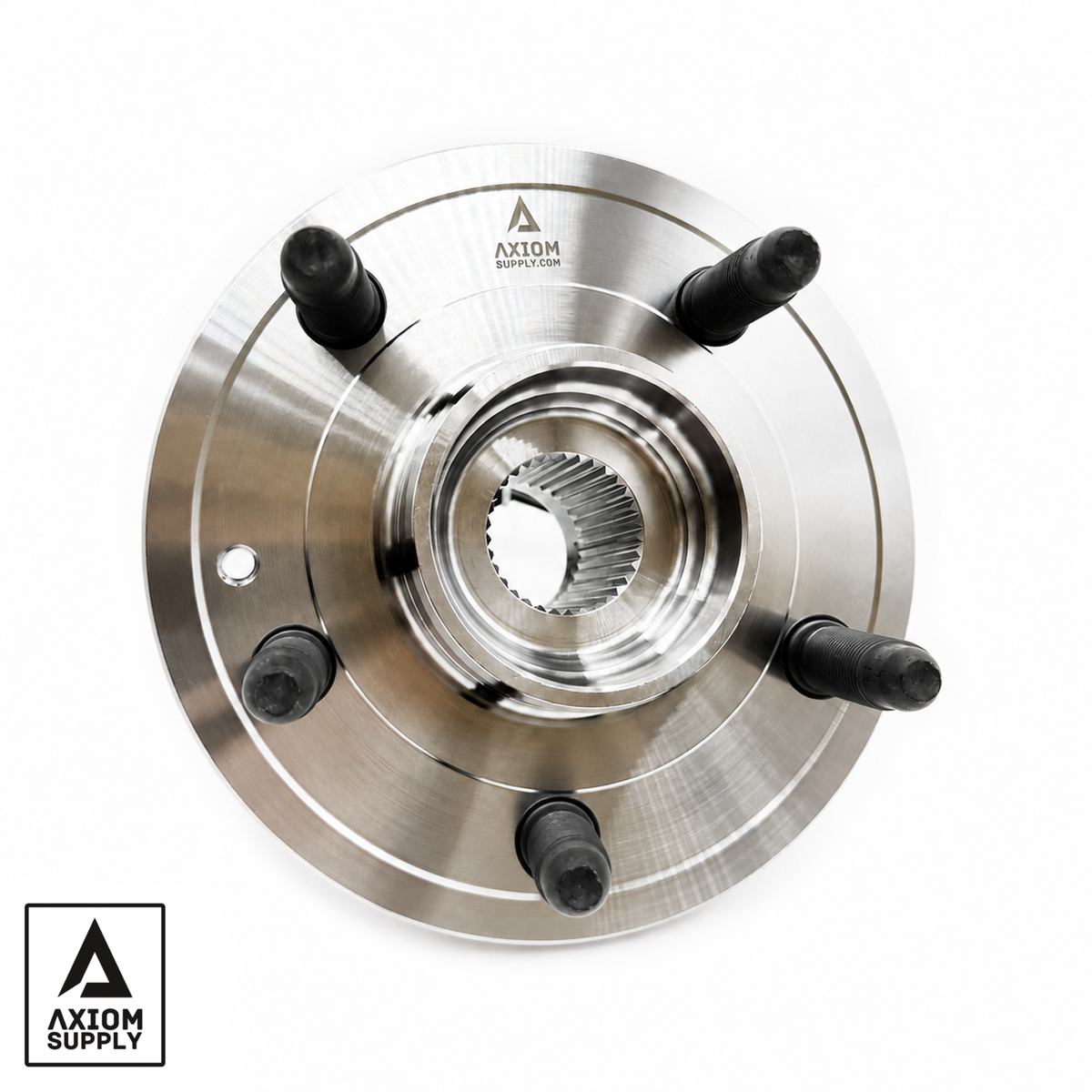

The AX515113 features a precision-machined 33-spline center, integrated ABS wheel speed sensor, heavy-duty tapered roller bearing design, and factory-style 5×5.5" wheel bolt pattern.

Each assembly comes as a complete direct-fit bolt-in unit and can be installed on either the front driver or passenger side.

Whether your Ram is a daily driver, work truck, tow vehicle, or spends its weekends off pavement, Axiom Supply bearing assemblies are built to deliver the strength, precision, and longevity serious truck owners expect.

Includes

One Axiom Supply AX515113 Front Wheel Bearing & Hub Assembly with integrated ABS sensor and wiring harness and factory-style 9/16"-18 wheel studs.

Torque Specifications

Axle / CV Shaft Nut (4WD): 185 lb·ft

Hub/Bearing-to-Knuckle Bolts: 120 lb·ft

Front Caliper Adapter-to-Knuckle Bolts: 130 lb·ft

Wheel Lug Nuts: 130 lb·ft

These values are documented for the 2006 Ram 1500 4WD hub replacement procedure; the 2008 and 2009 service information also specifies 185 lb·ft for the halfshaft nut and 120 lb·ft for the hub mounting bolts. Always confirm specifications for the exact year and vehicle configuration before installation.

Interchange

Chrysler / Mopar 52070323AE, 52070323AF, 52070323AG, 52070323AH, 68088025AA, MOOG 515113, Timken SP500101, SKF BR930690, BCA WE61654, NTN WE61654, Mevotech H515113, Mevotech G515113, Centric 402.67022, Centric 402.67022E, Dorman 930-618, GMB 720-3010, DuraGo 295-15113, GSP 126113, Axiom AX515113.

The Axiom No-Nonsense Lifetime Warranty

Our wheel bearing assemblies are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.

Push it to the limit—we don’t care.
If the part lets you down, we will make it up to you!
