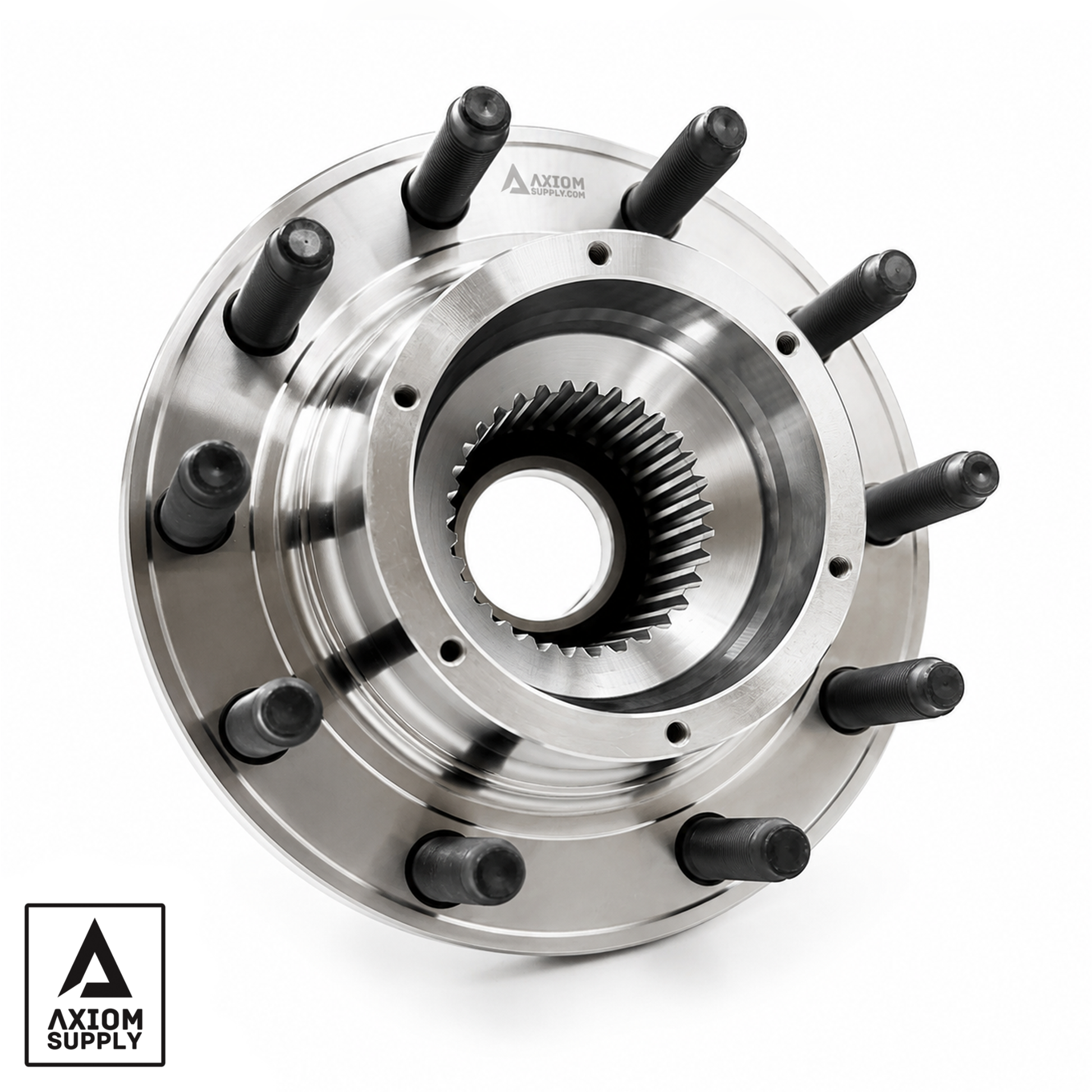

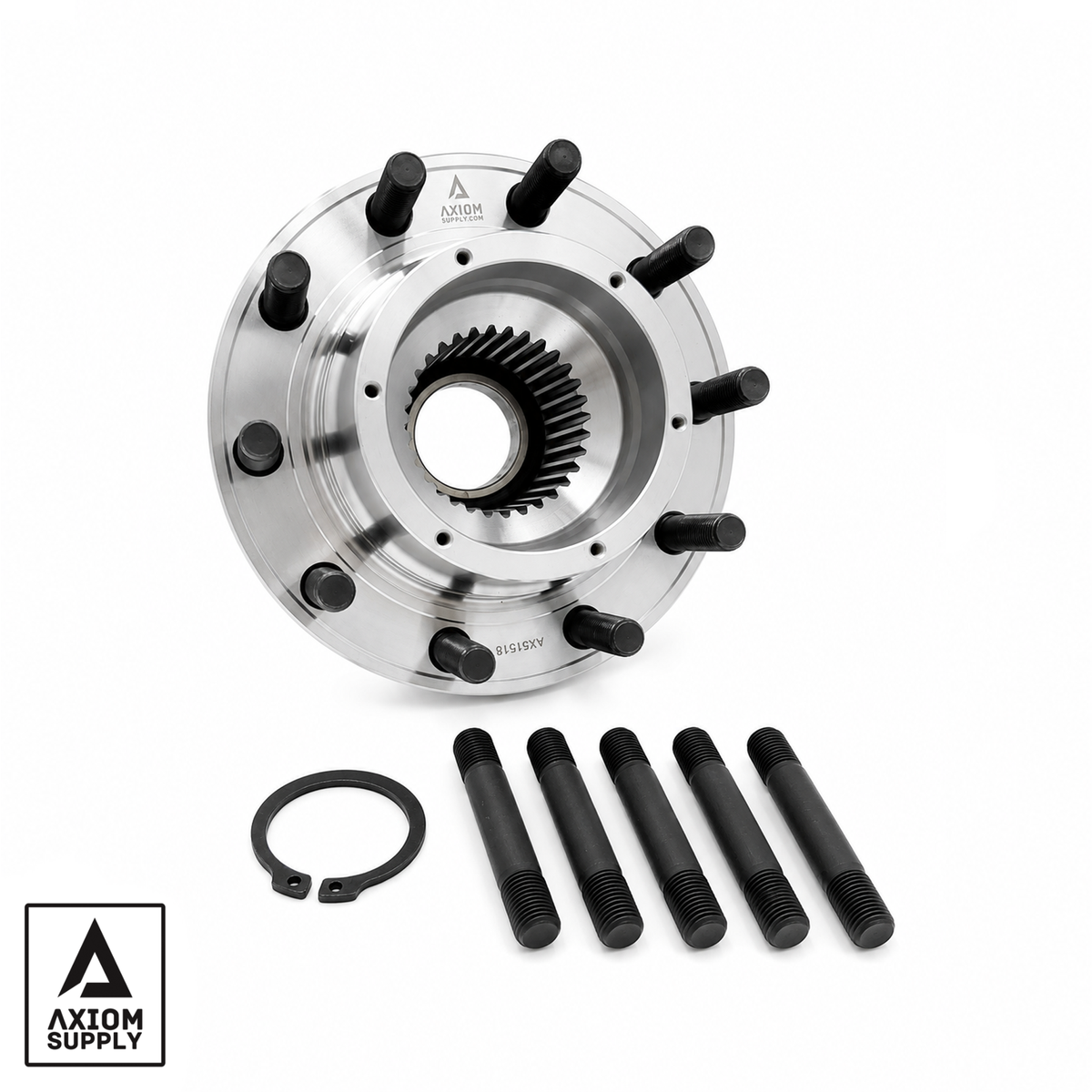

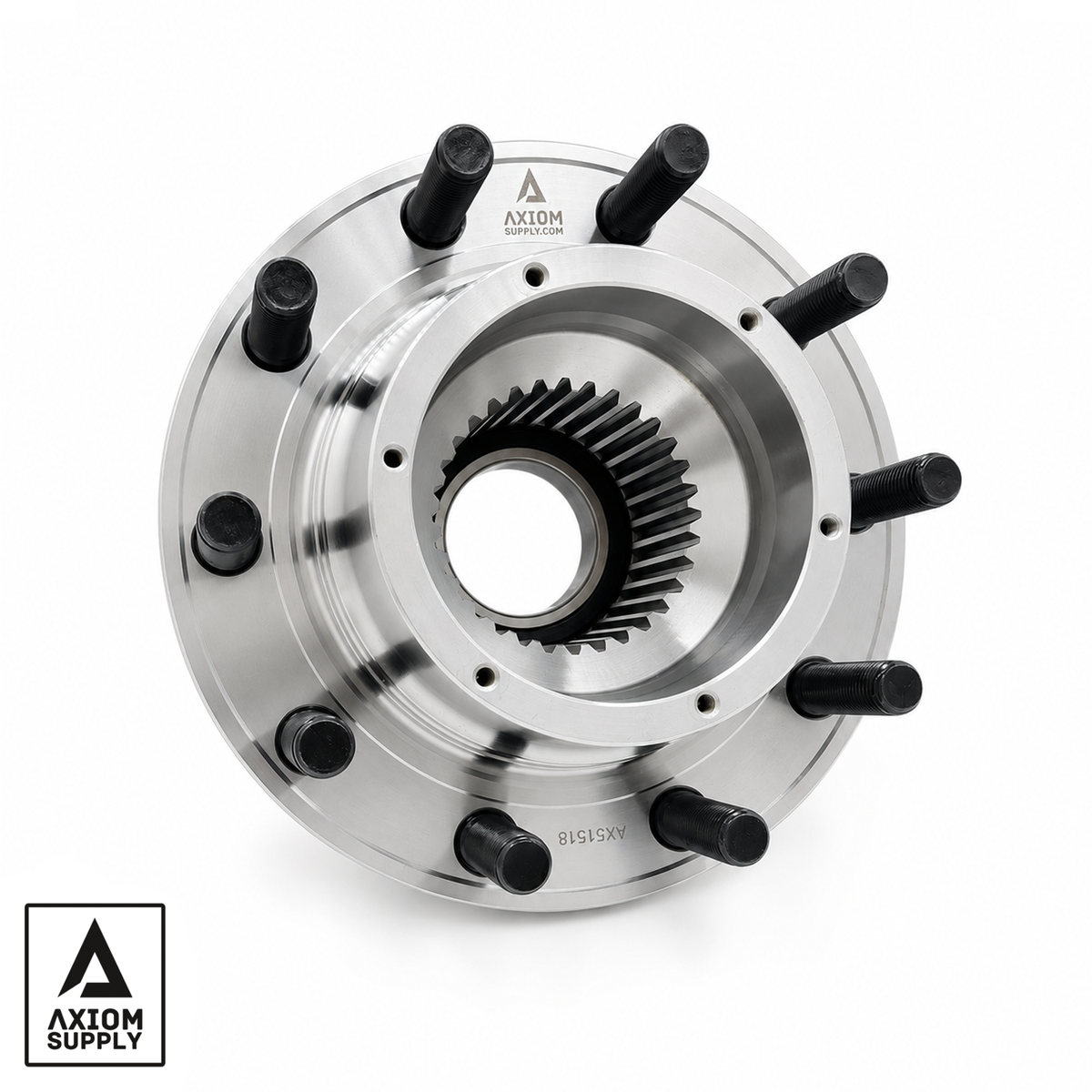

Axiom Supply Lifetime Warranty Wheel Bearing Assembly Ford F450-F550 4WD 2017-2019

Fitment

This wheel bearing assembly is designed to fit a range of vehicles including Ford Super Duty Pick Up F450-F550 4WD 2017-2019

Features

Precision Tapered Roller Bearings – Engineered with high-performance grease for smooth, maintenance-free operation.

Premium Hardware – Grade 10.9 cold-formed, zinc-plated studs deliver exceptional tensile strength and corrosion protection.

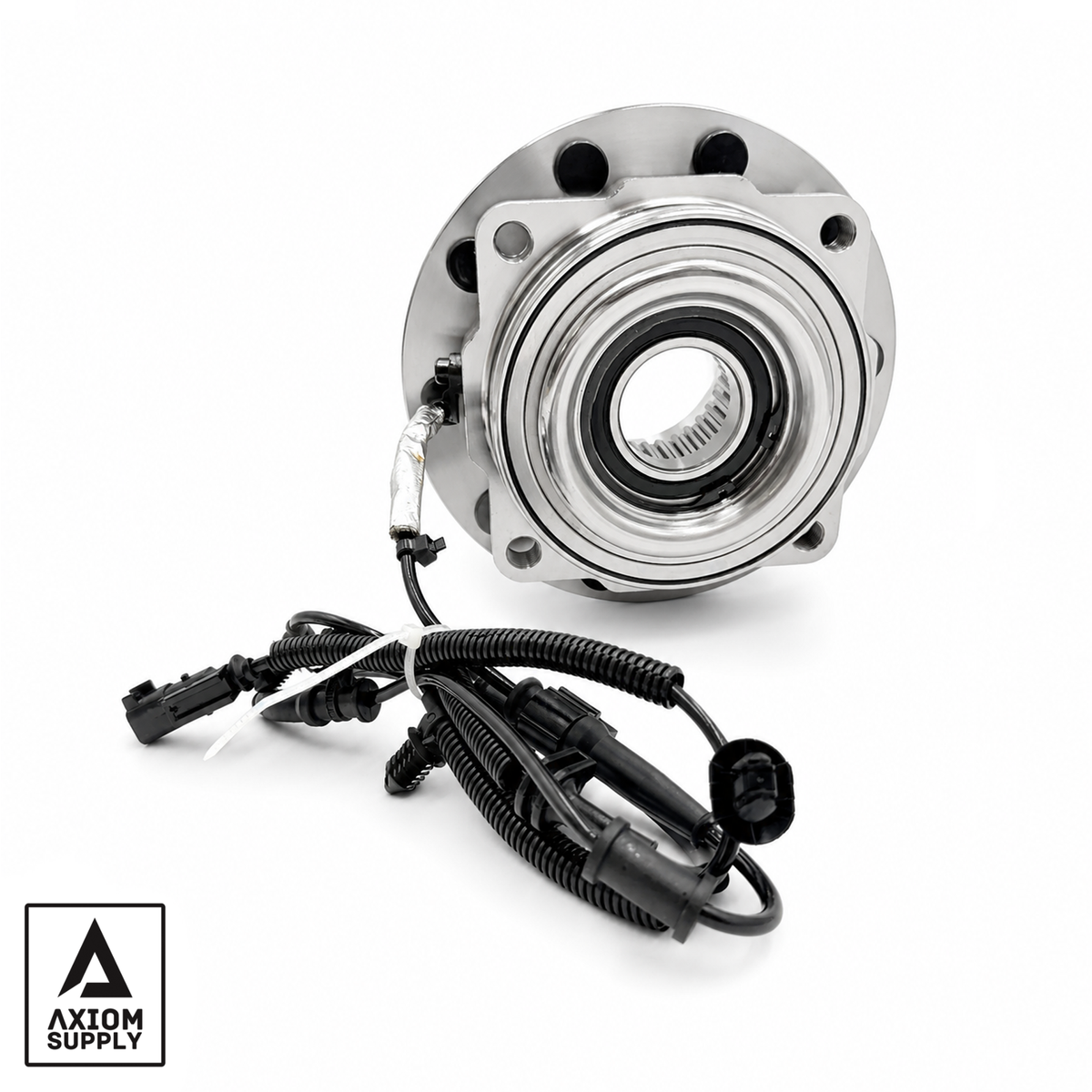

Durable ABS Sensor – Built to maintain accurate signal transmission in heat, mud, and moisture.

Configuration – 10×170 M14-2.0 lug studs.

Description

The Axiom Supply Bearing Assembly is built for professionals who demand reliability from their heavy-duty trucks.

Developed with a proprietary bearing and hub structure, this assembly reduces hub-face deflection under load ensuring tighter steering response, improved braking stability, and enhanced durability even under the stress of towing, oversized tires, or lifted suspension setups.

Each assembly comes as a complete bolt-in unit, compatible with both left and right spindles. Installation typically takes about 2 hours and requires no special modifications.

Whether your truck works hard on the job site or conquers rough terrain on weekends, Axiom Supply bearing assemblies deliver the strength, precision, and longevity serious truck owners rely on.

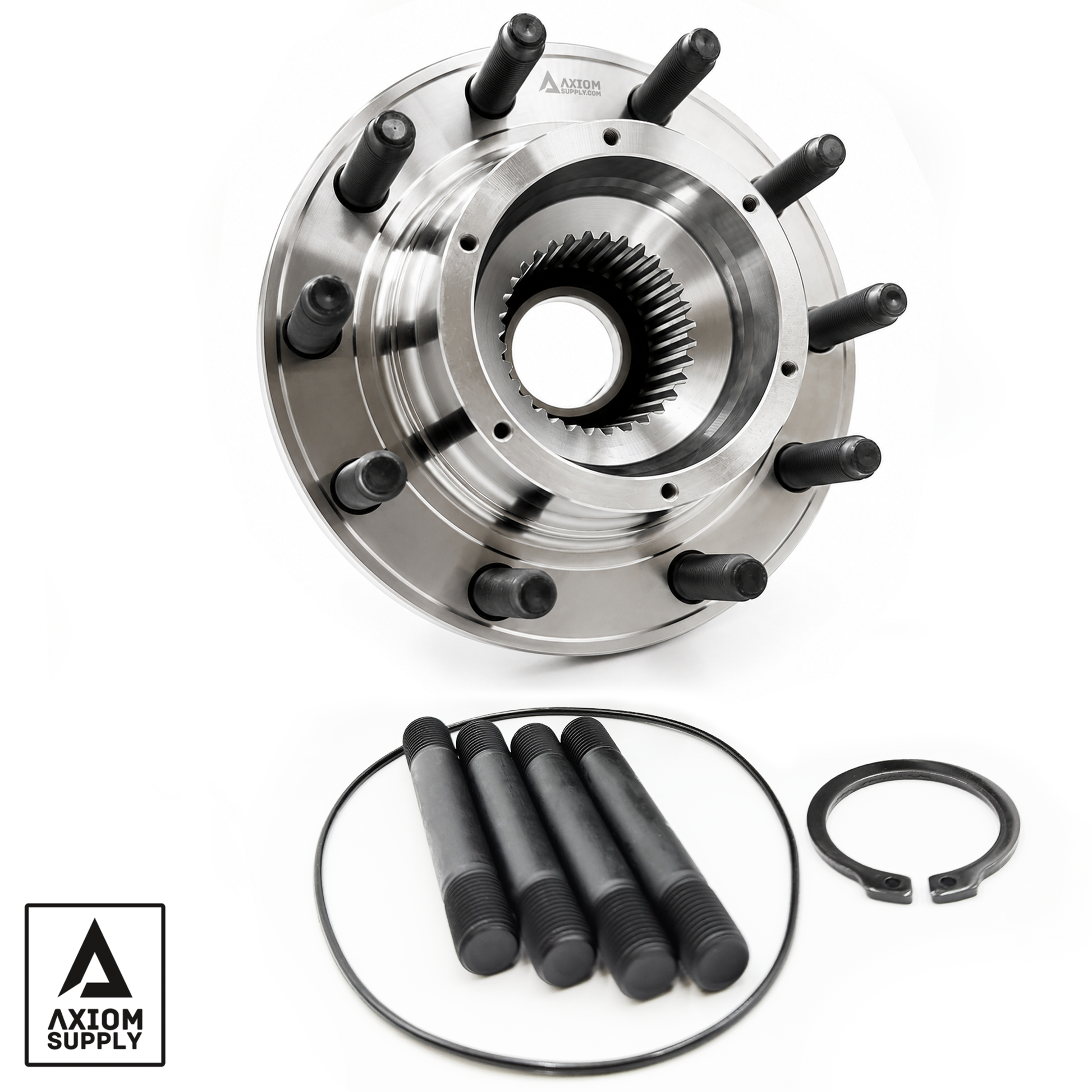

Includes

(1) Wheel Bearing & Hub Assembly with integrated ABS wire and (4) Mounting Bolts (1) O-Ring (1) Retainer Ring

Torque Specifications

Secure the hub nut by tightening it to 21 ft-lbs (28 Nm) while rotating the wheel clockwise. Then, loosen it by 180 degrees. Next, with the brake disc turning, tighten the nut to 17 ft-lbs (2 Nm).

Spindle Bolts(4)- 133 lb.ft

Caliper Bolts(2)- 166 lb.ft

Installation Guide Here

Interchange

Motorcraft HC3Z-1104-F, Moog 515184, Motorcraft HUB-347, SKF BR930962, BCA / NTN WE61853, Mevotech Supreme MB40330, Timken HA590246, Axiom AX515184
