Axiom Supply Lifetime Warranty Wheel Bearing Assembly Ford F250-F350 4WD 1999-2004 (Coarse Thread)

Fitment

This wheel bearing assembly is designed to fit a range of vehicles including Ford Super Duty Pick Up F250-F350 4WD 1999-2004 With Coarse Thread wheel Studs. and Excursion 2000-2005.

Important Fitment Note:

Engineered specifically for Ford Super Duty Trucks 1999-2004 and Excursion 2000-2005 with Coarse Thread Stud ONLY.

Features

Precision Tapered Roller Bearings – Engineered with high-performance grease for smooth, maintenance-free operation.

Premium Hardware – Grade 10.9 cold-formed, zinc-plated studs deliver exceptional tensile strength and corrosion protection.

Durable ABS Sensor – Built to maintain accurate signal transmission in heat, mud, and moisture.

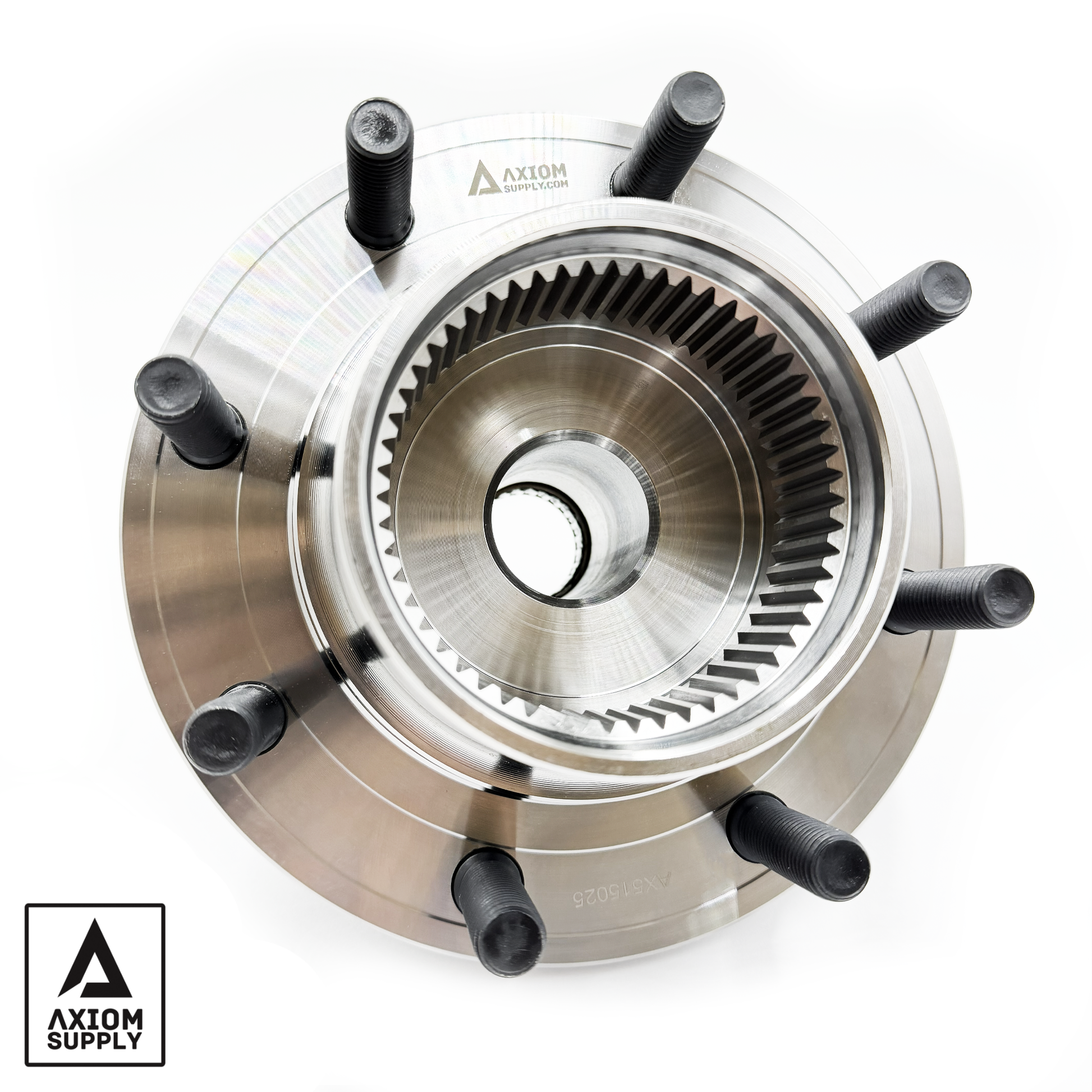

Configuration – 8 × M14-2.00 Coarse Thread lug studs.

Description

The Axiom Supply Bearing Assembly is built for professionals who demand reliability from their heavy-duty trucks.

Developed with a proprietary bearing and hub structure, this assembly reduces hub-face deflection under load—ensuring tighter steering response, improved braking stability, and enhanced durability even under the stress of towing, oversized tires, or lifted suspension setups.

Each assembly comes as a complete bolt-in unit, compatible with both left and right spindles. Installation typically takes about 2 hours and requires no special modifications.

Whether your truck works hard on the job site or conquers rough terrain on weekends, Axiom Supply bearing assemblies deliver the strength, precision, and longevity serious truck owners rely on.

Includes

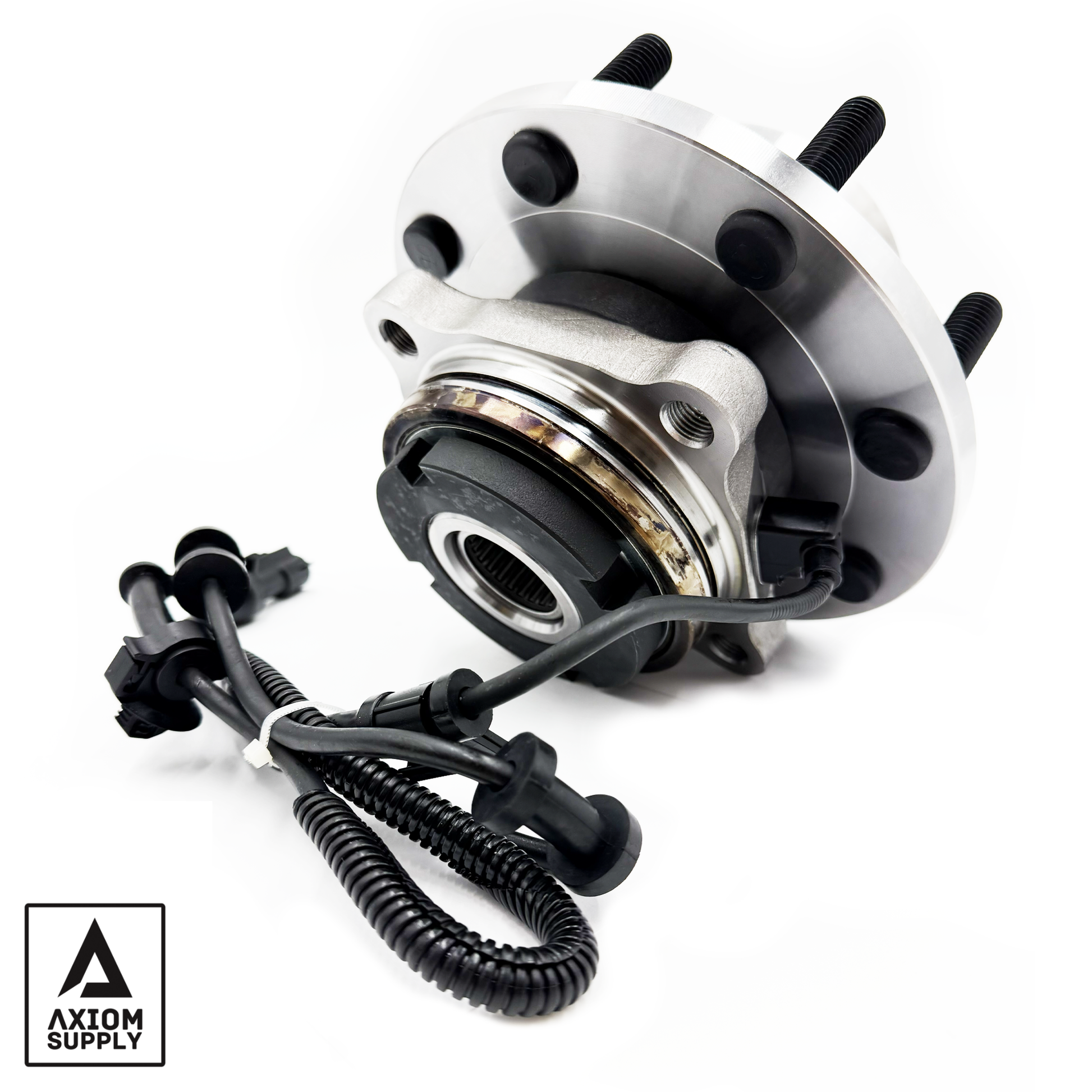

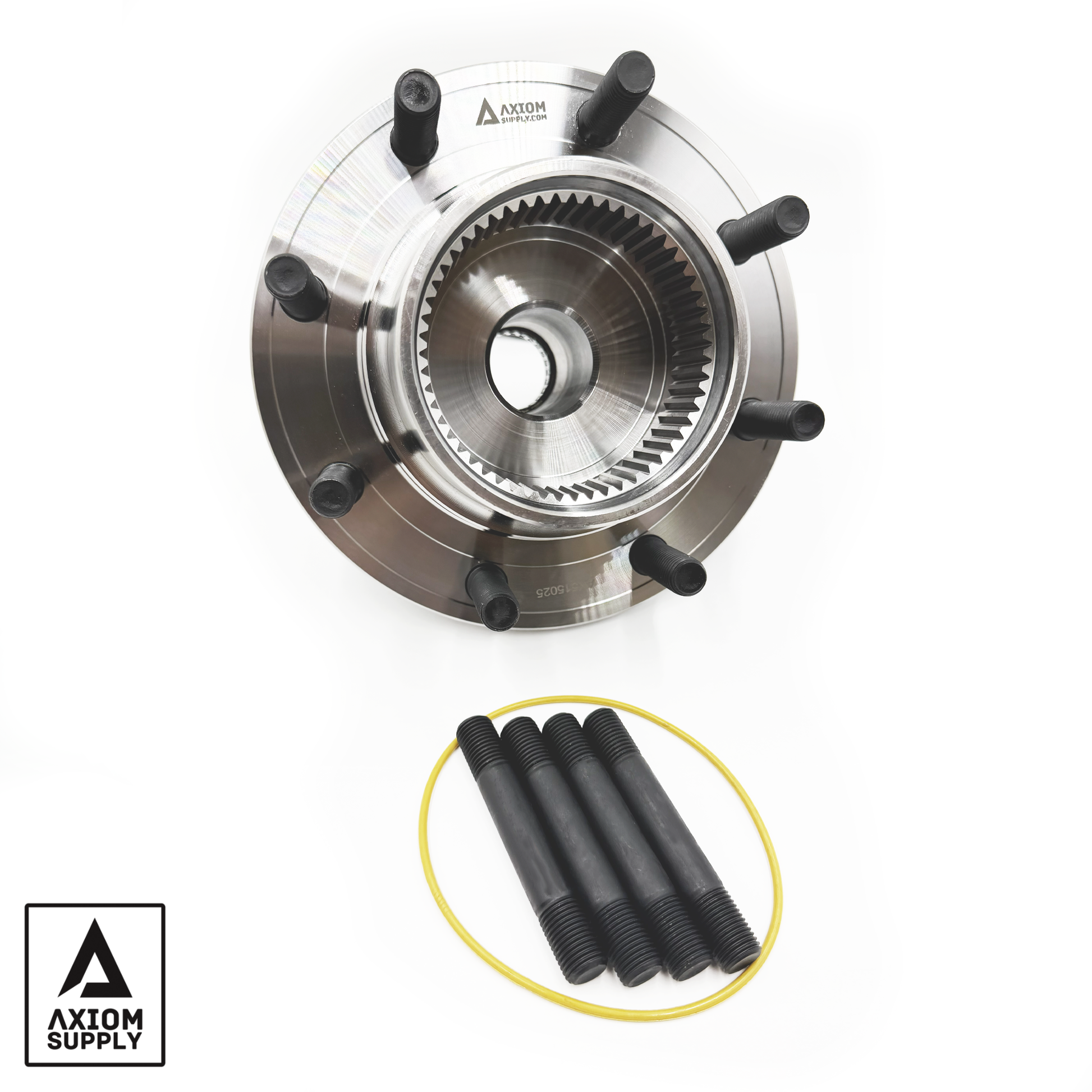

(1) Wheel Bearing & Hub Assembly with integrated ABS wire and (4) Mounting Bolts, and 1 O-ring

Torque Specifications

Apply an initial torque of 30 ft-lbs (40 Nm) to the hub nut while rotating the wheel, then loosen by two full turns. Next, rotate the brake disc and tighten the nut to between 17 and 24 ft-lbs (22–34 Nm). Afterward, turn the nut counterclockwise 175 degrees, and finally, secure it at 17 ft-lbs (2 Nm).

Spindle Bolts(4)- 133 lb.ft

Caliper Bolts(2)- 166 lb.ft

Interchange

Timken 515025, Doc's DH515025, Autopart International 1411-49139, BCA WE61326, Centric Parts 40265017, Durago 29515025, FAG US 102003, GMB 725-0090, GSP 116025, Mevotech H515057, Moog Hub Assemblies 515025, Motorcraft PT515025, NAPA PBR930425, SKF BR930425, Axiom AX515025

The Axiom No-Nonsense Lifetime Warranty

Our suspension and steering components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.

Push it to the limit—we don’t care.
If the part lets you down, we will make it up to you!
