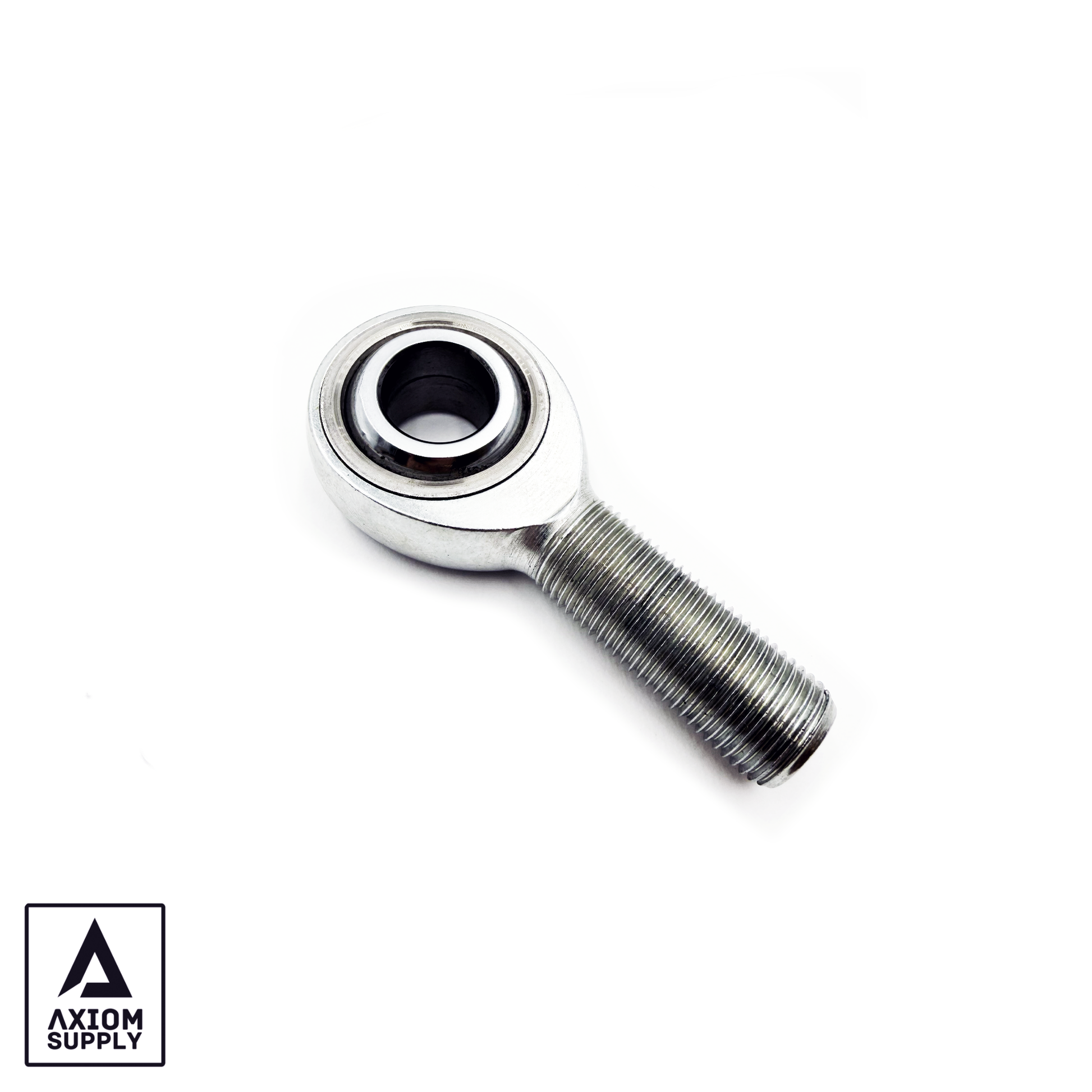

Axiom Supply Replacement Heavy Duty Heim Joint for UTV (SINGLE)

Axiom Supply Rod Ends – Fitment & Specifications

Product Listings

Part# JMX10T-F1
Fits: Axiom Supply and many other brand Tie Rod and Radius Rod Systems
• Right Hand Thread
• 5/8" Shank
• 5/8" Bore

Part# JMXL10T-F1
Fits: Axiom Supply and many other brand Tie Rod and Radius Rod Systems
• Left Hand Thread
• 5/8" Shank
• 5/8" Bore

Part# JMXR10-12T-F1
Fits: Axiom Supply and many other brand Tie Rod and Radius Rod Systems
• Right Hand Thread
• 3/4" Shank
• 5/8" Bore

Part# JMXL10-12T-F1
Fits: Axiom Supply and many other brand Tie Rod and Radius Rod Systems
• Left Hand Thread
• 3/4" Shank
• 5/8" Bore

Part# JMXR12T-F1
Fits: Custom application, suspension linkage, tie rod and radius rod systems
• Right Hand Thread
• 3/4" Shank
• 3/4" Bore

Part# JMXL12T-F1
Fits: Custom application, suspension linkage, tie rod and radius rod systems
• Left Hand Thread
• 3/4" Shank
• 3/4" Bore

SOLD INDIVIDUALLY

Fitment Information

Tie rods and rod ends are sold separately.

These components are not compatible with OEM tie rods.

If you’re unsure about sizing, please contact us for guidance before purchasing.

Product Highlights

Built from premium, high-strength materials for maximum durability and performance.

4130 Aircraft-Grade Chromoly Steel housing for exceptional strength.

Kevlar-reinforced Teflon liner for smooth operation and reduced friction.

Zinc plating provides superior protection against corrosion.

Center ball crafted from 52100 bearing steel — heat treated, hard chromed, and precision ground for long service life.

These rod ends are wear items and should be inspected and replaced as needed.
Choose the appropriate thread direction and size above.

Axiom Supply JMX/JMXL Series Rod Ends

The Axiom Supply JMX/JMXL Series three-piece rod ends are engineered for strength, precision, and reliability.

Bodies and races are heat-treated, zinc plated, and chromate finished for enhanced durability.

The ball is hard chrome plated 52100 steel, offering excellent wear resistance and smooth articulation.

Available with right-hand (JMX) and left-hand (JMXL) threads in multiple size options to suit a variety of suspension setups.
