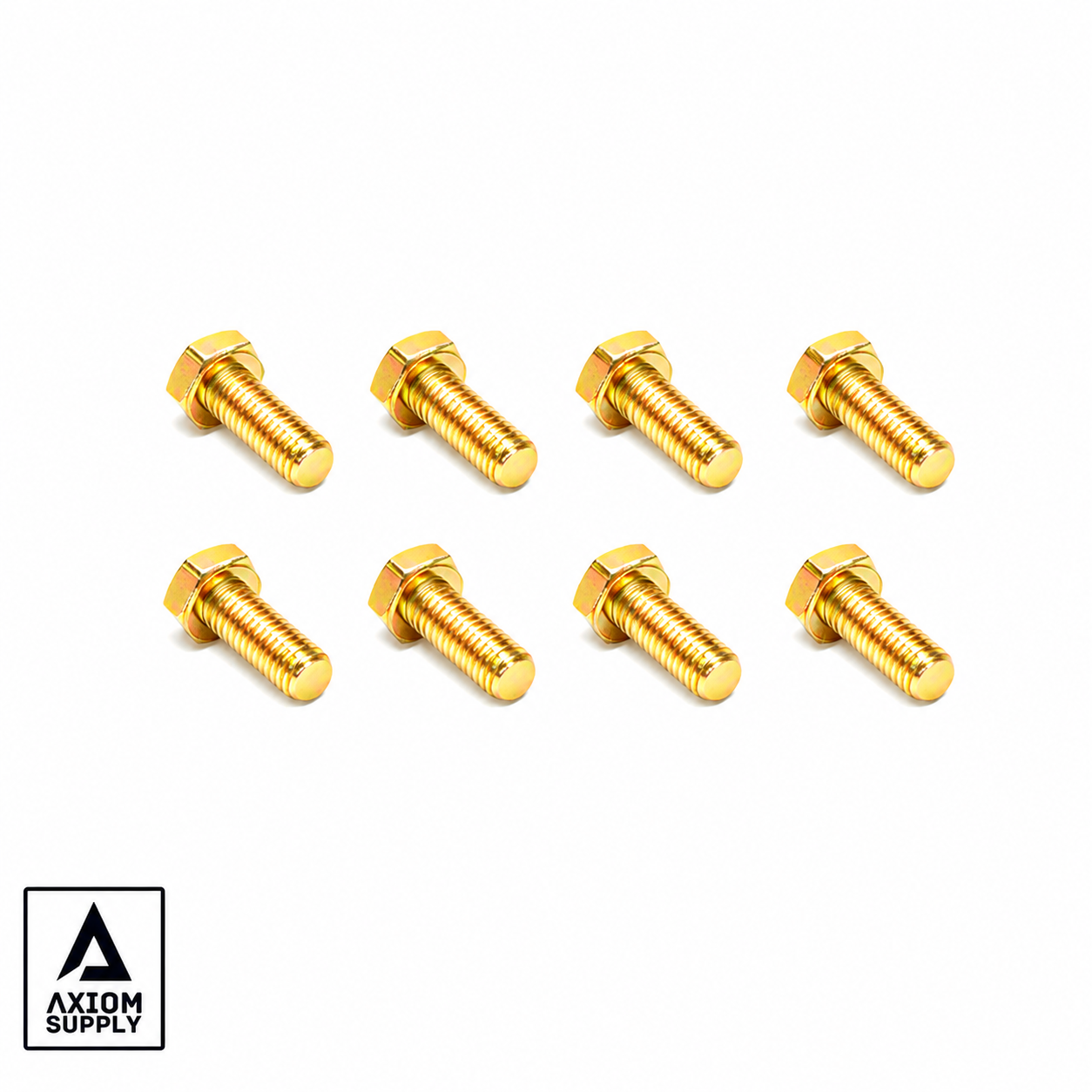

Axiom Supply CV Axle Flange Bolt Set (8) GM Truck 2500 / 3500 Silverado / Sierra 2011 - 2026

Features:

• Grade 10.9 Strength Rating: Designed to handle high torque and constant rotational stress.
• Zinc-Plated Finish: Provides corrosion resistance and long-term durability.
• Factory-Length Design: Ensures proper engagement and fitment with OEM CV axle flanges.
• High Torque Capability: Engineered for 58 lb-ft installation torque.

Fitment:

2001–2007 Silverado / Sierra 1500 HD
2001–2026 Silverado / Sierra 2500HD
2001–2026 Silverado / Sierra 3500
2002–2006 Avalanche 2500
1985–2011 Suburban 2500
2001–2013 Yukon XL 2500 / Yukon 2500
2003–2007 Hummer H2

6 per side on 1985 - 2010 GM Trucks and 8 per side on 2011+ GM Trucks

Description:

The Axiom Supply CV Axle Flange Bolt is a critical fastener designed to secure your CV axle to the differential flange under extreme load and constant drivetrain stress. These bolts are torque-to-spec hardware, tightened to 58 lb-ft, and are not components you want to reuse once removed.

Factory bolts stretch, fatigue, and corrode over time—especially on trucks and UTVs that see hard use. Installing a new axle with old hardware is a gamble. That’s why Axiom Supply always recommends replacing flange bolts during any CV axle service. Fresh hardware ensures proper clamping force, torque retention, and long-term reliability.

Each bolt features a zinc-plated finish to combat corrosion and oxidation, extending service life in harsh environments like mud, snow, road salt, and off-road conditions. This is the right way to finish a CV axle install—no shortcuts.

Includes:

(8) Grade 10.9 Flange Bolts (1 Axle Side)

Things to know/Tech tips

• Torque Specification: 58 lb-ft
• Thread locker recommended during installation
• Factory bolts use 15mm heads
• Replacement bolts feature a 17mm head, which may cause clearance issues with certain lift kits

⚠️ Important:

Not compatible with CV spacer kits

If running a lift kit with tight flange clearance, factory hardware may be required

The Axiom No-Nonsense Lifetime Warranty

Our suspension and steering components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.

Push it to the limit—we don’t care.
If the part lets you down, we will make it up to you!
